Schwinn Crewmaster - Assembly Instructions (Continued); Attach Rail Assembly to Frame; Mount Console Bracket

11

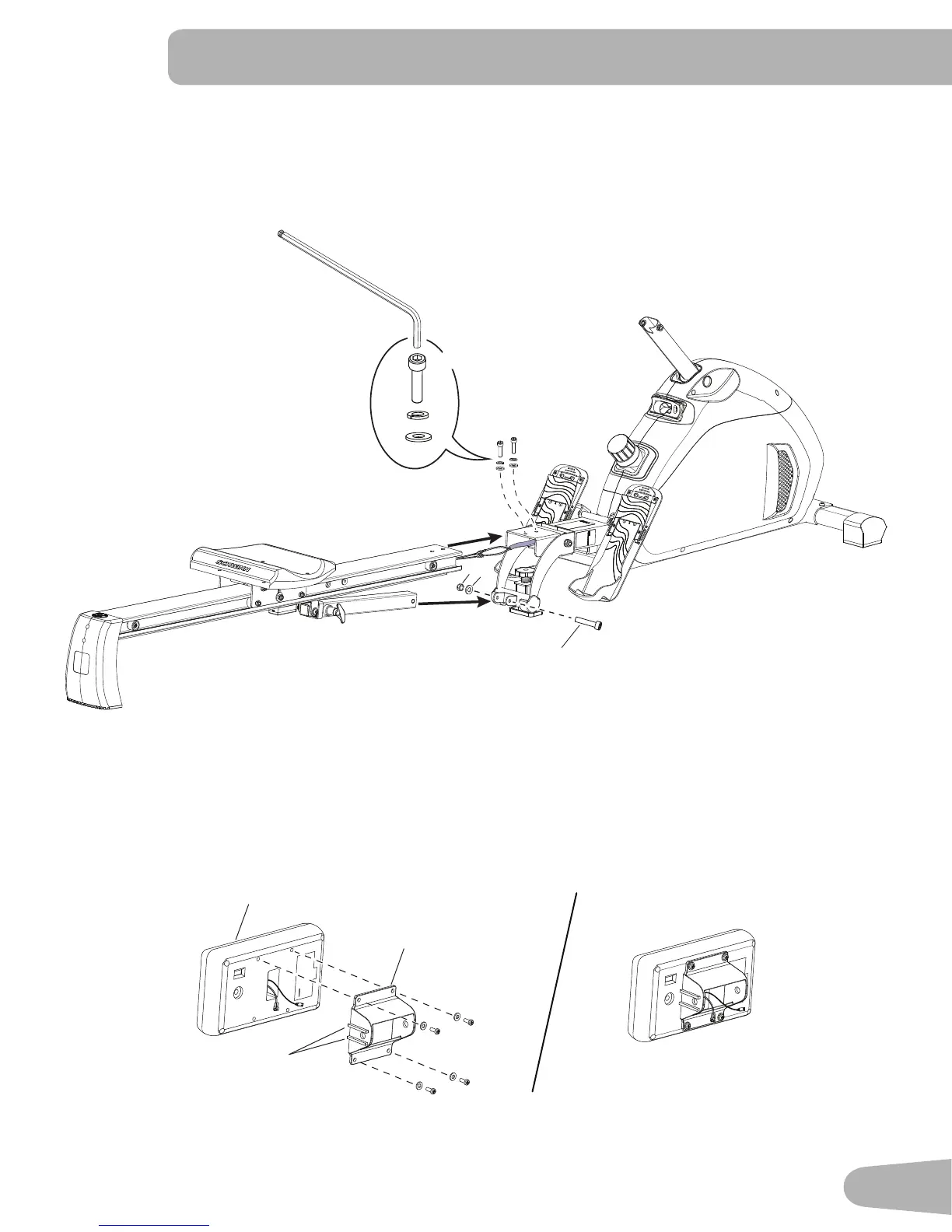

5. Attach Rail Assembly to Frame Assembly
Note: Install the top screws and washers first, then the long screw (A) through the bracket. It may be easier if the Rail
Locking Pin is pulled.
NOTICE: Do not crimp the cables.
6mm
X2
B
E
A
D
F
C
6. Attach Console Bracket to the Console
Note: Remove the pre-installed hardware (*) from the back of the Console, then route the cables through the Console
Bracket. Be sure the 2 ribs (7a) on the Console Bracket are on the right side so that the opening points downward.
NOTICE: Do not crimp the cables.
7a
7
6
