ScienTECH DB15 - Data Sheet

DB14
Scientech Technologies Pvt. Ltd. 10
Data Sheet

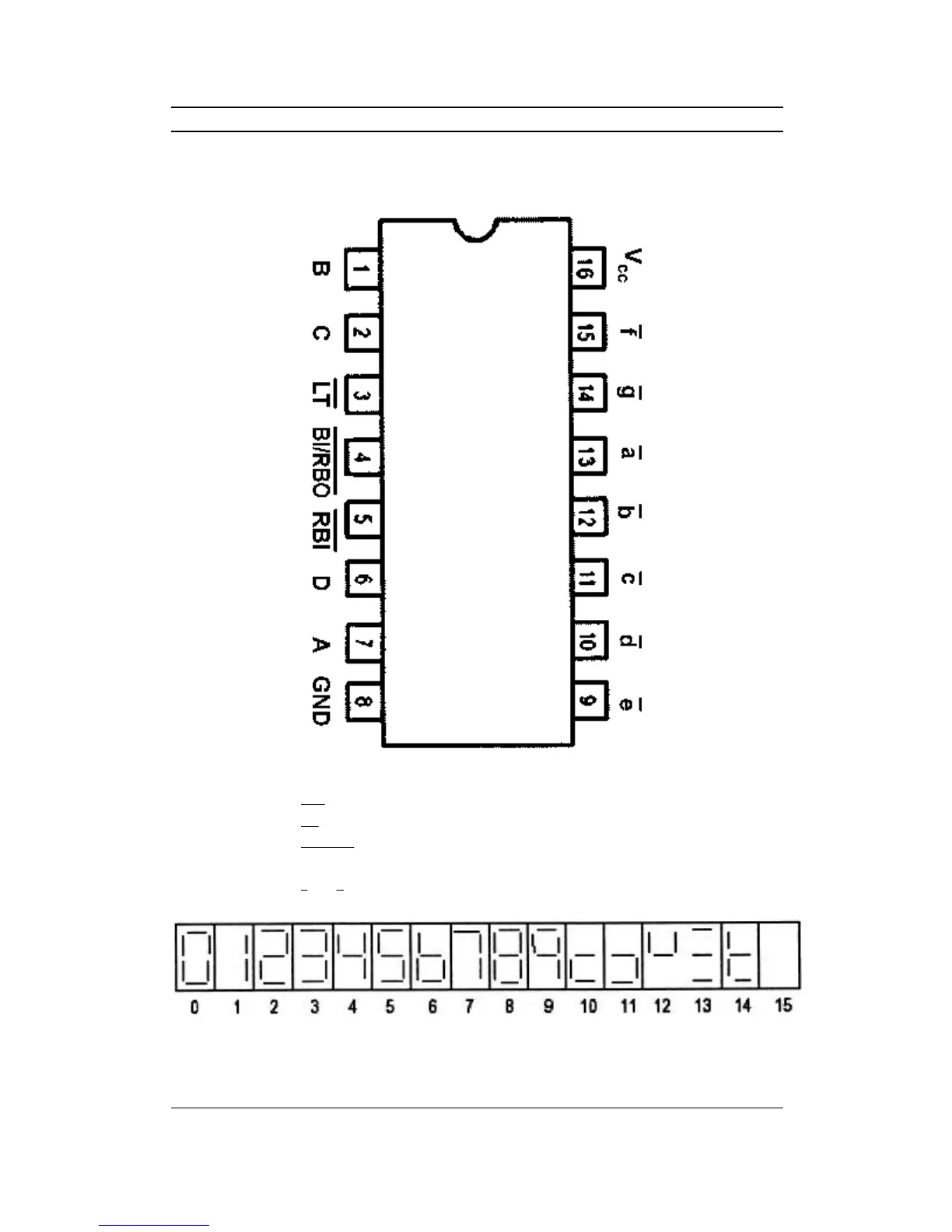

Pinout Diagram (Pin 16 = V
cc
= +5V) :
A, B, C, D BCD Inputs
RBI
Ripple-Blanking Input or
LT
Lamp-Test Input
RBO/BI Blanking Input or
Ripple-Blanking Output
a to g Outputs
Numerical Designations – Resultant Displays
