IT IS ESSENTIAL TO MAKE SURE THAT THE INCOMING
VOLTAGE IS THE SAME AS THE RATED VOLTAGE OF
THE OF THE UNIT AS FOUND ON THE SERIAL PLATE.
THE SERIAL PLATE IS LOCATED AT THE REAR OF THE
UNIT ADJACENT TO THE INCOMING CABLE ENTRY.
ELECTRICAL CONNECTION INFORMATION
THE CONTROL COMPARTMENT OF THIS UNIT CON-
TAINS DANGEROUS VOLTAGES. MAINTENANCE AND
SERVICING REQUIRING THE REMOVAL OF ANY PAN-
ELS OR COVERS SHOULD BE DONE BY QUALIFIED
SERVICE PERSONNEL ONLY.
MODEL DESCRIPTION VOLTS
(V/Hz)
POWER
(WATTS)
401 6 STATION STEAM BATH 230/50 2000
402 12 STATION STEAM BATH 230/50 2000

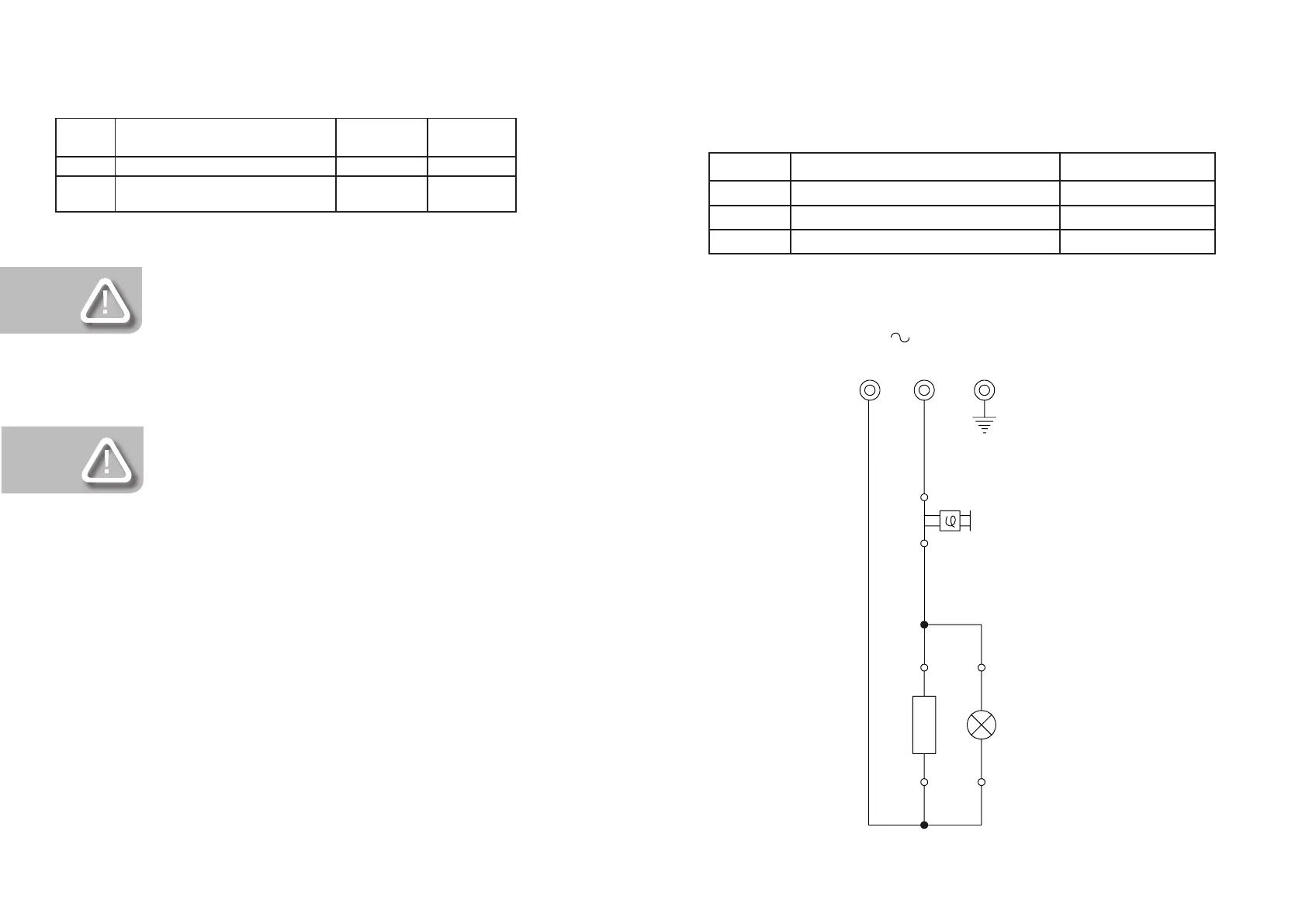

WIRING DIAGRAM
MODEL: STEAM BATH
MODEL CODE: 401/402
LEGEND DESCRIPTION PART NUMBER
B1 CONTROL THERMOSTAT 1-THERM-URB0012
H1 PILOT LIGHT 1-PL-GP
E1/E2 ELEMENT 1000W/230V 5-2000W-401
230V
E1
E
L
N
5-2000W-401
1-THERM-URB0012
1-PL-GP
PILOT LIGHT
ELEMENT 2300W/230V
SAFETY THERMOSTAT
H1
E1
B1
PART NUMBER
DESCRIPTION
LEGEND
B1
H1
WIRING DIAGRAM
MODEL CODE: STEAM BATH
CODE: 401/402
DATE
SIGN
PROD ELEC
DIR
DWG ADMIN
DEPARTMENT
REV-10/11/2008
