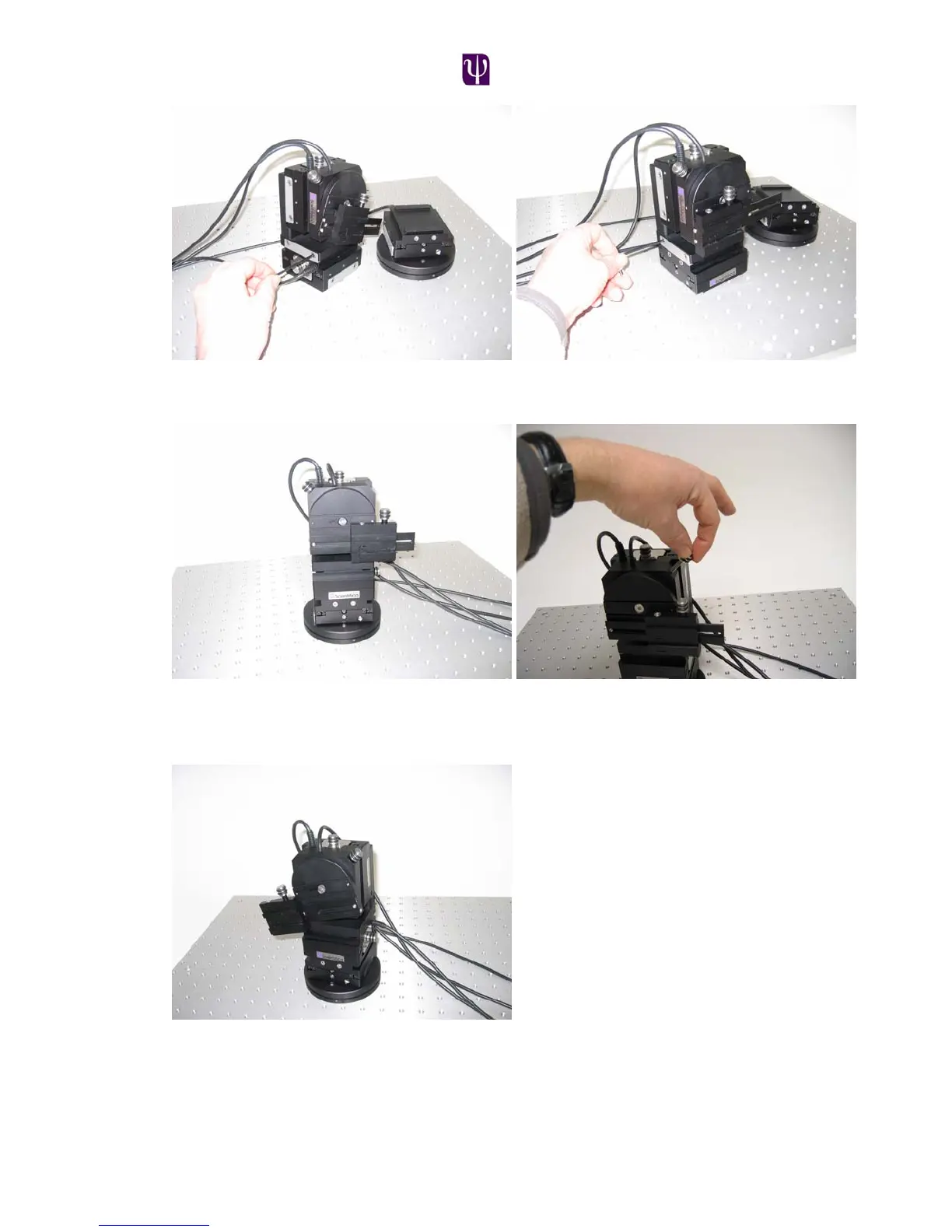

Now slide the X / Z assembly back onto the Y axis. The vertical rotation stage
locking knob can be located into the left hand side position.
Finally, the head stage slide can be set to project on the left side of the
manipulator. This is achieved by loosening the two button headed screws using a
2mm allen key and sliding the dovetail to the required position.
