SCIFIT PRO2 - Assembly; Frame Mounting

ASSEMBLY
6
Left Hand
Crank Handle
Right Hand
Crank Handle

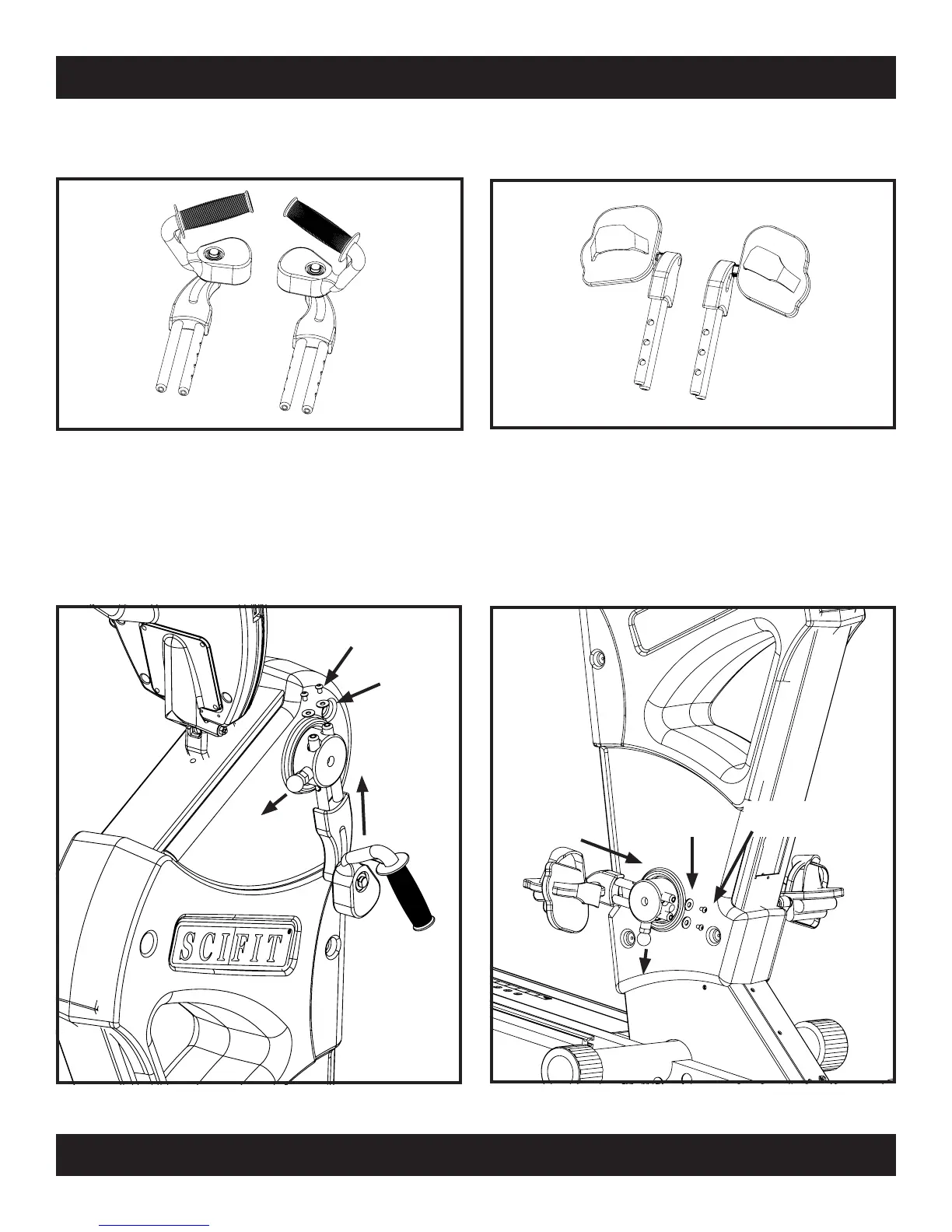

Assemble Hand Crank Handles to Hubs
Identify Left and Right Hand Cr
ank Handles
(A) Insert parallel rods through bearing holes of hub.
(B) Pull yellow crank arm locking pin out and push
rods through until end of rod protrudes from farside.
(C) To prevent unwanted dropping of crank arm when
adjusting crank arm positions, install a 1/4-20 x 1/2”
socket button head screw and 1/4” washer into the
end of each rod.
1/4-20 x 1/2”
SBH Screw
1/4”
Washer
(A)
(B)
(C)
Assemble Foot Crank Pedals to Hubs(PRO2 Only)
Identify Left and Right Foot Crank Pedals
Left Foot
Crank Pedal
Right Foot
Crank Pedal
(A) Insert parallel rods through bearing holes of hub.
(B) Pull yellow crank arm locking pin out and push
rods through until end of rod protrudes from farside.
(C) To prevent unwanted dropping of crank arm when
adjusting crank arm positions, install a 1/4-20 x 1/2”
socket button head screw and 1/4” washer into the
end of each rod.
1/4-20 x 1/2”
SBH Screw
(C)
1/4”
Washer
(A)
(B)
