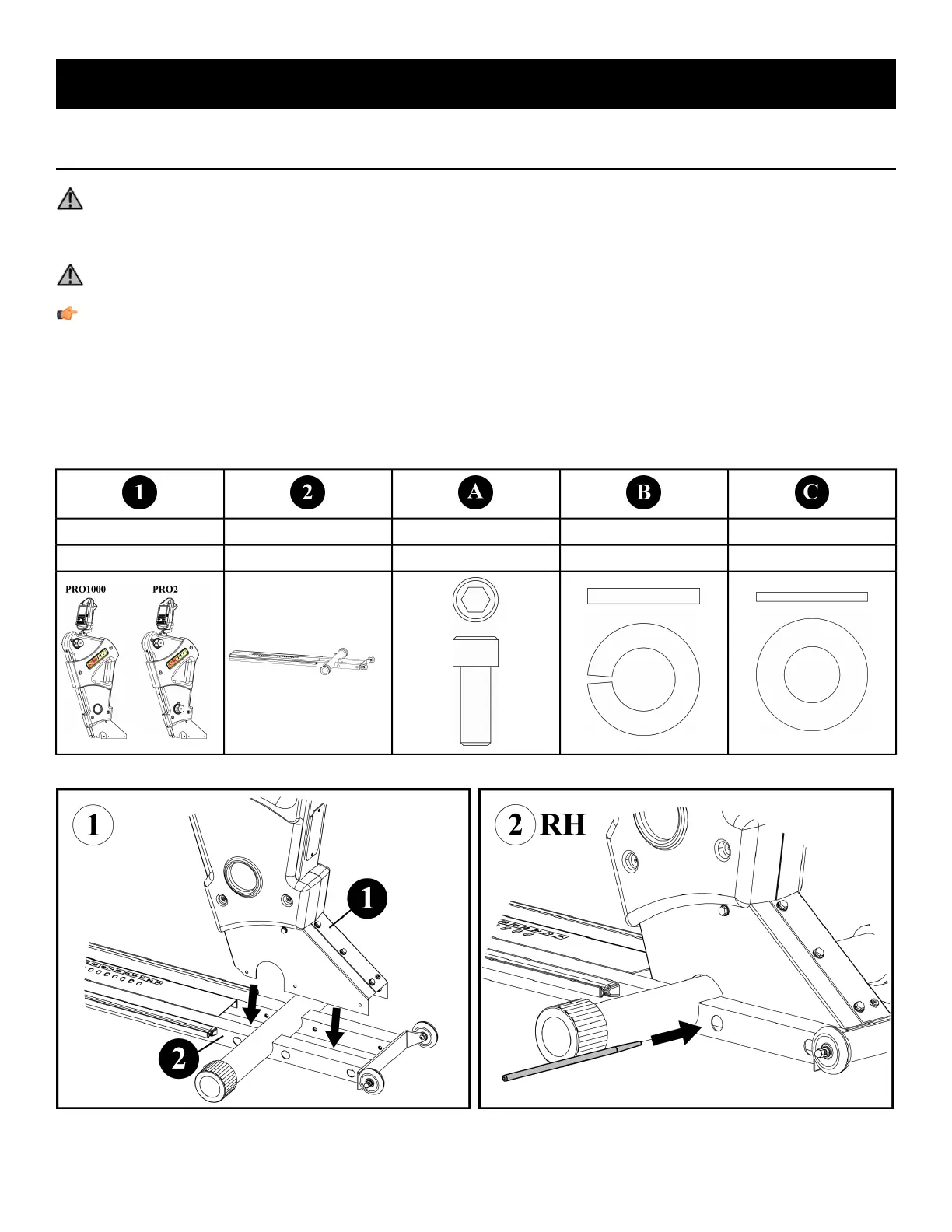

Assembly
Main Body and Base Frame Assembly
Attention: The main body and base frame assembly should be done without the seat assembly mounted on the unit for easier
handling, bodily injury prevention and damage to the frame. This section only explains the assembly of the main body and base
frame.
Warning: TWO PEOPLE REQUIRED
Note: The following main body to base frame assembly instructions will be the same for both PRO2 and PRO1000 models.
Images shown are the PRO1000 for clarity.
Tools Required:
• 12" (30.5cm) Ratchet Extension• Torque Wrench set at 48 ft-lbs (65Nm)
• •12" (30.5cm) Center Punch 5/16" (8mm) Allen hex Bit
Components and Hardware
Washer, Flat, 3/8"Washer, Split, 3/8"Screw, Socket, 3/8" x 1"Base FrameMain Body
Qty. 6Qty. 6Qty. 6Qty. 1Qty. 1
