SCIFIT REX7000-BR - Install Console Unit

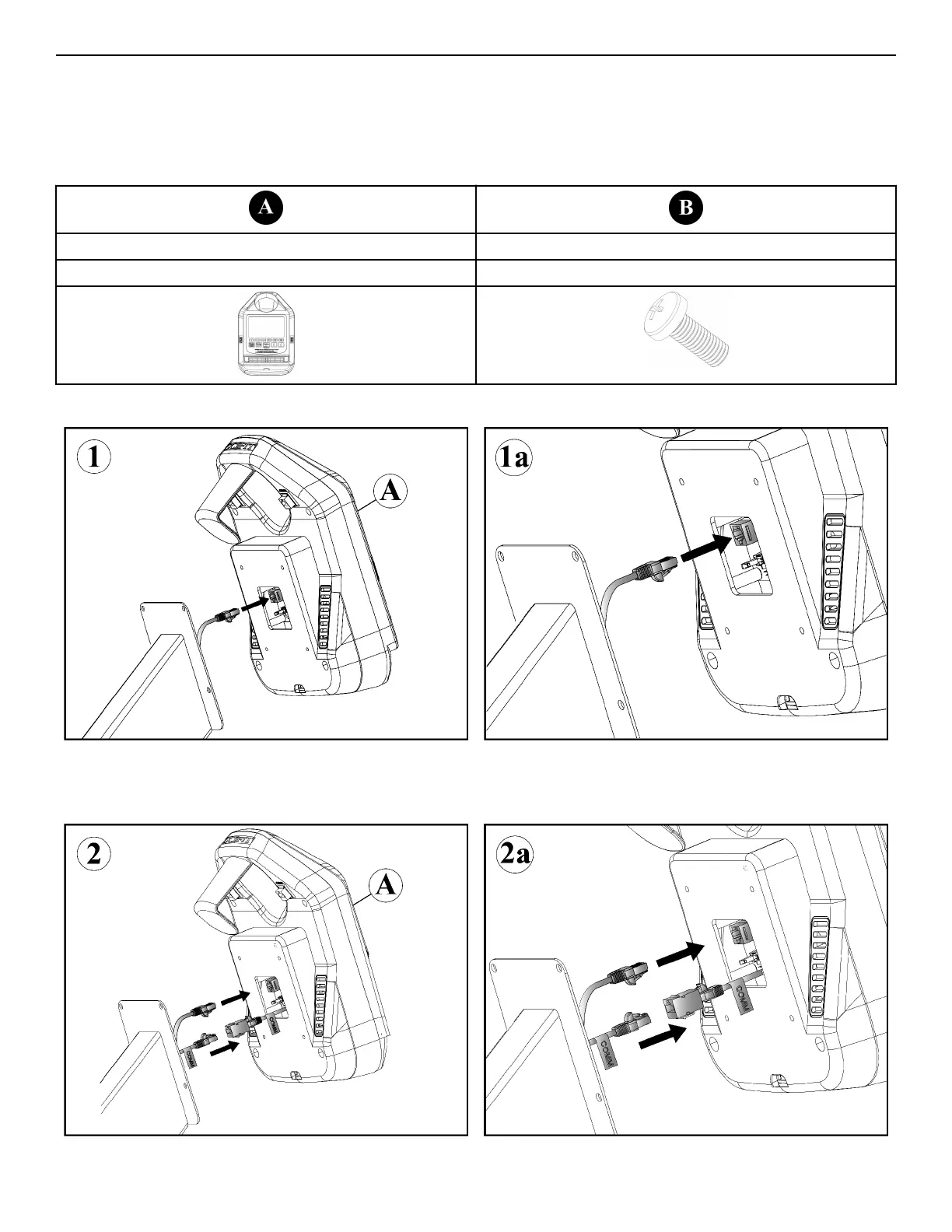

Attaching The Console
NOTE: The console received is model dependent. The following is how to attach either a Standard or HUR-ERGOLINE console.
Tools Required:
• Phillips Screw Driver
Hardware
Standard or HUR/ERGO console Screw, M5 x 12mm Phillips HD
Qty. 1 Qty. 4
Standard console
HUR/ERGO console
NOTE: HUR/ERGO communication cables from the machine and console will be labeled "COMM".Connect these together.
