ASSEMBLY
S Solutions for Fi FIT S Solutions for Fi SCI FI T
5

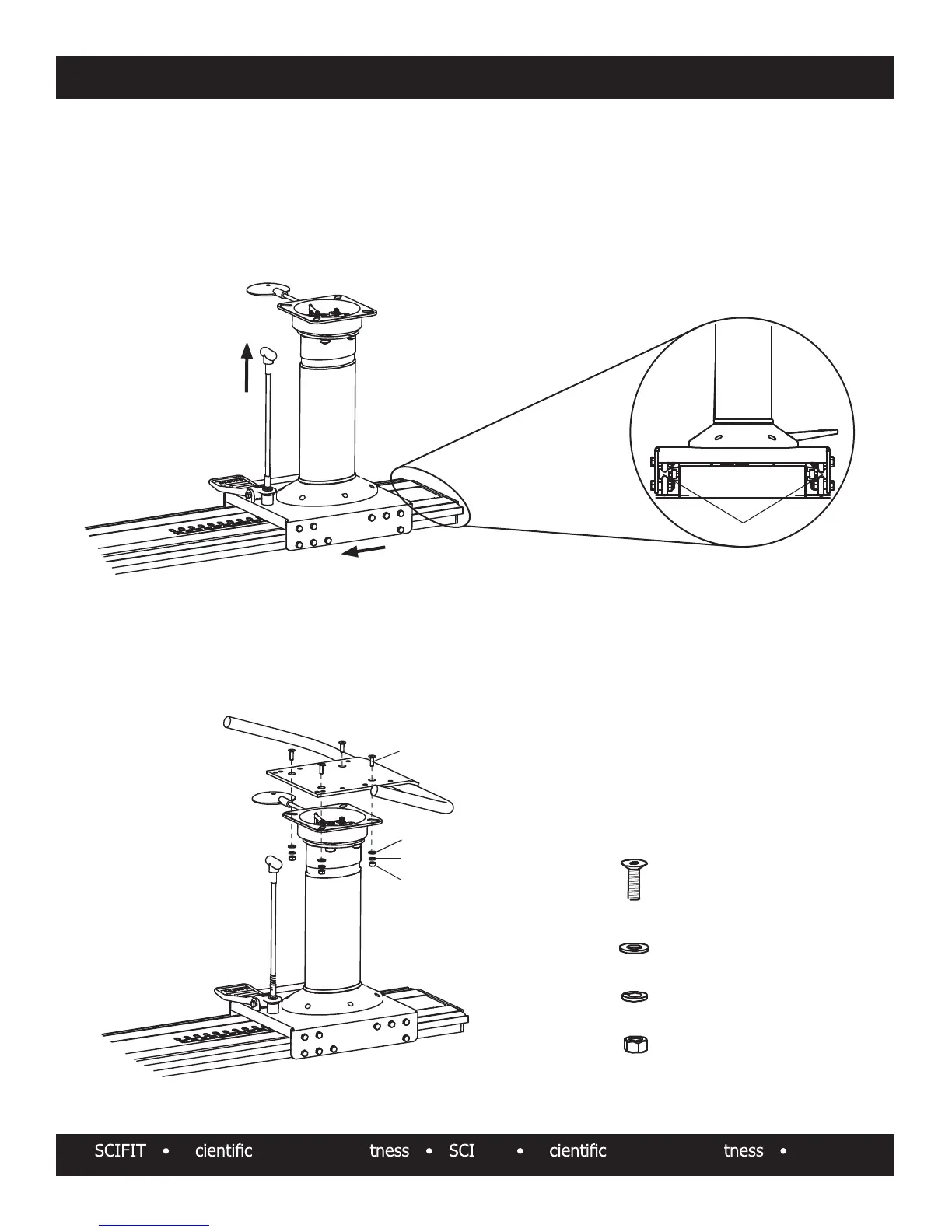

SWIVEL SEAT ASSEMBLY
Tools Required:
Step 1:
Pull upward the yellow T-handle of the seat adjustment lever, then lift and slide the seat post onto
the frame track making sure the roller guide rail is between the top and bottom wheels of the base.
3/16 Hex wrench
1/2” Wrench or socket
Roller guide
Step 2:
Attach the handlebar plate to the seat post with (Qty. 4) items #1, #2,
#3 and #4 as shown on the drawing below.
Item #1 (x 4)
5/16-18 x 1 Socket Flat Head
Screw
Item #2 (x 4)
5/16 Flat Washer
Item #3 (x 4)
5/16 Split Washer
Item #4 (x 4)
5/16 Nut
# 1
# 2
# 3
# 4
