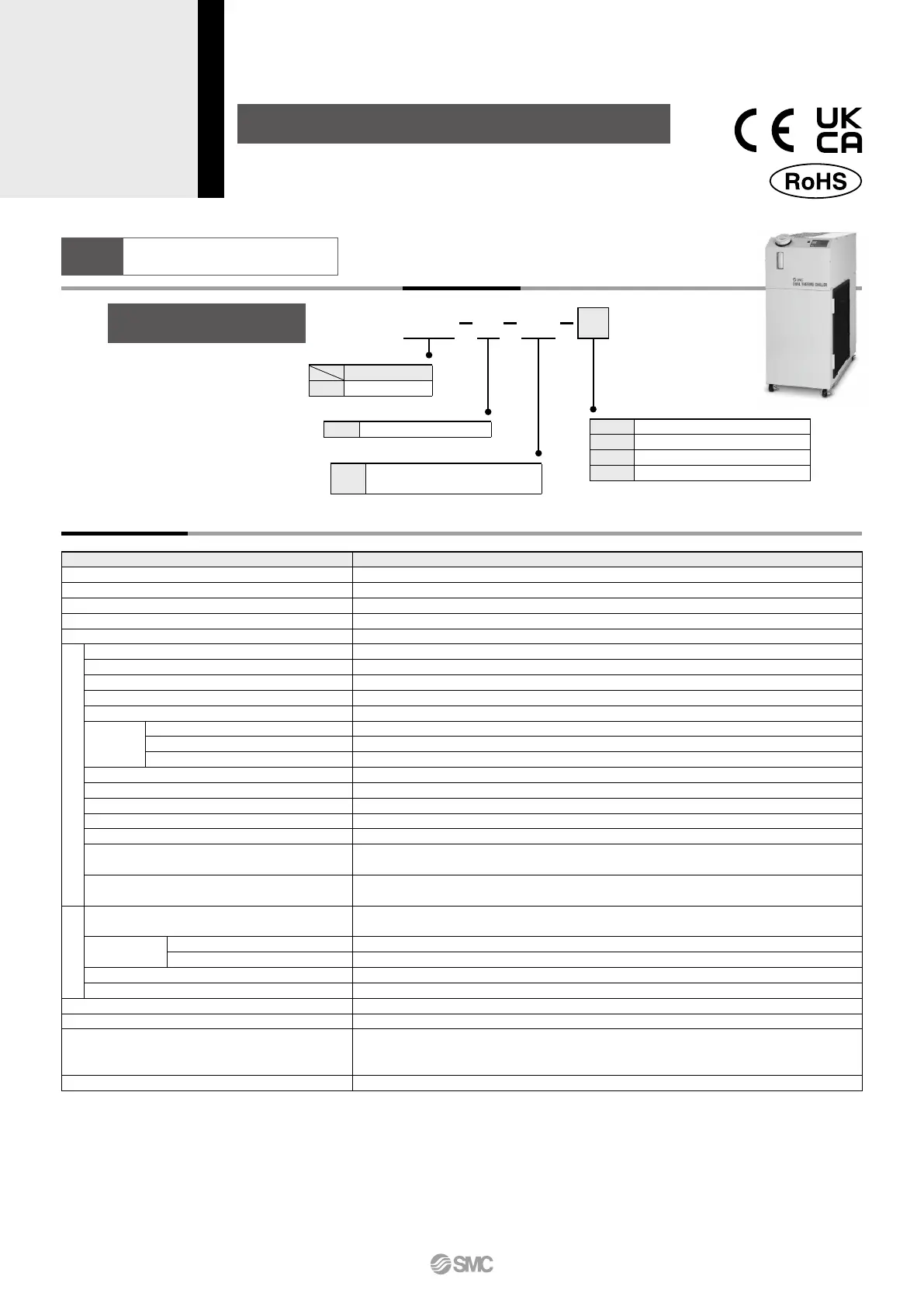

How to Order
Specifications
Thermo-chiller
Compact Dual/Basic Type for Lasers
HRLE Series
HRLE A 20
Power supply
20
3-phase 200 VAC (50 Hz)
3-phase 200 to 230 VAC (60 Hz)
Cooling capacity
CH1, 2 total
090
9.5 kW
090
Option
Nil
None
C
With inverter for compressor
M
Deionized water (Pure water) piping
P
With inverter for pump
Model
HRLE090-A-20
Cooling method Air-cooled refrigeration
Refrigerant R410A (HFC)
Refrigerant charge kg 2
Control method PID control
Ambient temperature
°C
2 to 45
Circulating fluid system
Circulating fluid
*
1
Tap water, Deionized (pure) water
Set temperature range
°C
CH1: 15 to 25, CH2: CH1 + 0 to 15
Cooling capacity (CH1, 2 total) 50/60 Hz
*
2,
*
10
kW 8.0/9.5
Heating capacity (CH1, 2 total) 50/60 Hz
*
3
kW 2.0/2.5
Temperature stability
*
4
°C
CH1: ±0.1, CH2: ±0.5
Pump
capacity
Rated flow 50/60 Hz
*
5,
*
11
L/min CH1: 25/35 (0.5 MPa), CH2: 2/2 (0.5 MPa)
Max. flow rate 50/60 Hz
*
11
L/min 55/65
Max. pump head m 50
Settable pressure range (-P) MPa 0.1 to 0.5
Min. operating flow rate 50/60 Hz
*
6
L/min CH1: 25/35 (-P: 15), CH2: 1/1
Tank capacity (CH1, 2 total) L Approx. 18
Circulating fluid outlet, Circulating fluid return port
CH1: Rc1, CH2: Rc1/2
Tank drain port Rc1/4
Fluid contact material
Stainless steel, Copper (Heat exchanger brazing), Bronze (Pump),
Ceramic, Carbon, FKM, PP, PE, POM, PVC, PA, EPDM
Fluid contact material (-M)
Stainless steel (Heat exchanger brazing), SiC, Carbon,
FKM, PP, PE, POM, PVC, PA, EPDM, PTFE
Electrical system
Power supply
3-phase 200 VAC (50 Hz) Allowable voltage range ±10% (No continuous voltage fluctuation)
3-phase 200 to 230 VAC (60 Hz) Allowable voltage range ±10% (No continuous voltage fluctuation)
Earth leakage
breaker (Standard)
Rated current A 30
Sensitivity current mA 30
Rated operating current 50/60 Hz A 14/17
Rated power consumption 50/60 Hz
kW(kVA)
4.3/5.3 (4.9/5.8)
Communication function Contact input/output, Serial communication (RS-485)
Noise level
*
7
dB(A) 65
Accessories
*
8
Operation Manual (for installation/operation) 2 copies (English 1 pc./Japanese 1 pc.),
Anchor bolt fixing brackets 2 pcs.(including four M8 bolts),
Cable accessory (For communication cable)
Weight
*
9,
*
12
kg 140
*1
U
se fluid that fulfills the conditions below as the circulating fluid.
Tap water: Standard of The Japan Refrigeration And Air Conditioning Industry
Association (JRA GL-02-1994)
Deionized (pure) water: Electric conductivity 0.4 μS/cm or higher (Electric resistivity 2.5
MΩ·cm or lower)
*2
q Ambient temperature: 32°C, w Circulating fluid: Tap water, e Circulating fluid temperature:
CH1 20°C/CH2 25°C, r Circulating fluid flow rate: Rated flow, t Power supply: 200 VAC
*3
q Ambient temperature: 32°C, w Circulating fluid: Tap water, e Circulating fluid flow
rate: Rated flow, r Power supply: 200 VAC
*4
q Ambient temperature: 32°C, w Circulating fluid: Tap water, e Circulating fluid
temperature: CH1 20°C/CH2 25°C, r Circulating fluid flow rate: Rated flow, t Power
supply: 200 VAC, y Piping length: Shortest, u Load: Same as the cooling capacity
*5
Circulating fluid temperature: CH1: 20°C/CH2: 25°C at the device outlet.
*6
Fluid flow rate to maintain the cooling capacity. If the actual flow rate is lower than this,
install a bypass piping.
*7
Front 1 m/Height 1 m.
*8
The anchor bolt fixing brackets (including four M8 bolts) are used for fixing to wooden
skids when packaging the thermo-chiller. No anchor bolt is included.
*9
Weight when the circulating fluid is not included.
*10
The capacity is 60 Hz even in the 50 Hz area when option C is selected.
*11
The capacity is 60 Hz even in the 50 Hz area when option P is selected.
*12
The weight will increase by 4 kg when option C and P is selected.
Cooling method
A
Air-cooled refrigeration
3-phase 200 VAC (50 Hz)
3-phase 200 to 230 VAC (60 Hz)
Power
supply
Air-cooled refrigeration
¡
When multiple options are combined, indicate
the symbols in alphabetical order.
Air-cooled refrigeration
9
A
