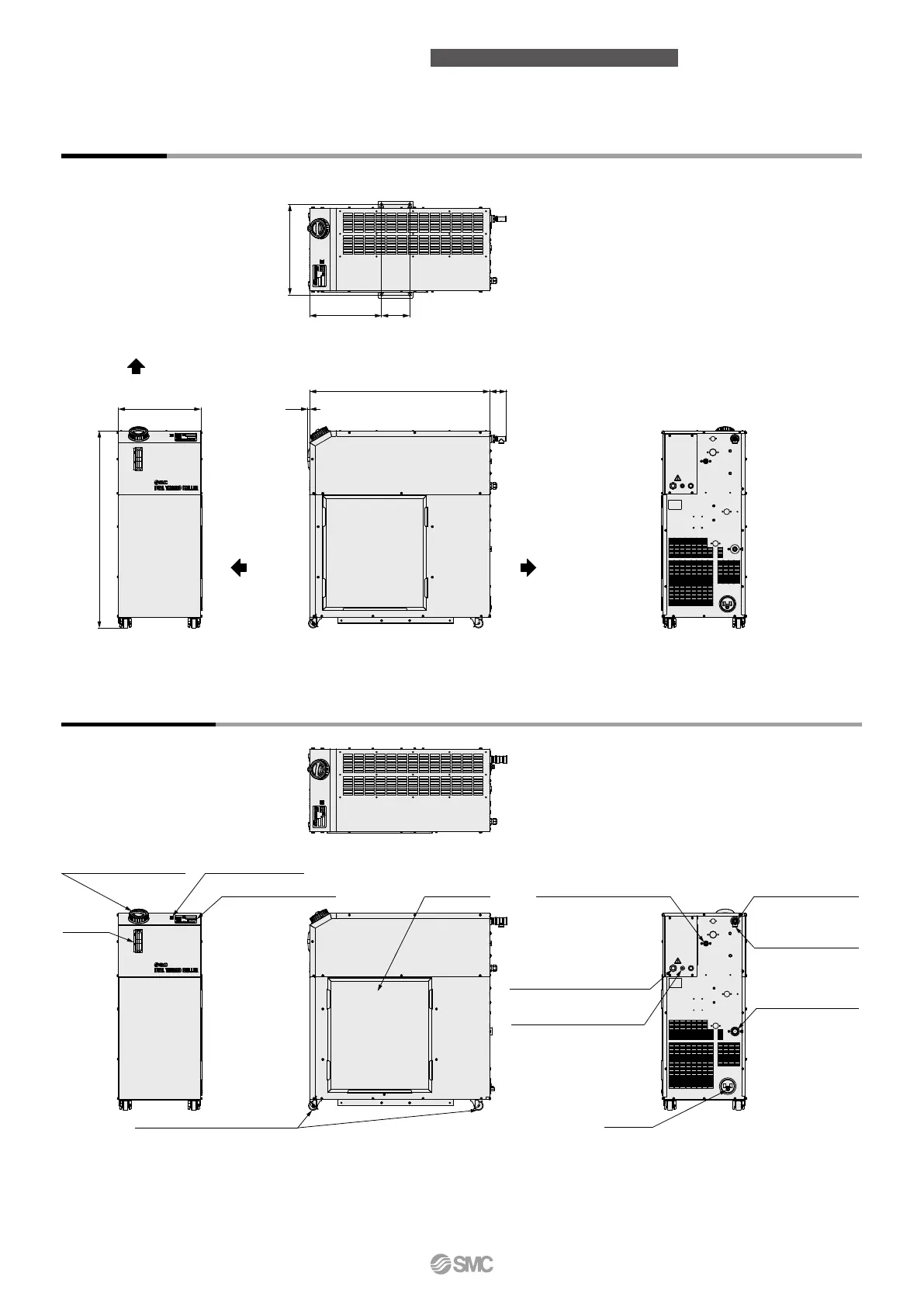

SCM HRLE090 - Dimensions; Parts Description

Ventilation air inlet
Ventilation air outlet
Anchor bolt mounting position
Ventilation air outlet
Dustproof filter Circulating fluid outlet (CH2)
Rc1/2
Circulating fluid outlet
(CH1)
Rc1/2
Circulating fluid return
port (CH2)
Rc1/2
C
irculating fluid return
port (CH1)
Rc1/2
Caster (unfixed) with locking lever
Circulating fluid fill port lid
Fluid level
indicator
Power supply switch
Operation display panel
Power cable entry
Applicable wire total: ø14.5 to 18.5
Communication cable entry
Applicable wire total: ø6.5 to 10.5
Drain port
Rc1/4
965 90
10445
1055
484
385 150
HRLE050-A-20
Dimensions
Parts Description
13-3
Thermo-chiller
Compact Dual/Basic Type for Lasers
HRLE Series
A
