Anchor bolt mounting position
Circulating fluid fill port lid
Fluid level
indicator
Power supply switch
Operation display panel
Caster (unfixed) with locking lever
Circulating fluid outlet (CH2)
Rc1/2
Power cable entry
Applicable wire total: ø14.5 to 18.5
Communication cable entry
Applicable wire total: ø6.5 to 10.5
Facility water inlet
Rc1/2
Drain port
Rc1/4
Circulating fluid return
port (CH1)
Rc1/2
Circulating fluid return
port (CH2)
Rc1/2
Facility water outlet
Rc1/2
Circulating fluid outlet
(CH1)
Rc1/2
484
385 150
965 90
445
1055
10
HRLE050-W-20

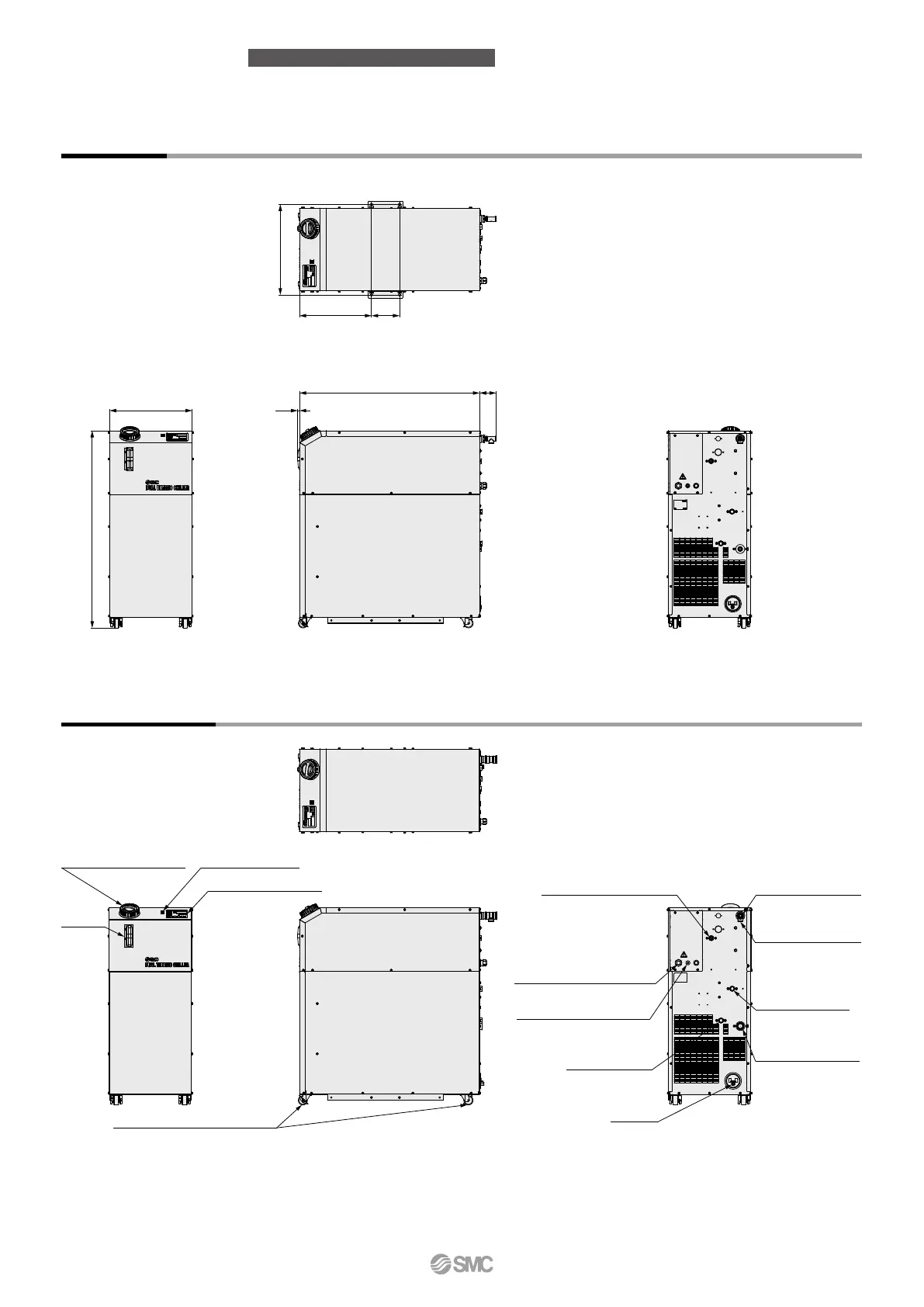

Dimensions
Parts Description
13-4
HRLE Series
Compact Dual/Basic Type for Lasers
A
