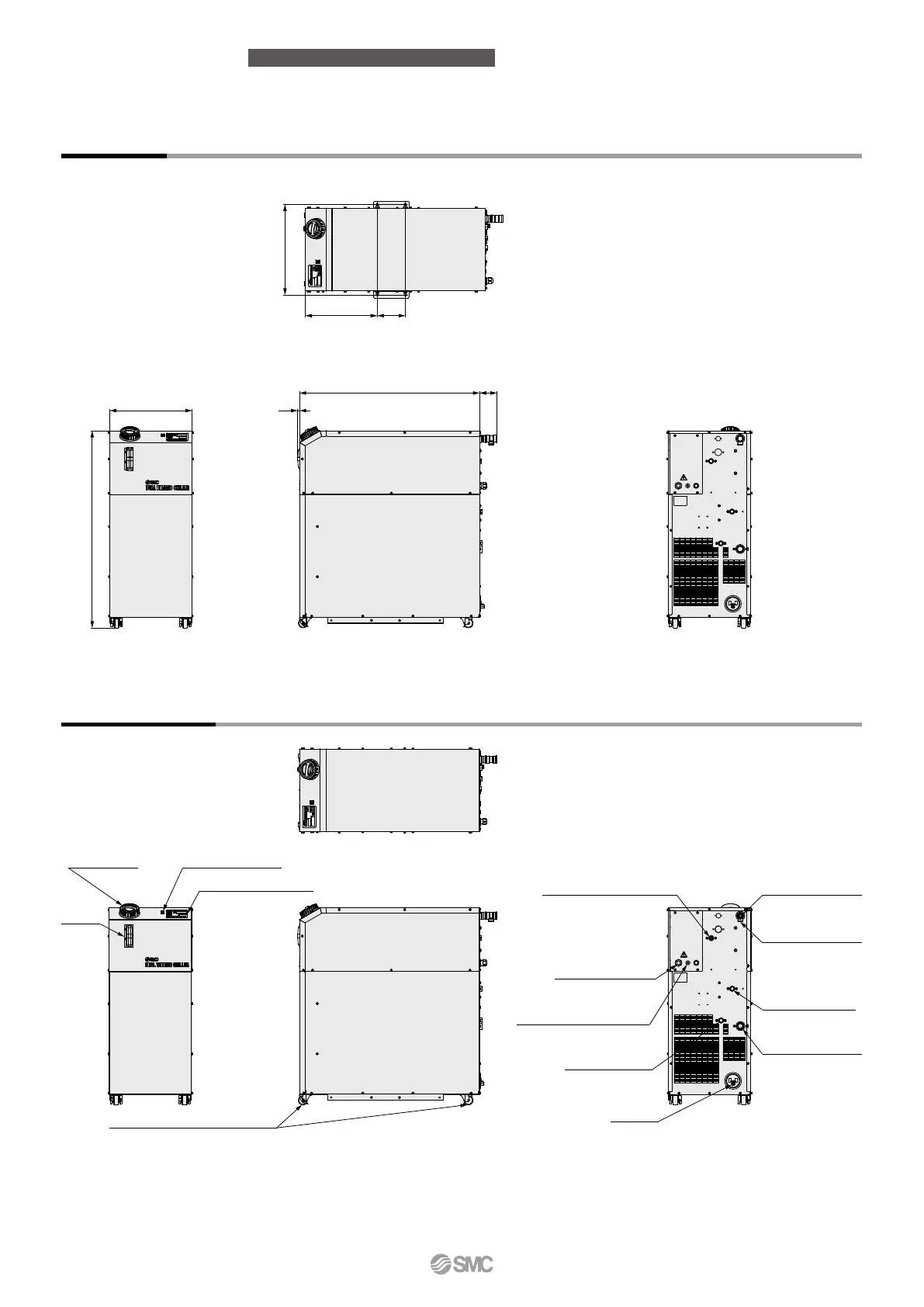

SCM HRLE090 - Page 22

Anchor bolt mounting position
484
385 150
445
1055
10
965 95
Circulating
fluid fill port lid
Fluid level
indicator
Power supply switch
Operation display panel
Caster (unfixed) with locking lever
Circulating fluid outlet (CH2)
Rc1/2
Power cable entry
Applicable wire total:
ø14.5 to 18.5
Communication cable entry
Applicable wire total:
ø6.5 to 10.5
Facility water inlet
Rc1/2
Drain port
Rc1/4
Circulating fluid return
port (CH1)
Rc1
Circulating fluid return
port (CH2)
Rc1/2
Facility water outlet
Rc1/2
Circulating fluid outlet
(CH1)
Rc1
HRLE090-W-20/40
Dimensions
Parts Description
15
HRLE Series
Compact Dual/Basic Type for Lasers
