Scosche StuckUp - Dash Mount Assembly and Installation

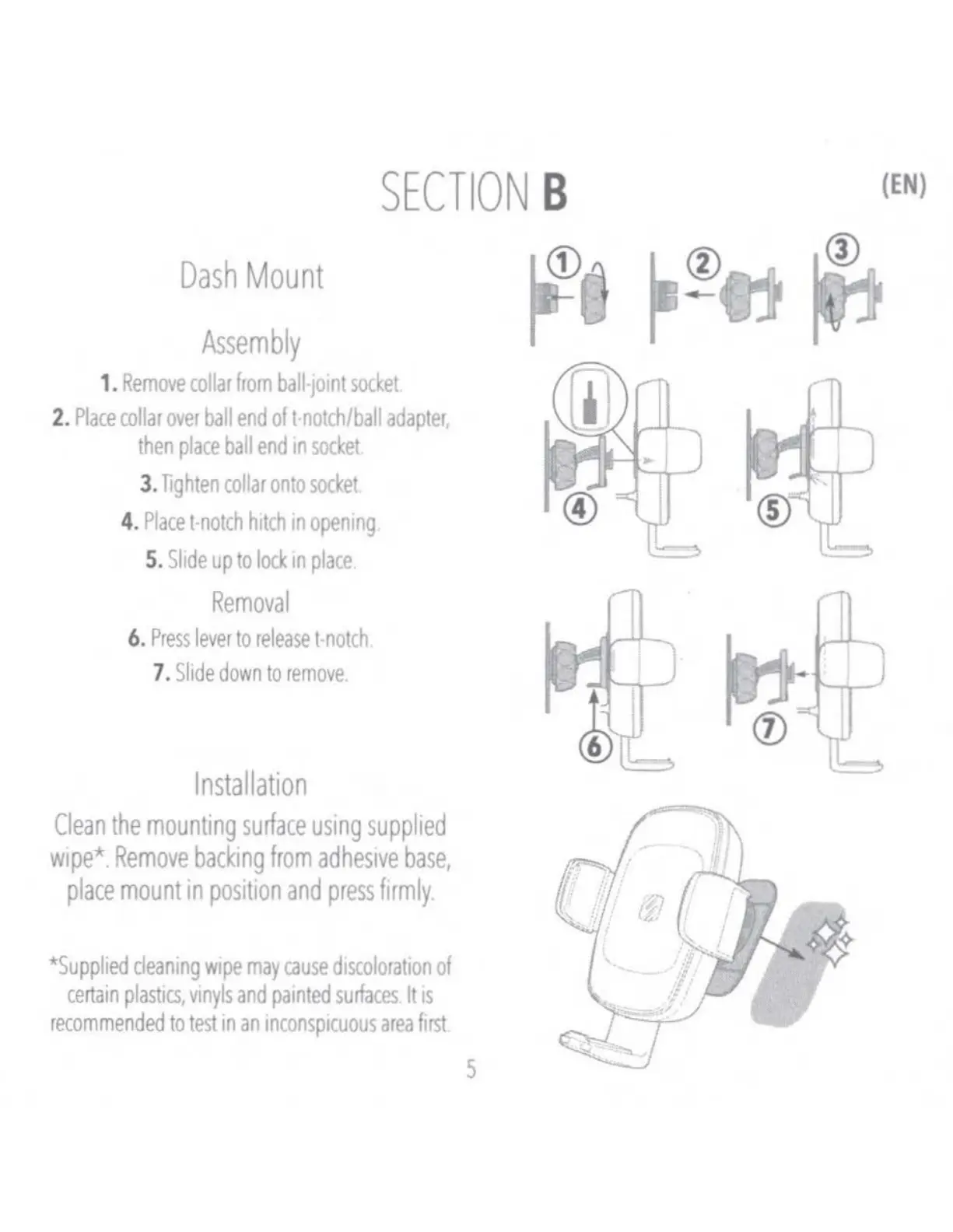

SECTION B
Dash Mount
Assembly
1. Remove collar from ball-joint socket
2. Place collar over ball end oft-notch/ball adapter,
then place ball end in socket.
3. Tighten collar onto socket.
4. Place t-notch hitch 1n opening
5. SI de up to lock in place
Removal
6. Press lever to release t-notch .
7. Slide down to remove.
Installation
Clean the mounting surface using supplied
wipe*. Remove backing from adhesive base,
place mount in position and press firmly.
*Supplied cleaning wipe may cause discoloration of
certain plastics, vinyls and painted surfaces . It is
recommended to test in an inconspicuous area first.
~0 ~P(Ji
5
(EN)
