Adjustments
Ice Bridge Thickness
Caution: Do not make the bridge too thin or the
machine will not harvest properly. Bridge thickness
adjustments are not covered by warranty.
Shut machine off.
Access the ice thickness sensor.
Check gap between metal tip and evaporator
grid. Small cube standard gap is 3/16 inch,
medium cube standard gap is 7/32 inch. To
set, place a 3/16" (small cube) or 7/32"
(medium cube) drill bit between sensor tip
and evaporator to check. Adjust gap using
adjustment screw.
Restart unit and check ice bridge. Repeat as
needed.
September 2006 Page 7
General Installation - Air or Water Cooled
Ice Thickness Sensor Adjustment
Gap
Adjustment
Screw

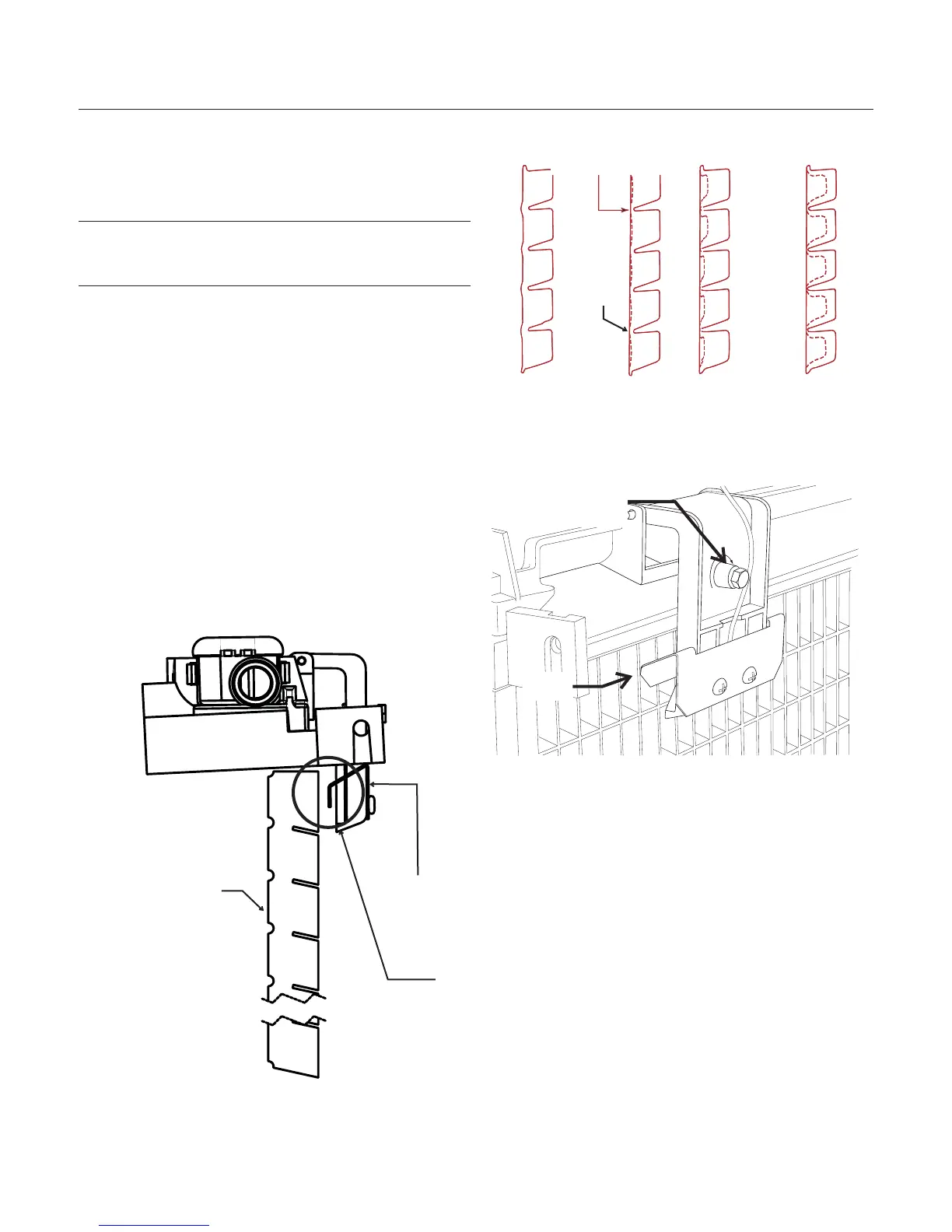

Side View of Evaporator and Ice Thickness
Sensor
Ice Thickness Sensor
Evaporator
Gap
Ice Bridge Thickness Measurement
1/8-3/16"
bridge
Note: Indentations may be deeper on C0322 and C0330
1/8" indentation
Too Big
Too Small
Just Right
