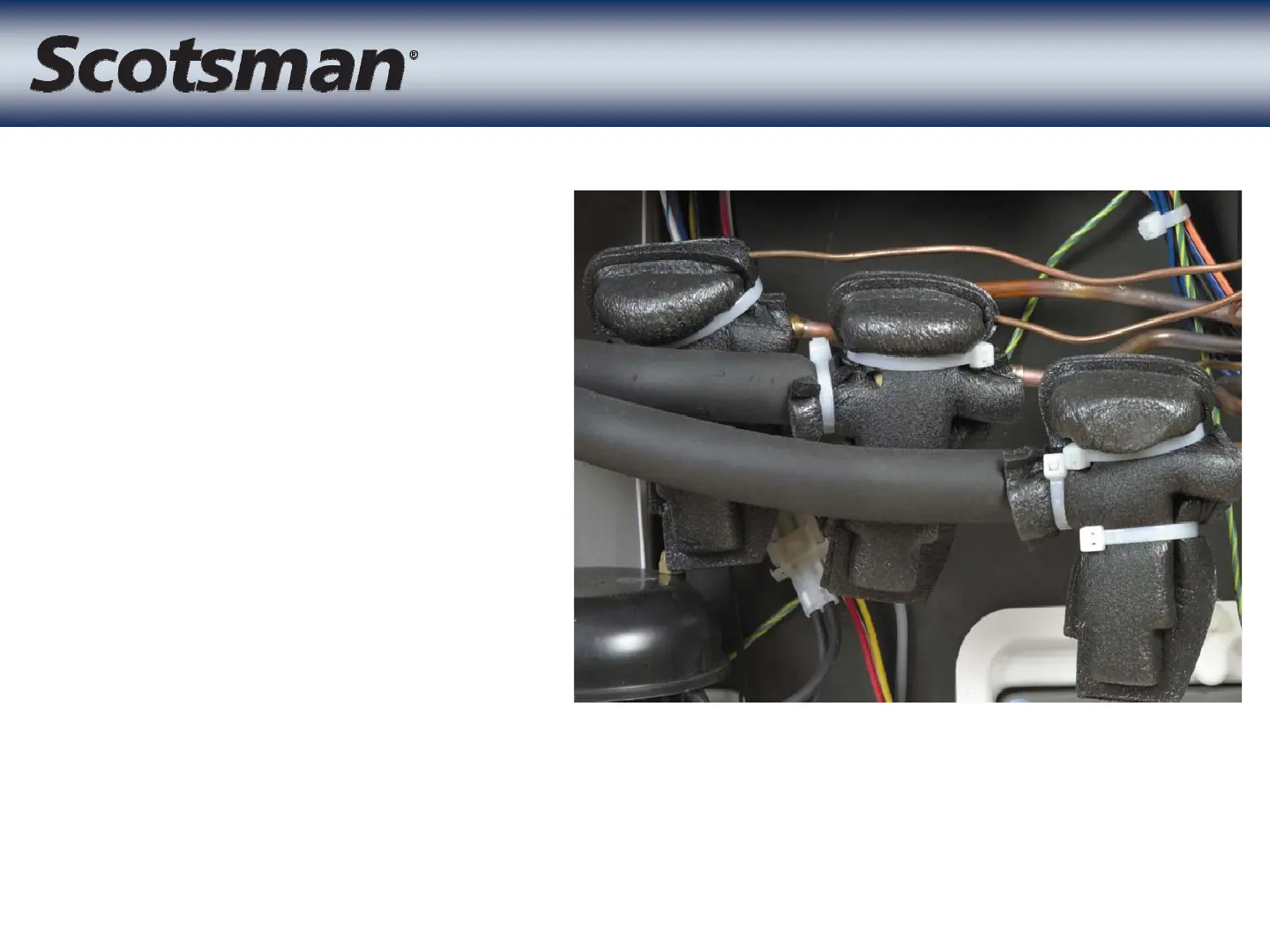

Three
Three
TXVs
TXVs
• Three internally
equalized valves
• Purpose: Control
individual
evaporator
superheats
– One valve per plate
– Promotes even
plate-to-plate ice
distribution
