Scotsman Eclipse CME686 - Page 9

Three Check Valves
Three Check Valves

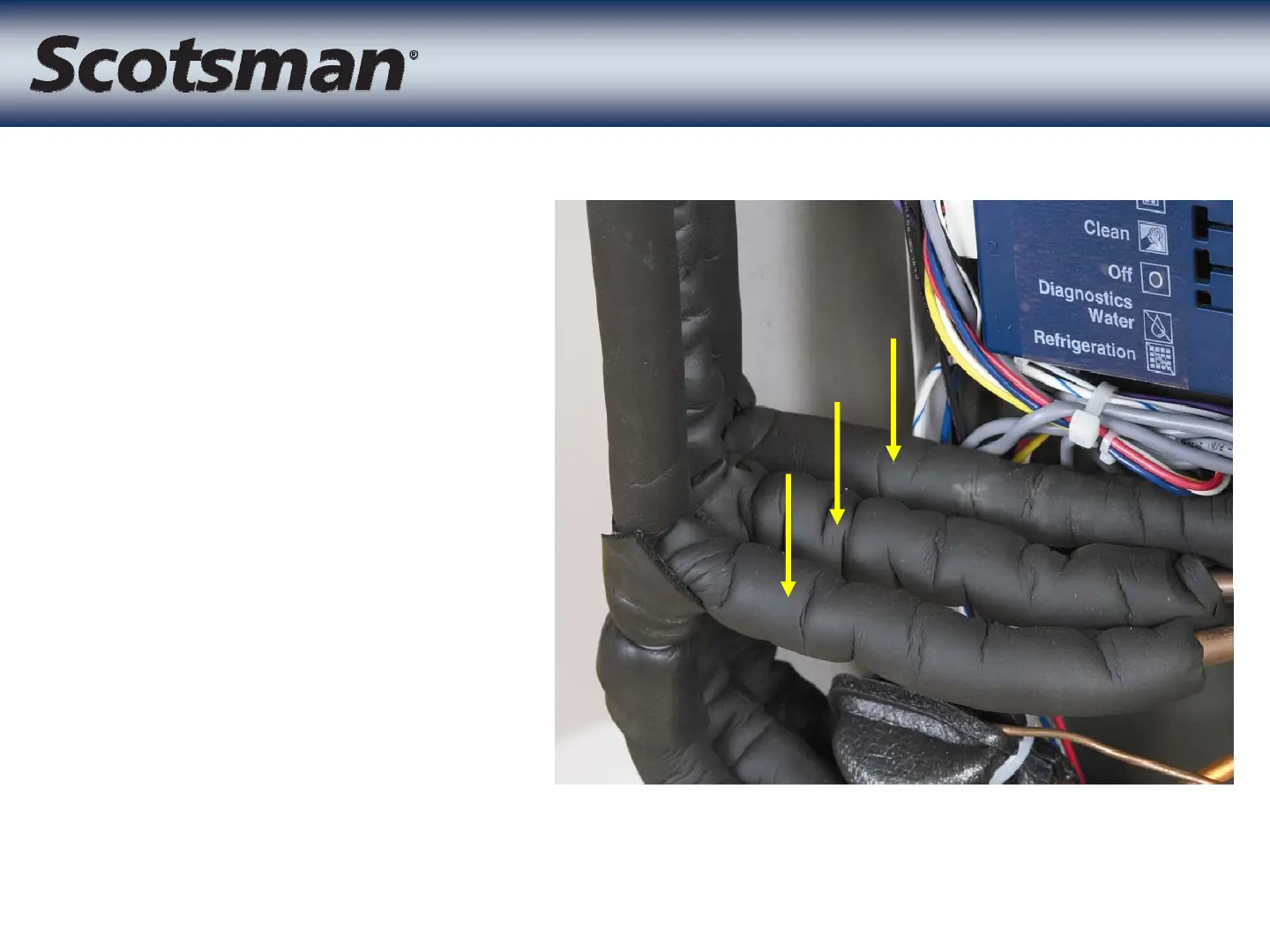

• Check valves
keep each TXV’s
refrigeration flow
directed to a
single evaporator
– Eliminates cross-
flow during freeze
cycle
– Each TXV outlet
must flow to one
evaporator
