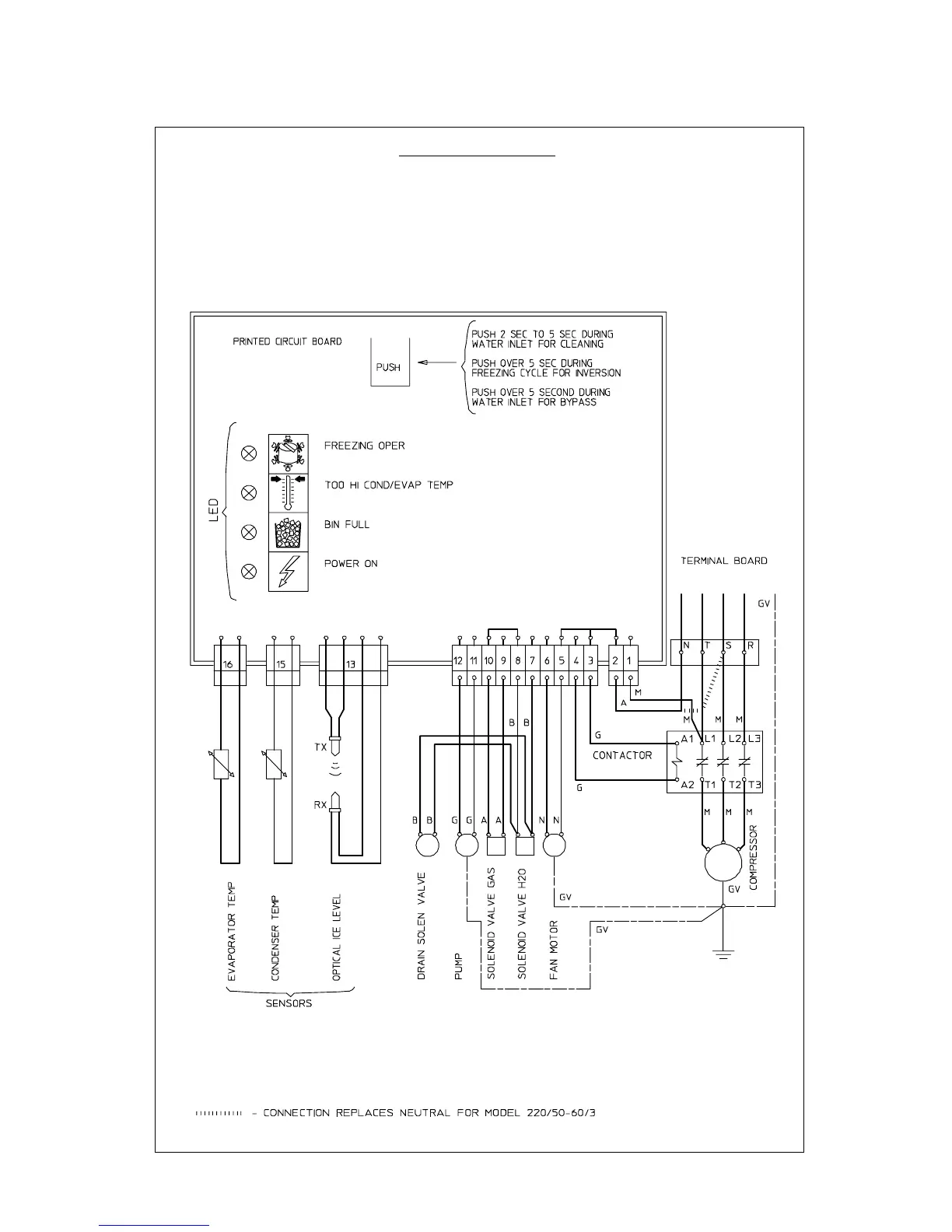

WIRING DIAGRAM
MC-15 A-W
220/50-60/3 - 400/50/3 + N
B - WHITE
G - GREY
N - BLACK
A - BLUE
M - BROWN
GV - YELLOW GREEN
