FOR THE INSTALLER
INTRODUCTION
These instructions provide the specifications and
the step-by-step procedures for the installation,
start up and operation for the SCOTSMAN
Model MV 306-426-456-606-1006 Modular
Cubers.
The Models MV 306-426-456-606-806-1006
Modular Cubers are quality designed, engineering
and constructed, and are thoroughly tested
icemaking systems, providing the utmost in
flexibility to fit the needs of a particular user.
INSTALLATION NOTE: Allow 15 cm.
minimum space at sides and back for
ventilation and utility connections.

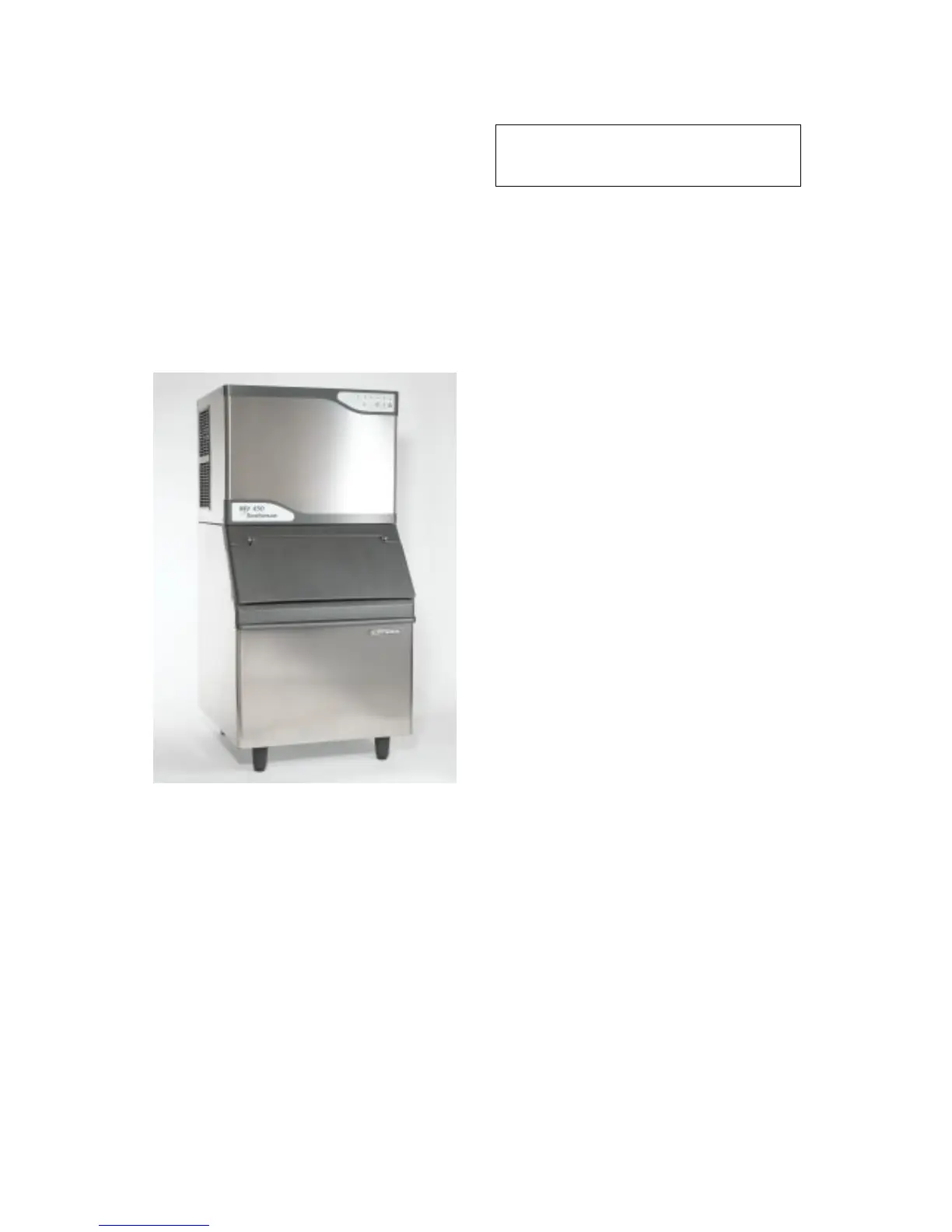

STORAGE BIN
The MV 306-426 stack on top of Scotsman bin
model B 193; the MV 456-606-806-1006 stack
onto SCOTSMAN bin model B 393.
Refrigerant R 404 A
Charge per nameplate rating.
STANDARD LEGS: Furnished with storage bin.
Four legs screw into mounting sockets on cabinet
base. Provide 18.5 cm. (7’’) minimum height
including adjustable leveling foot.
Optional Kit Casters for B 193/393 (KRB 550) are
available on request.
IMPORTANT OPERATING REQUIREMENTS
MINIMUM MAXIMUM
Air Temperature 10°C (50°F) 40°C (100°F)
Water Temperature 5°C (40°F) 35°C (90°F)0
Water Pressures 1 bar gauge 5 bar gauge
Electrical Voltage
Variations Voltage
rating specified
on nameplate -10% +10%
Extended periods of operation exceeding these
limitations constitues misuse under the terms of
Manufacturer’s Limited Warranty, resulting in a
loss of warranty coverage.
