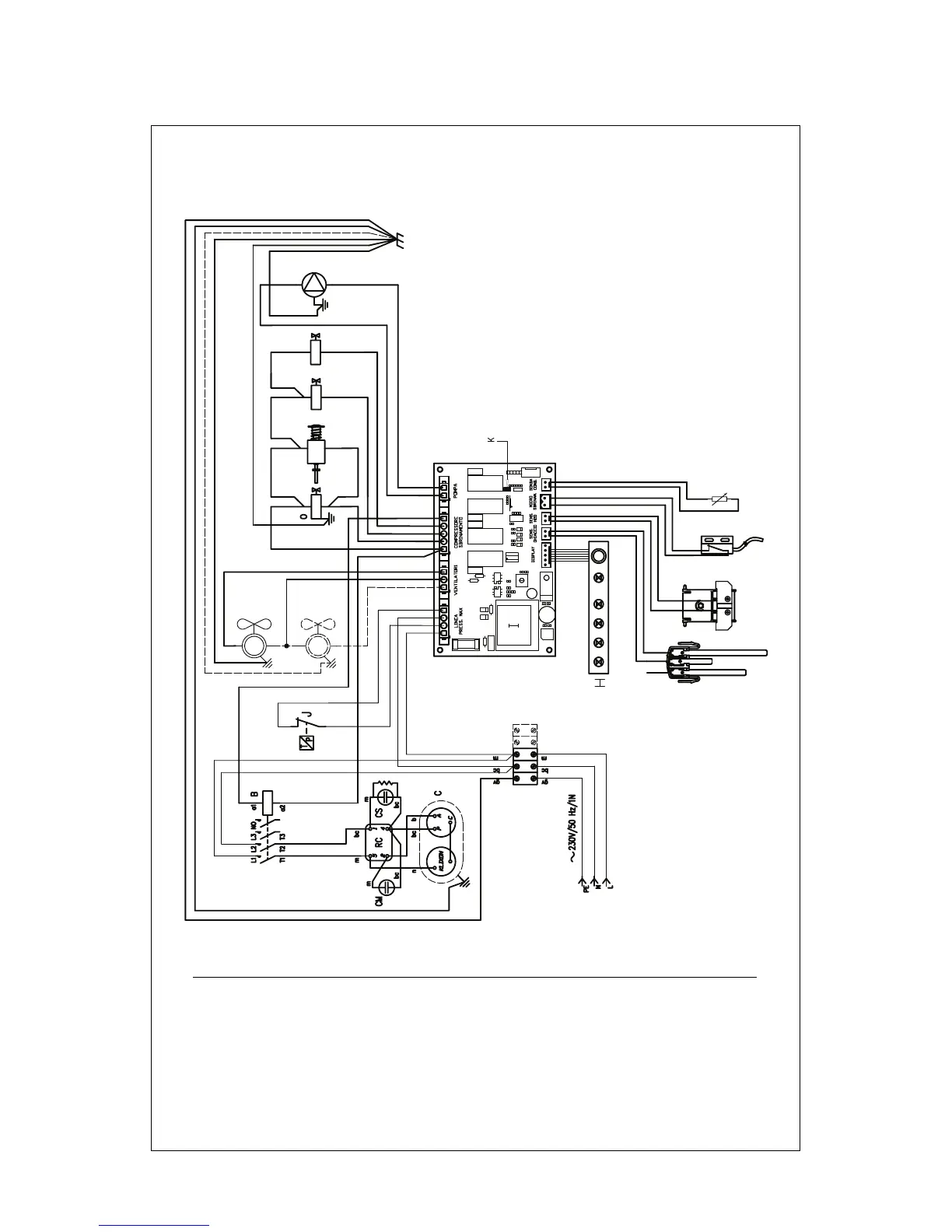

MV 426/456/606/806 - WIRING DIAGRAM
220 V. 50 Hz. 1 ph.
A - Input terminal board
B - Compressor remote control switch
C - Compressor
D - Ice sensor
E - End defrosting switch
F - Water level sensor
G - Condenser temperature probe
H - Led card
I - Electronic card
J - Max pressure switch
K - Automatic reset switch
L - Water pump
M - Water inlet valve
N - Water discharge valve
O - Hot gas valve
SP- Solenoid harv assist
P1- Fan Motor (only AIR cooled unit)
P2- Fan Motor (only WATER cooled unit)
RC - Compressor relay
CS - Start condenser
CM - Run condenser
m = brown
bc = light blue
gv = yellow green
b = white
n = black
r = red
a = orange
v = violet
