15

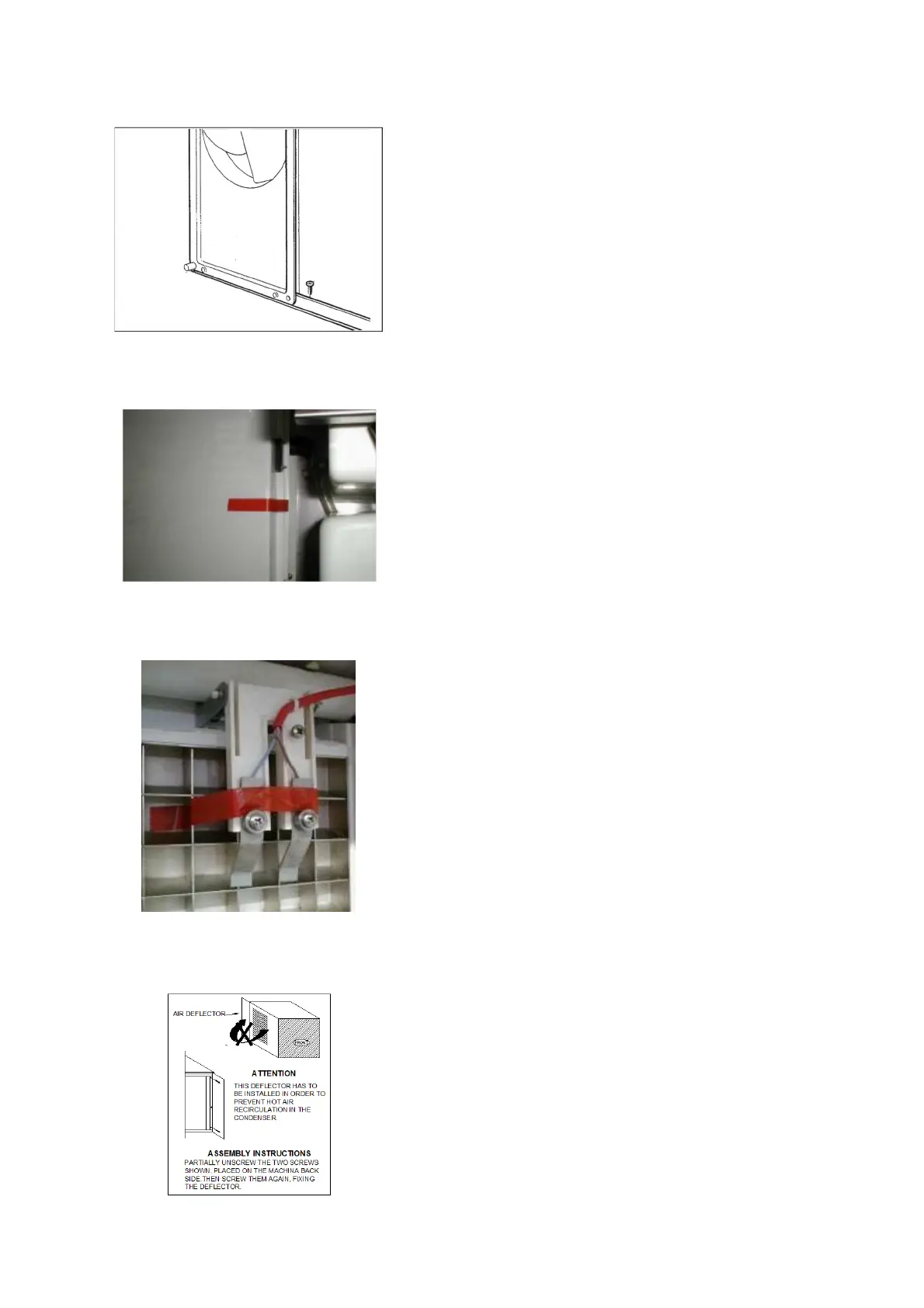

use them to secure the Icemaker to the two
sides of the bin.
See illustration below.
Remove all shipping material as well as the
masking tapes from the ice
Deflector/evaporator cover.
Remove first the ice deflector/evaporator cover
then the masking tape from the ice thickness
sensor.
AIR BAFFLE
Install on the back side of the machine the air
baffle as per instruction provided with it.
STACKING INSTALLATION
To stack a second NW onto the present one,
first remove the top panel from the lower
machine. Add a bead of food grade silicone
sealant to the top edges of the lower units
freezing compartment. Lift the top machine
onto the bottom machine, (the use of a
mechanical lift is recommended for this step).
Align the two machines cabinets, and using the
2 screw from the top units, hardware package,
fasten the two units together at the side
cabinets.
Then make use of the Stacking Kit KSC 450,
and KSC 1000, to be mounted as per fitting
instructions included in their package,
respectively on NW 458, NW608, NW1008
located in the bottom for proper conveying, of
the ice cubes made by the top unit, into the
storage bin.
With food grade silicone perfectly seal the edge
between the freezing compartment of the upper
machine and of the bottom machine so to avoid
any possible leak of water through the
clearance in between.
(Note: NW 307/308/507/508/457/1408 NOT
DESIGNED FOR STACKING.)
FOR THE PLUMBER
CONFORM TO ALL APPLICABLE CODES
When choosing the water supply for the NW
Cuber, consideration should be given to:
A. Length of run.
B. Water clarity and purity.
C. Adequate water supply pressures.
Since water is the most important single
ingredient in producing ice you cannot over
emphasize the three items listed above. Low
water pressure, below 1 bar may cause
malfunction, of the icemaker unit. Water
containing excessive minerals will tend to
produce cloudy colored ice cubes, plus scale
build-up on parts in the water system.
Heavily chlorinated water can be controlled
using charcoal or carbon filters.
WATER INLET
AIR-COOLED MODELS: The recommended
water supply is cold water connected to the -
3/4'’ gas - male fitting at the back of the cabinet.
