FOR THE INSTALLER
INTRODUCTION
These instructions provide the specifications
and the step-by-step procedures for the
installation, start up and operation for the
SCOTSMAN Model NW 307-308-507-508-457-
458-608-808-1008-1408 Modular Cubers. The
Models NW 307-308-507-508-457-458-608-
808-1008-1408 Modular Cubers are quality
designed, engineering and constructed, and
are thoroughly tested ices making systems,
providing the utmost in flexibility to fit the needs
of a particular user.
STORAGE BIN
NW 307-308-507-508-457-458-608-808-1008-
1408 can stacks onto SCOTSMAN bin model
NB 193-393-530-948 SCOTSMAN bin.
Refrigerant R290/R404A/R452A
Charge per nameplate rating.
R290 only for NW307/507/457
STANDARD LEGS: Furnished with storage
bin. Four legs screw into mounting sockets on
cabinet base. Provide 14-17 cm height
including adjustable leveling foot.
IMPORTANT OPERATING REQUIREMENTS
Air Temperature
MINIMUM
10 °C(50°F)
MAXIMUM
40°C (100°F)
Water
Temperature
5°C (40°F) 35°C (90°F)
Water Pressures
1 bar
gauge
5 bar gauge
Electrical Voltage
Variations
Voltage rating
specified on
nameplate
-10% +10%
Extended periods of operation exceeding these
limitations constitute misuse under the terms of
Manufacturer’s Limited Warranty, resulting in a
loss of warranty coverage.
SELECT LOCATION
The first step in installing the equipment is to
select the location. The purchaser of the unit
will have a desired spot in mind, check out that
spot to insure that it is:
- Indoors, in an environment that does not
exceed the air and water temperature
limitations for the equipment.
- That the necessary utilities are available
including the correct voltage electrical power.
- that there be space around the installed
machine for service, 15 cm. minimum left, right,
and rear for air-cooled models.
STORAGE BIN
The Scotsman bins for these units are the NB
193, NB393, NB530 and NB948.
Other bins may be available with bin tops to
vary the storage capacity. Lay the bin on its
back, using cardboard from the carton to
support it, screw in the legs.
Stand the bin upright, and correct any possible
small tears in the machine mounting gasket
with food grade silicone sealant.
ICE MACHINE
The use of a mechanical lift is recommended
for lifting the uncrated icemaker onto the bin.
Remove front, top and sides panels.
Place the unit directly onto the bin, align it with
the back of the bin. Locate the hardware
package, take out two mounting screws, and

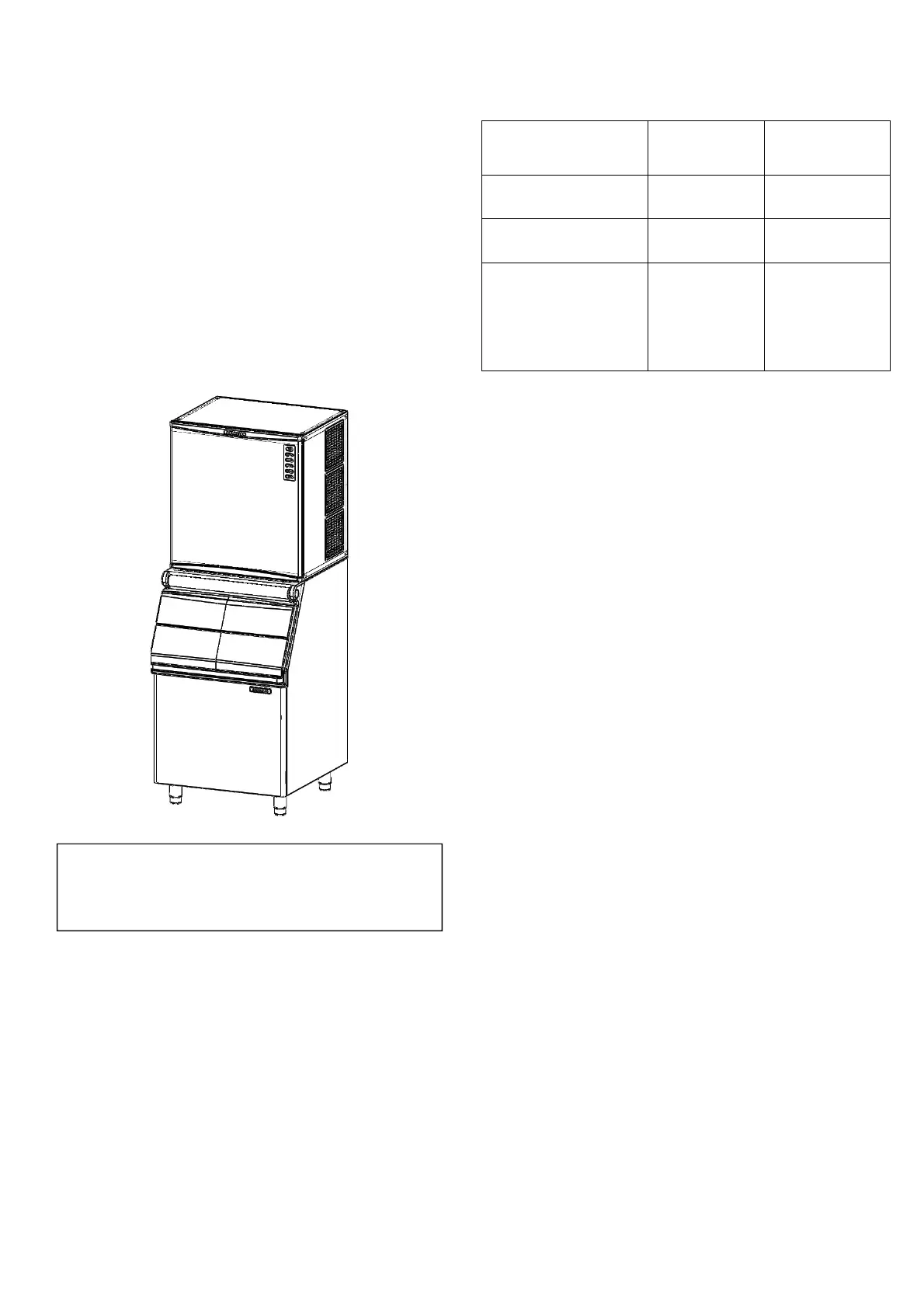

INSTALLATION NOTE:
Allow 15 minimum
space at sides and back for ventilation and
utility connections.
