Scotsman SCCG30 - Cabinet Layout and Dimensions

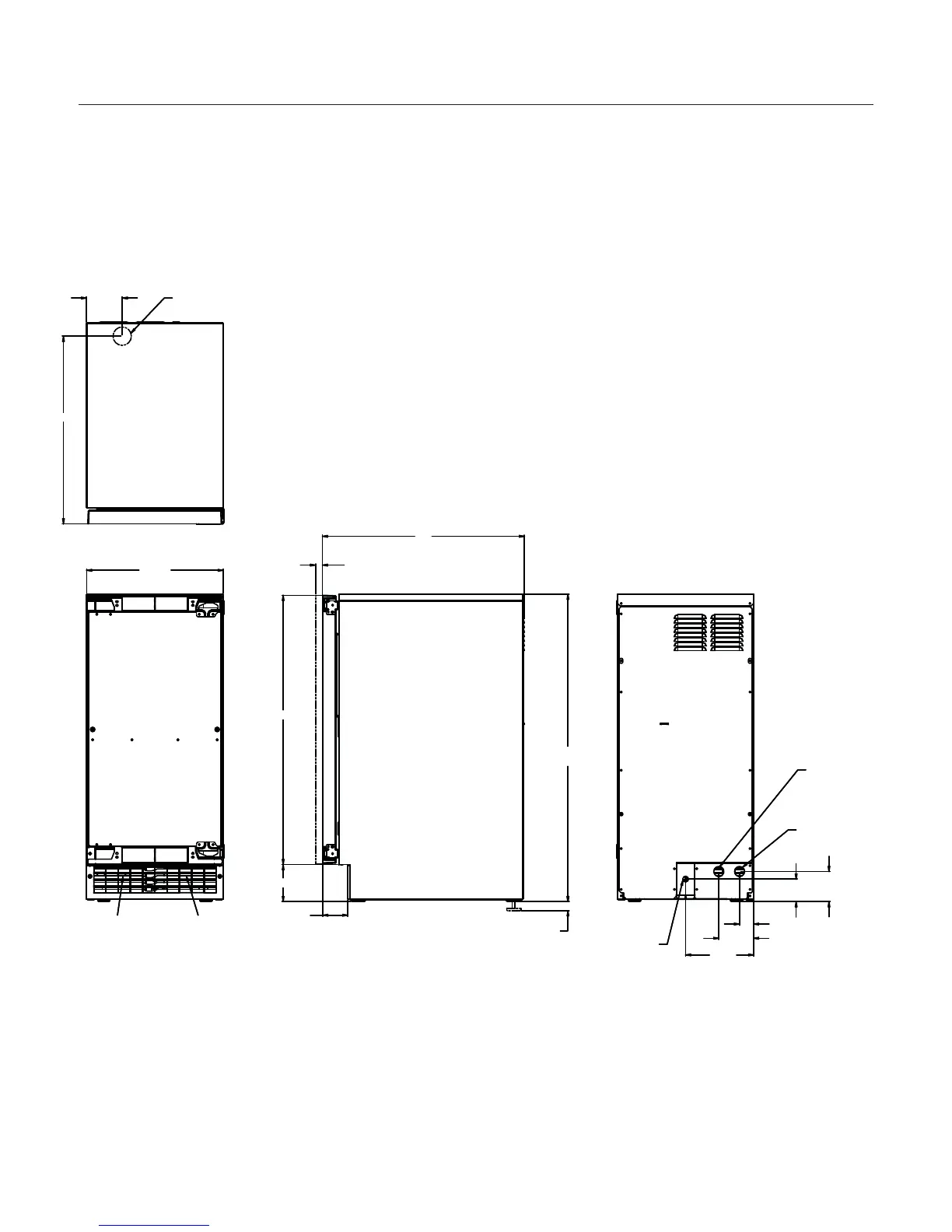

Cabinet Layout
November 2009
Page 4
SCCG30 & SCCP30
User Manual
14 7/8"
AIR IN
AIR OUT
.75 SHEET METAL DOOR FRONT
.63 MIN. CABINET DOOR
29 1/4"
1" LEG ADJUSTMENT
(4) PLACES
33 3/8" MIN.
34 3/8" MAX.
22"
2 3/4"
4"
3 3/4"
1 1/2"
2 1/2"
3 1/4"
7 3/8"
115 V
POWER CORD
DRAIN
FLEXIBLE TUBING
3/8 I.D. PUMP MODEL (INCLUDED)
5/8 I.D. GRAVITY MODEL (NOT INCLUDED)
POTABLE WATER INLET
1/4" COMPRESSION FITTING
3 7/8"
20 3/8"
FLOOR DRAIN
ACCESS HOLE
