8 scott-sports.com 9
GENIUSENGLISH
BIKE OWNERS MANUAL
Information and data contained in this document is confidential and
proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written
permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
FORK
CABLE
*** g *** A4
Scale Material Projection
Version: 00
3:2 ***
Division Pro-E file Drawn by Date Page
BIKE twinlock-lever_2.asm VL 10/06/2009 1 / 1
D C B A
D C B A
3
2
1
3
2
1
SCALE 3:2
FORK CABLE
rear shock cable
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ALL MODES
-
-
A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
LOCK OUT MODE
TRACTION MODE
ALL TRAVEL MODE
PRESS TO RELEASE
Press to release

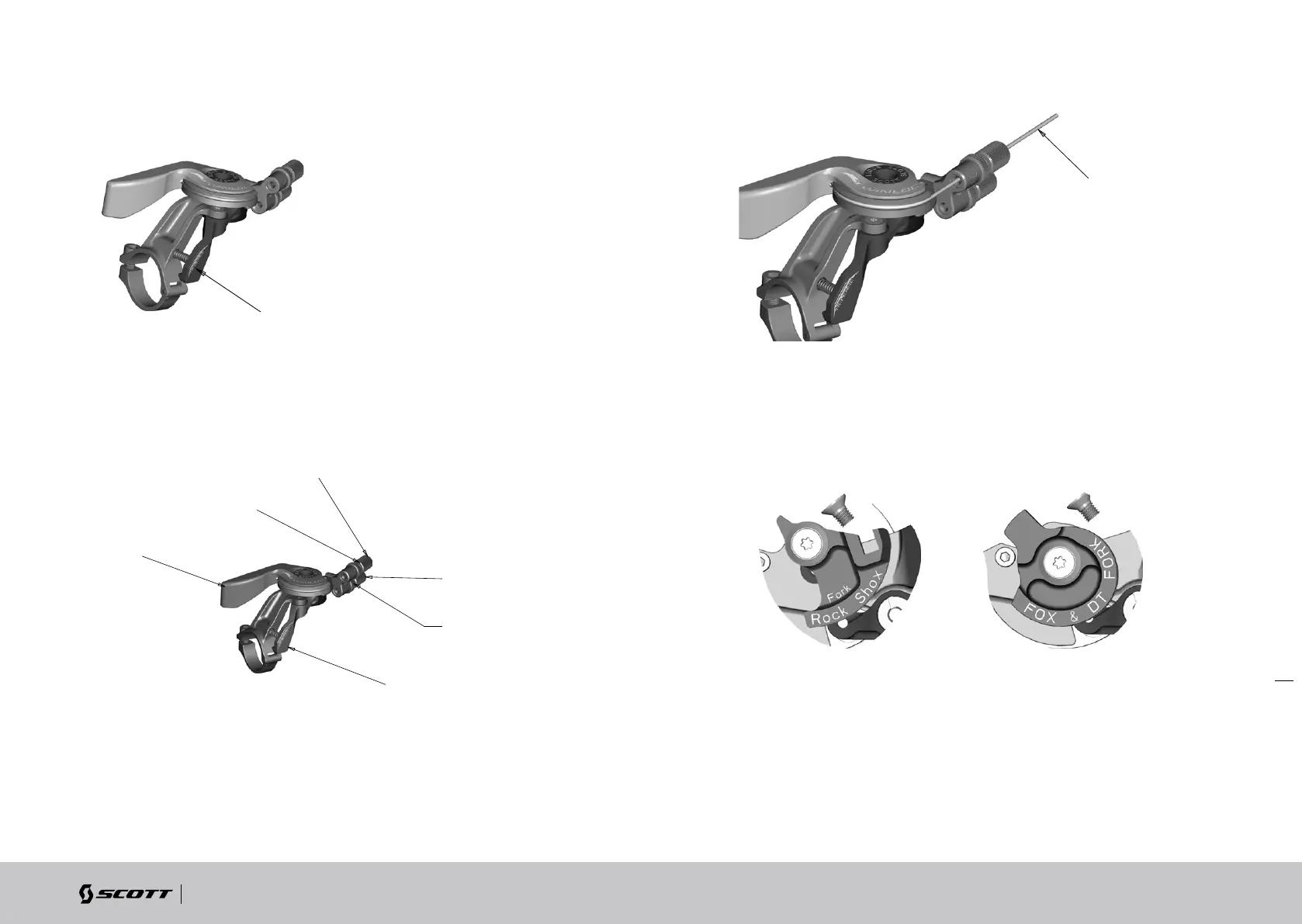

Change the modes by pushing the lever with your fingers frontward and release them
by tapping the release button (one mode per push/release)
For the assembly of the remote control of the front fork lock-out 2 different cable
systems are existing.
The different roll for the pull of the fork remote cable can be changed within few
minutes to adapt the lever to your fork model/brand.
You will see on the downside of the roll the indication of fork brand.
For the different parts of the TWINLOC lever mentioned in the following instruction
please refer to the drawing with parts names below:
Please note that the cable for the rear shock is ALWAYS the upper cable on the lever
as shown in drawing below.
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
DETAIL
COMPONENT
-
- A3
Scale Material Projection
Version: 00
1:1 -
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 06/03/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
REMOTE LEVER
RELEASE BUTTON
SHOCK CABLE TENSION SCREW
SHOCK REMOTE CONTROL CABLE
FORK CABLE TENSION SCREW
FORK REMOTE CONTROL CABLE
Shock remote control cable
Shock cable tensien screw
Remote lever
Fork remote control cable
Fork cable tensien screw
Release button
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ROLL-FORKS
- - A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
ROCK SHOX ROLL FORK
FOX - DT ROLL FORK
SEE DETAIL A
SCALE 2:1
DETAIL A
SEE DETAIL B
SCALE 2:1
DETAIL B
