Important:

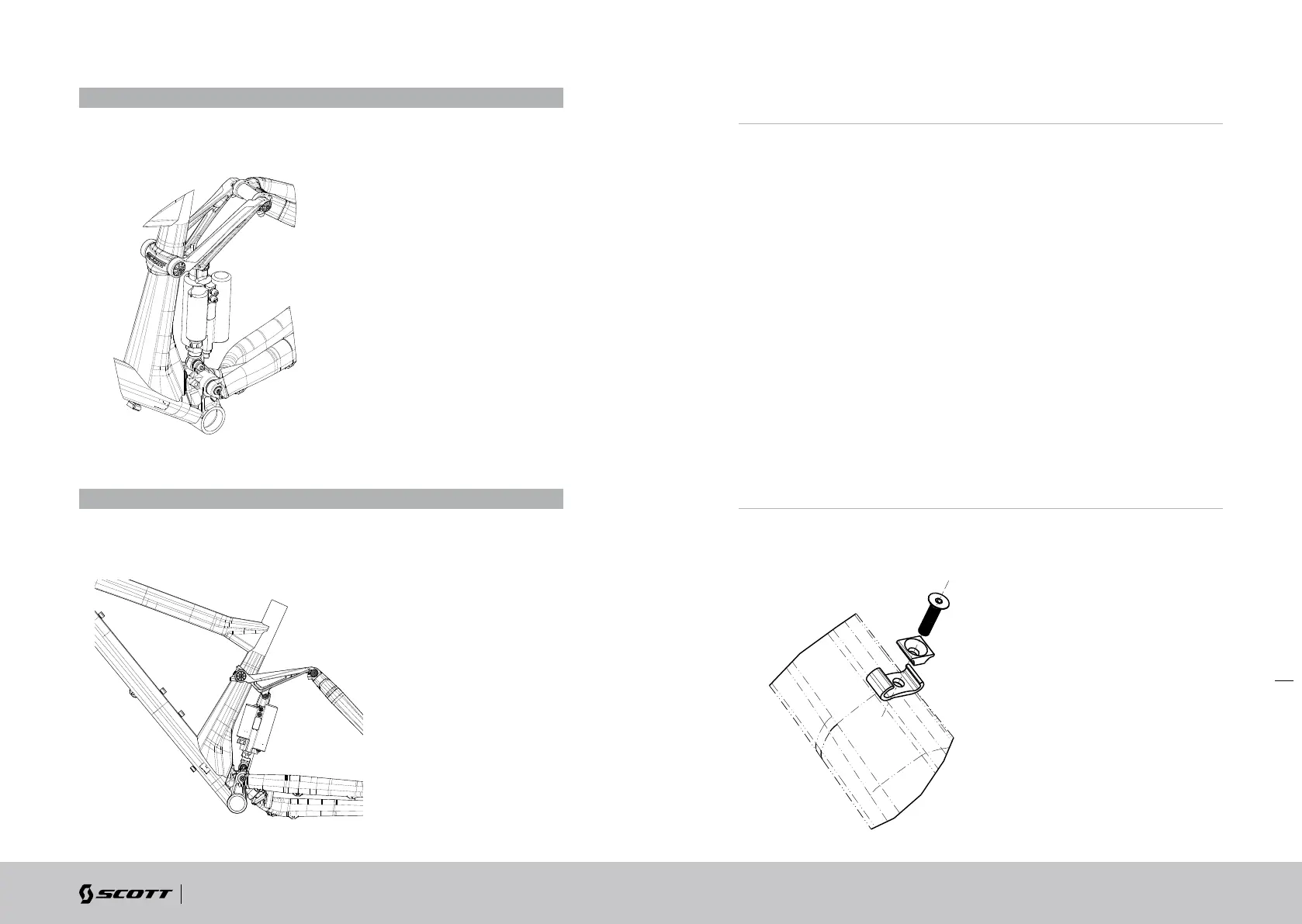

Note that you have to mount the Scott Equalizer 2 Shock always as shown beneath.
Mounting the rear shock in a different position can cause severe damages to the frame,
the linkage levers and the rear shock.
Important:
After a dismantlement of the rear shock, both fixing bolts should be tightened with
a tightening torque of 5Nm/44in-lbs.
If this is not done correctly the rear shock can be damaged.
set-up of other shock models
scott smart cable routing
Scott strongly recommends using only the Scott Equalizer 2 Shock with the Genius
bike, as we designed both parts for a perfect matching combination with a linear
suspension rate.
If you want to use a different rear shock model than the one originally on the bike,
please make sure that the shock will not in any position hit the frame and cause a
damage to the frame.
Please follow the instruction below:
Please make sure that the rear shock or its accessory parts do not touch the frame
when mounting or suspending.
For doing so release the air/remove the coil, install the shock and extend the shock
completely.
If the shock touches the frame while doing so, do not use this shock in order to avoid
damage to frame, swing arm or shock.
The direct and straight cable system on all our full suspension models allows Smart
Cable Routing which is very resistant against water and dirt.
To change the cables simply unscrew and open the cable brackets on the downtube.
