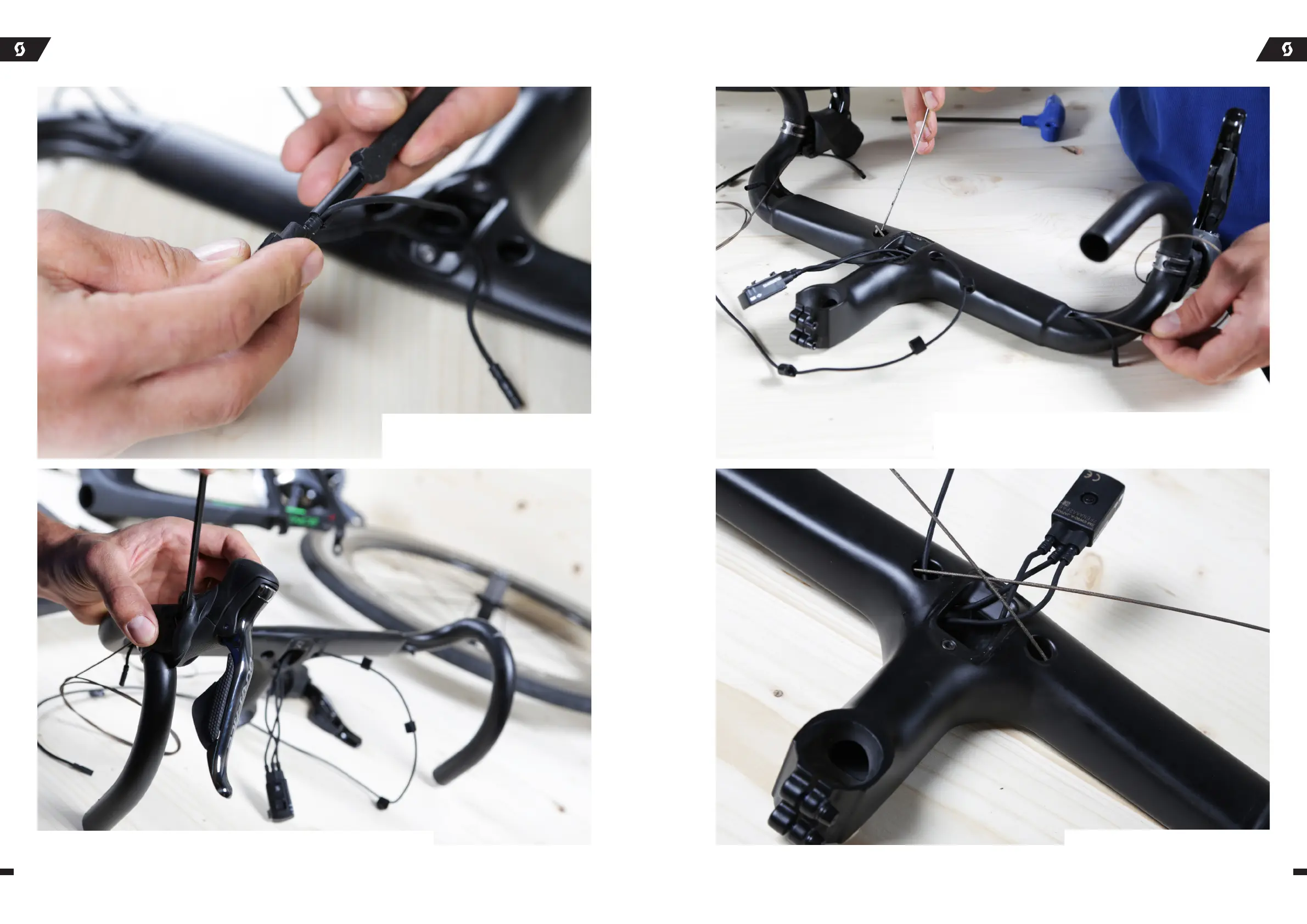

Insert the brake cable into the distal hole and pull it out of the medial brake
cable hole (don’t cross over the big center opening for the junction box).
Here again, a spoke might help to pull the cable out of the medial hole.
Connect all three cables to the 3 port junction
box (Junction A/SM-EW-90-A). Use a Shimano
tool to ensure a firm connection.
Mount the brake leavers on the bar. Check that the brake cables are correctly pre-installed.
Repeat the same procedure on the other side.
