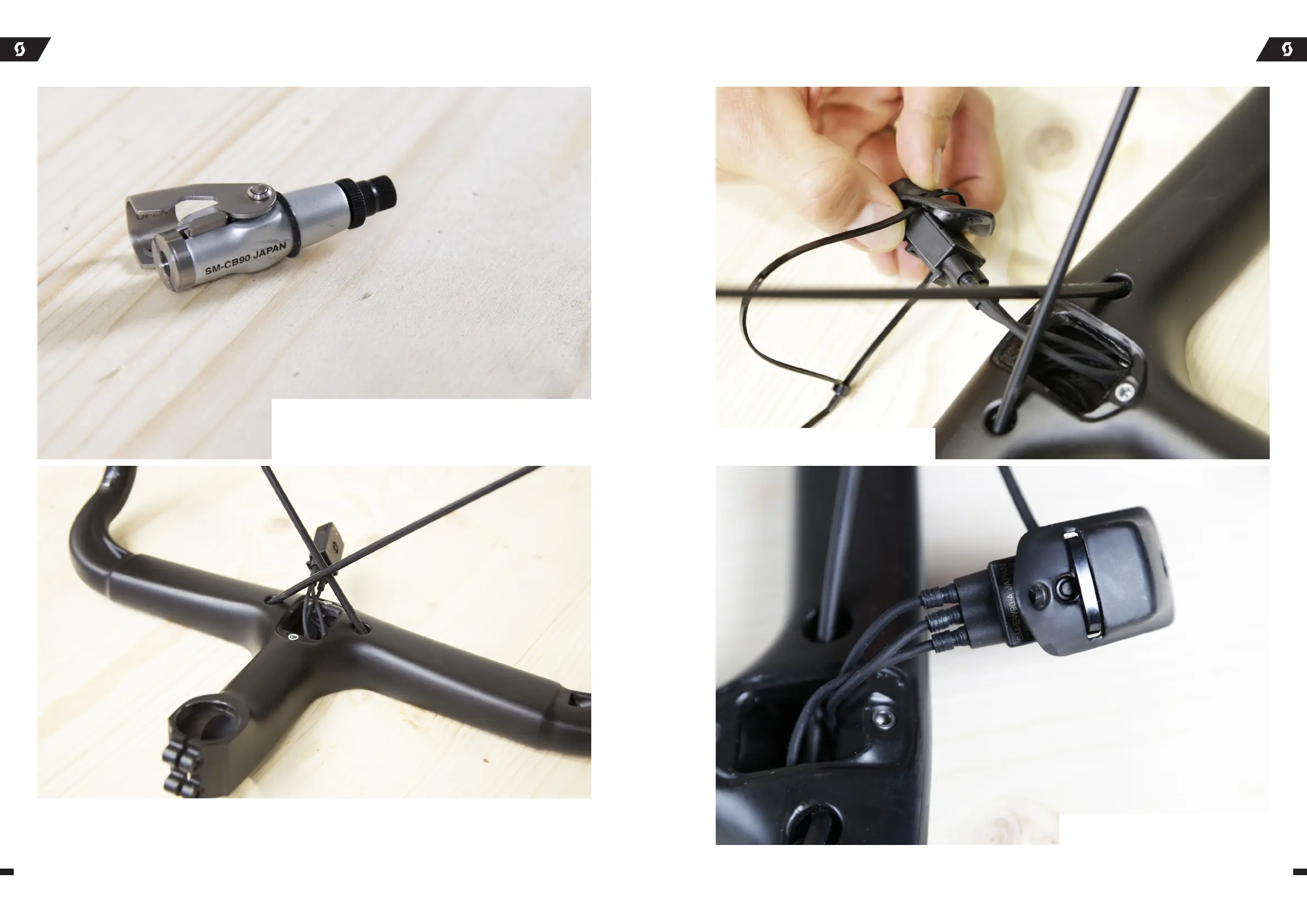

We recommend using a Shimano Direct Mount Quick Release (SM-CB90)
which facilitates rear brake adjustment on the Foil. Install the QR either
5cm from the bar or in the middle of the externally routed brake cable
under the bottom bracket.
To correctly install the cable housings, start by cutting them to the right length. Slide the housings over the pre-installed brake
cables. Use a bit of oil or grease to reduce the friction. Make sure that the cable housing sits tightly in the foreseen opening of the
brake leaver.
FOIL BUILD UP MANUAL / SCOTT / FOIL / 2016
Fix the junction box (Junction A) to the cover by
using a zip tie.
Make sure the button of the junction box is
placed correctly under the hole of the cover.
To Next Page
