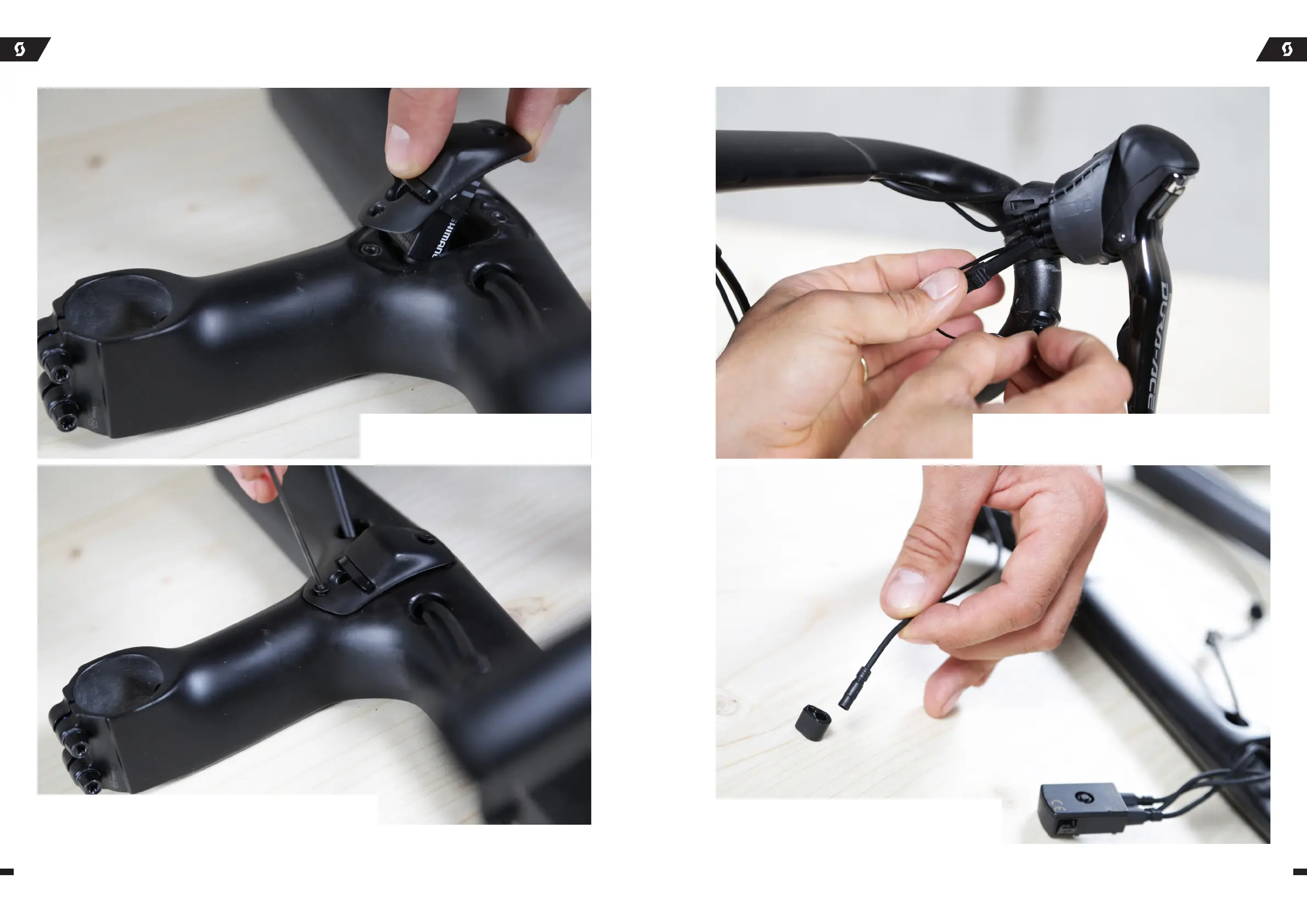

Slide the installed junction box into the opening of
the cockpit from the front at a 45° angle. Make sure
the button is still placed under the hole of the cover.
Align the cover correctly and fix it with the two bolts. Tighten the bolts to
1-1.5Nm using an Allen key.
FOIL BUILD UP MANUAL / SCOTT / FOIL / 2016
If you want to equip the Foil with Shimano’s Di2 Sprint Shifters
(SW-R610), install them right under the brake levers and connect
the Sprint Shifter wire with the brake lever using the Shimano tool.
Before the rear brake cable is inserted into the frame, make sure
you pre-install cable guides or a shrinking tube in order to hold
together the cable housing and the Di2 wire.
