ADJUSTABLE BB HEIGHT

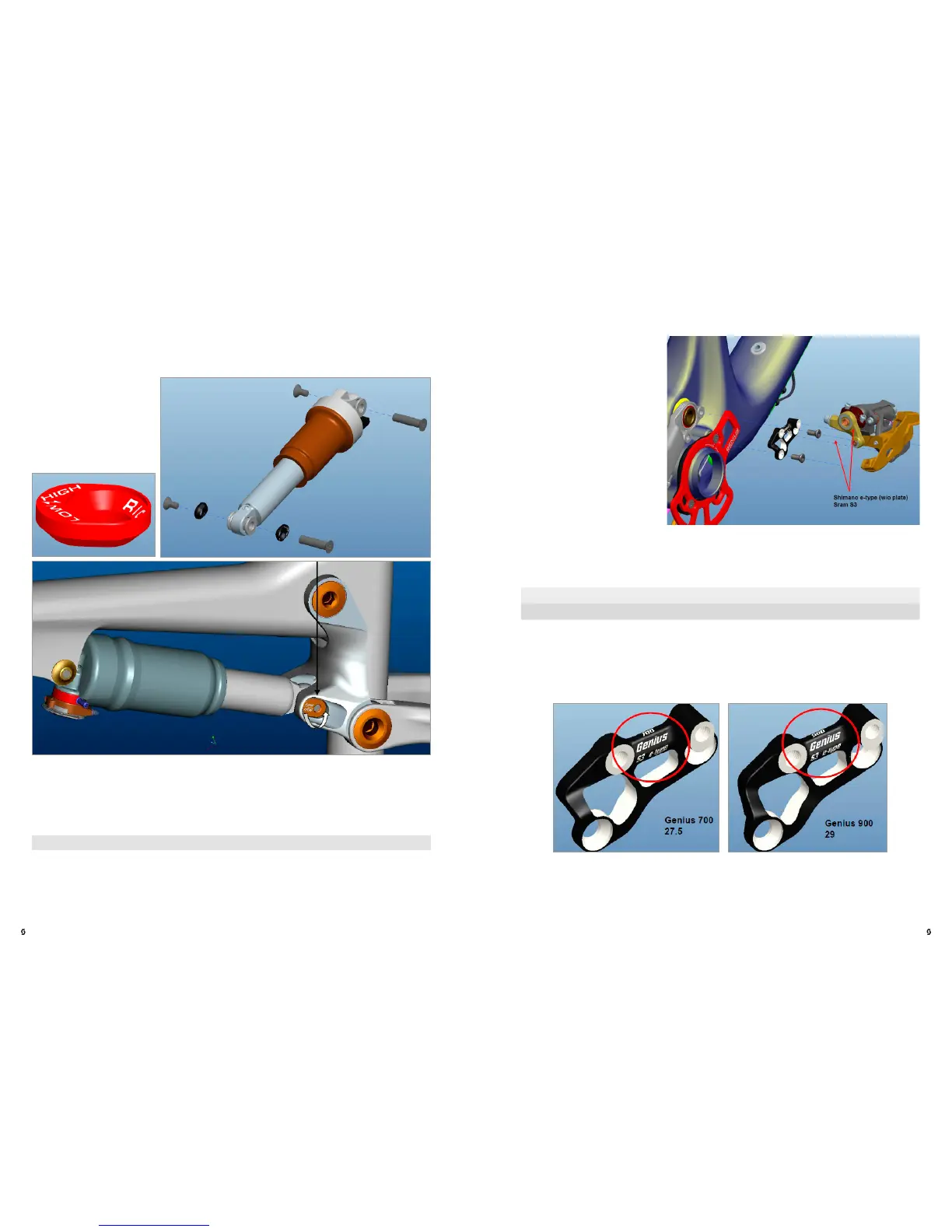

On Genius bikes equipped with the FOX Nude or the FOX CTD shock you can adjust the BB
height above ground in 2 positions by flipping a geometry chip located on the linkage bar
shock mount.
•
FRONT DERAILLEUR (FD) MOUNTING DETAILS
On all Genius frames you will
find a Shimano E-type front
derailleur but fixed directly on
the swingarm without the plate
that is fixed normally between
the bottom bracket bearing
cup and the bottom bracket
housing of the front triangle
or a SRAM Direct Mount
Type S3 FD.
Please note that you always
need to use the adapter plate
attached to the bike or frame
set between chainstay and
front derailleur.
This adapter can be ordered at the SCOTT distribution with parts number:
229728 FD Mount Genius 2013 700-650B
229729 FD Mount Genius 2013 900-29 - also to be used for the Genius 700 Plus
Please note that the 2 sizes of the adapters are not interchangeable!
1. low BB for lower center of gravity over ground
2. high BB for bigger clearance between pedals/crankset and obstacles on the ground
IMPORTANT!
It is not possible to use this geometry chip with other shock models than the FOX Nude or
FOX CTD.
The shock might collide with parts of the frame or linkage bar.
21 |
