ENGLISHENGLISH

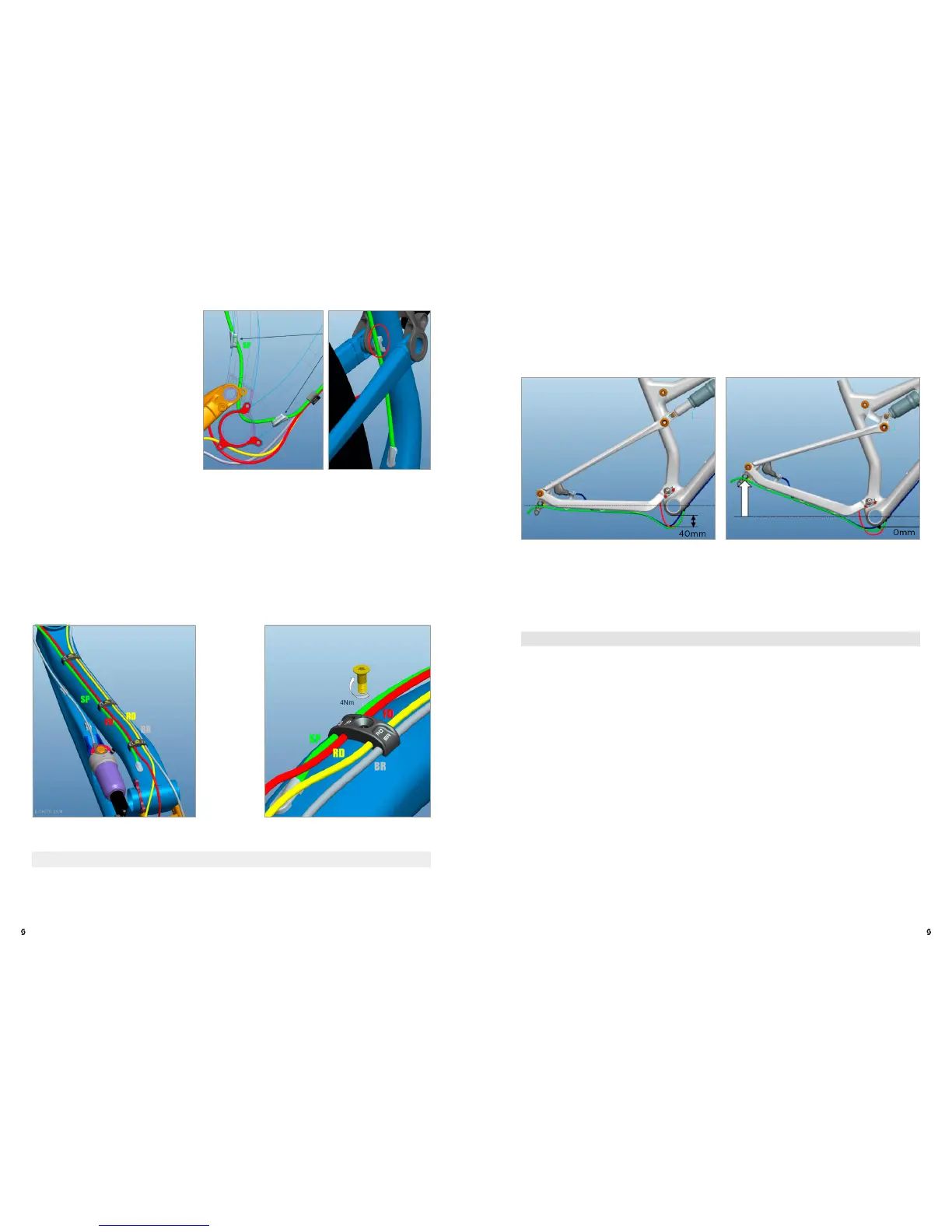

In addition to the derailleur cables
and the brake hose you also will see
a possibility for an integrated cable
routing of the seatpost remote on the
carbon version of Genius.
In order to seal the housing ports on
the frame you should use the plugs
attached to the bike.
Please make sure to respect the 40mm distance between the cables and the BB (bottom
bracket) housing to avoid “ghost-shifting” and/or damages on the shift cables and
brake hose.
For the rear brake please assemble the cable as shown in the following drawings:
•
ADJUSTMENT OF SEATPOST-HEIGHT
IMPORTANT!
The seatpost has to be inserted into the seattube at a minimum of 100mm.
Never use another seatpost diameter than 31.6mm or try to use a shim/reducer between
seatpost and frame.
ALLOY FRONT FRAMES
Please fix the derailleur cable housings, the
brake hose and the remote seatpost cable
housing (if applicable) on the frame on
the cable mounts with the mount clips by
following the routing info as shown:
229724 Cable Clamping Set Genius alloy 2013 one size
Please tighten the mount bolt with a
max. of 4Nm.
27 |
2016 BIKE USER MANUAL | GENIUSGENIUS | 2016 BIKE USER MANUAL
| 26
