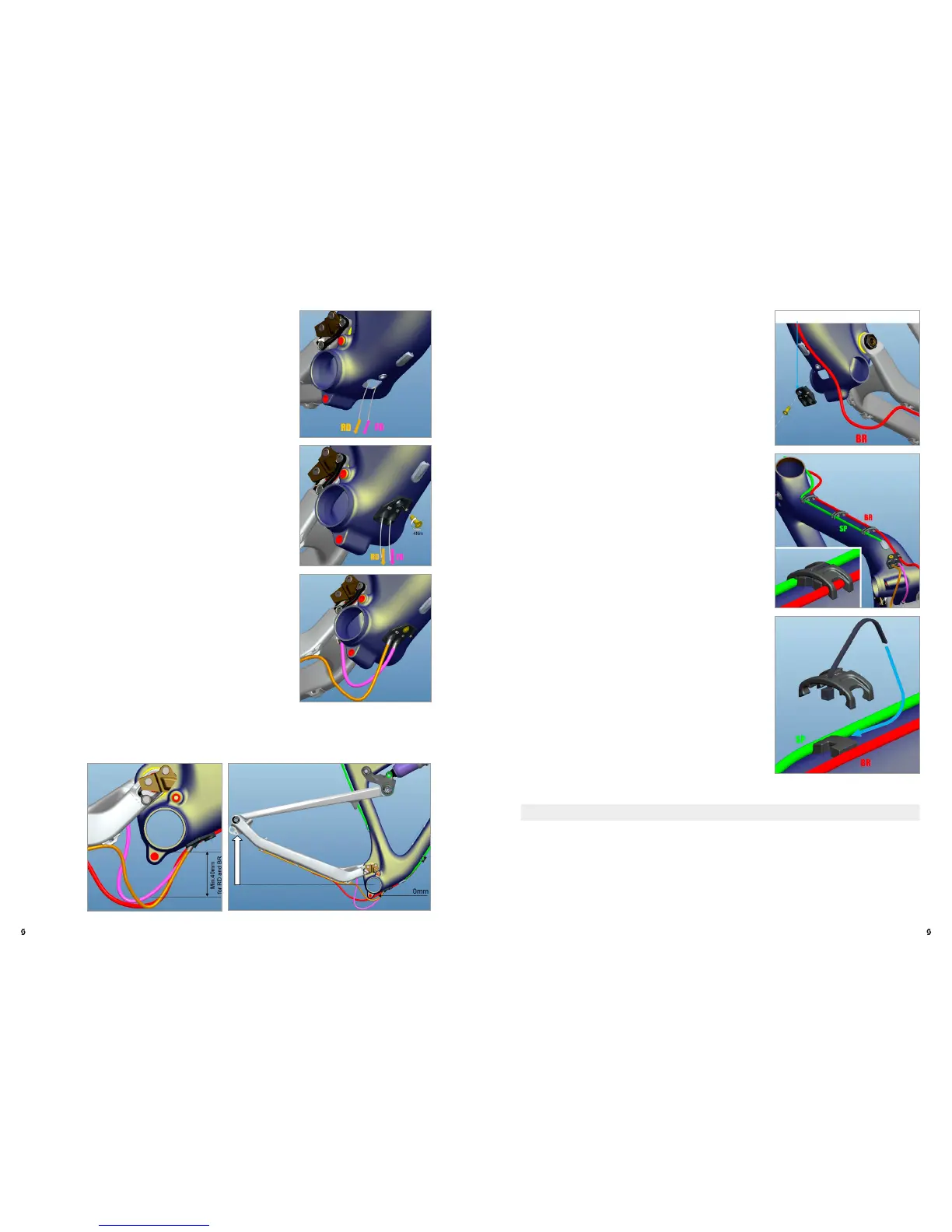

USE PLASTIC GUIDE TO FIX THE BRAKE CABLE
ENGLISHENGLISH
Please note that the inner cables need to cross each other
1 time on the inside of the downtube before you pull them
out through the cable slot on the lower downside of the
downtube.
For the rear brake please assemble the cable as shown
in the following drawings:
Please keep in mind to have a minimum distance of
40mm between the brake hose and the BB housing as
abovementioned!
Push the cables through the cable guide as shown below
and fix the cable guide on the downtube with a 3mm allen
key and a tightening torque of max. 4Nm/35in/lbf.
Push the outer cable housings on the cables into the cable
guide but make sure to respect the needed length as
shown in the next drawing!
Please make sure to respect the 40mm distance between the cables and the BB (bottom
bracket) housing to avoid “ghost-shifting” and/or damages on the shift cables and
brake hose.
Please fix the brake hose and the remote seatpost
cable housing (if applicable) on the frame on the cable
mounts with the mount clips by following the routing
info as shown below:
Please secure the clamps with a cable zipper as shown
in the following diagram:
The cable guide can be ordered via the SCOTT distribution with parts number:
229723 BB Cable Guide Genius (f. Carbon Frame)
25 |
2016 BIKE USER MANUAL | GENIUSGENIUS | 2016 BIKE USER MANUAL
| 24
