ASSEMBLY OF THE REMOTE CABLE
IMPORTANT!
Please make sure the lockout of SRAM/RockShox or FOX fork is activated after transport
correctly. Therefore please compress fork 5-10 times before following the manual on remote
cable installation and adjustment.
The lever should show on the downside of the cable roll the brand name of the fork you are
going to use. Please do not try to use a RockShox roll with a FOX fork or vice versa.

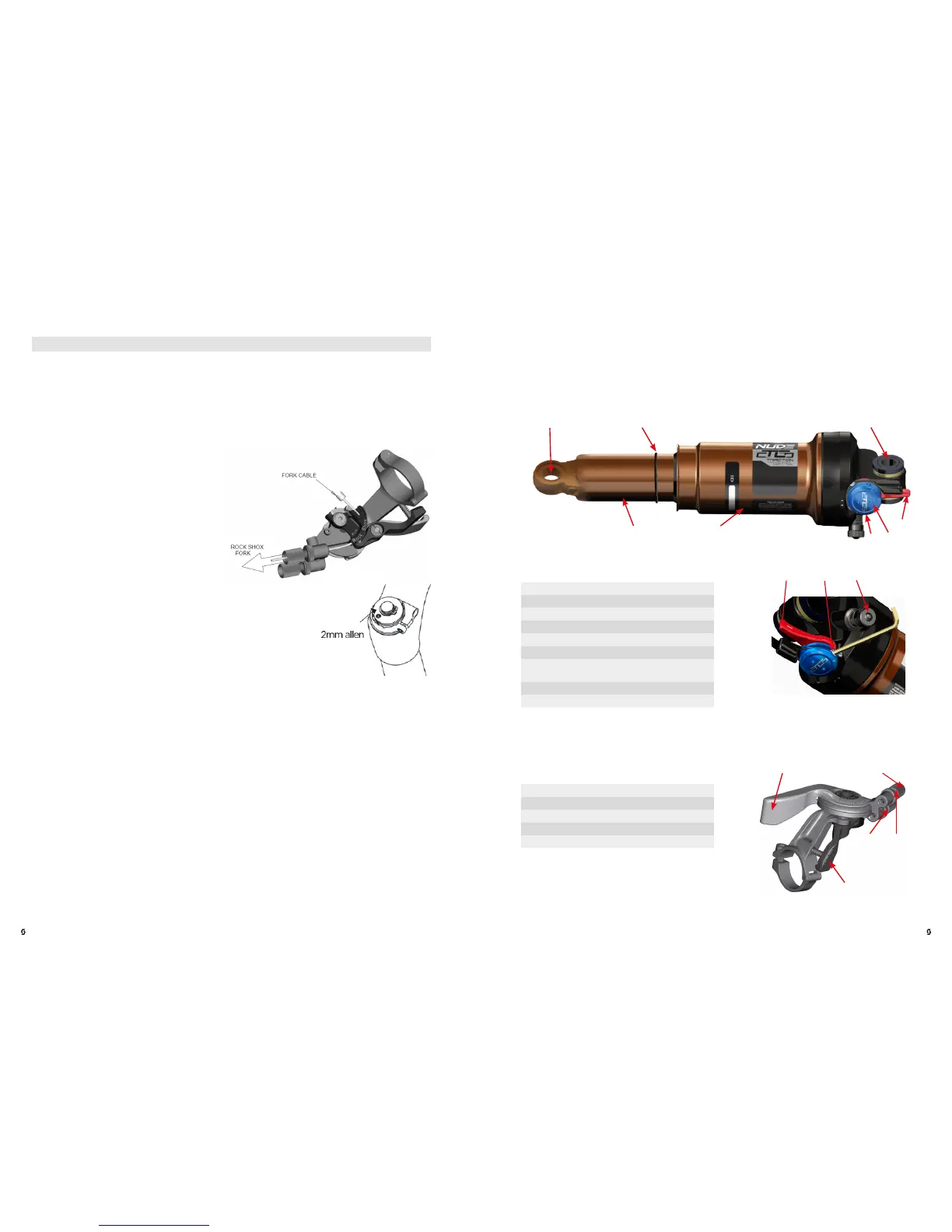

1. To assemble the cable please bring the
lever into the Descent Mode, push the
cable into the lever-eyelet as shown
on drawing below, push it through the
pre-cut cable housing and fix it at the
assembly unit on top of the right side of
the fork crown.
2. Fix the cable with the 2mm allen screw on the barrel adjuster
on the fork crown with a tightening torque of 0.9Nm/8 lb/in,
cut the cable and secure it with a cable end-cap. Please refer
for this action also to the manual of SRAM/RockShox or FOX
attached to the bike.
TIP:
To check for accurate cable tension, please try to move the plastic end cap of the cable
housing at the barrel adjuster on the remote lever. There should be “no-play” between cap
and barrel adjuster. In case of “play” please turn the barrel adjuster clockwise until “no-play”.
•
FOX NUDE SHOCK AND TWINLOC REMOTE CONTROL LEVER
In the drawing of the shock and remote lever, shown below, you will see the parts indicated
with numbers which will be used in the manual for the adjustment and setup.
Parts List
S1 Front eyelet/ Shock Bolt
S2 Rear eyelet/ Shock Bolt
S3 Shock Housing
S4 Rebound-Adjuster Knob
S5 Positive Chamber Valve
S6 Remote Control Wheel
S7
Cable Fixing Screw
(hidden behind remote wheel)
S8 Shock Piston
S9 SAG Indicator (o-ring on piston)
L1 Remote Lever
L2 Release button
L3 Remote Control Cables
L4 Cable Tension Screw Fork Remote
L5 Cable Tension Screw Shock Remote
