3
ENGLISH / PATRON TECH MANUAL
MY22 Patron eRIDE
Small Medium Large X/Large
A HEAD TUBE ANGLE
64.5° 65° 65° 65°
B HEAD TUBE LENGTH
120 mm 125 mm 135 mm 145 mm
C TOP TUBE HORIZONTAL
579.4 mm 595 mm 625.6 mm 656.4 mm
D STANDOVER HEIGHT
766 mm 766 mm 766 mm 766 mm
E BB OFFSET
-30.0 mm -30.0 mm -30.0 mm -30.0 mm
F BB HEIGHT
347 mm 347 mm 347 mm 347 mm
G WHEEL BASE
1221.7 mm 1231.7 mm 1263.7 mm 1295.4 mm
I BB CENTER TO TOP OF SEATTUBE
410.5 mm 440.5 mm 470.4 mm 500.4 mm
J SEAT ANGLE
77° 76.9° 76.9° 76.8°
K CHAINSTAY
454.0 mm 454.0 mm 454.0 mm 454.0 mm
L REACH
432.7 mm 445.8 mm 473.6 mm 501.2 mm
M STACK
634.8 mm 642.2 mm 651.3 mm 660.4 mm
N STEM LENGTH
50 mm 50 mm 60 mm 60 mm
P FORK LENGTH
567.1 mm 567.1 mm 567.1 mm 567.1 mm
Q MAX POST INSERTION
245 mm 265 mm 300 mm 320 mm
CRANK LENGTH
165 mm 165 mm 165 mm 165 mm
TRAIL
133.3 mm 129.5 mm 129.5 mm 129.5 mm

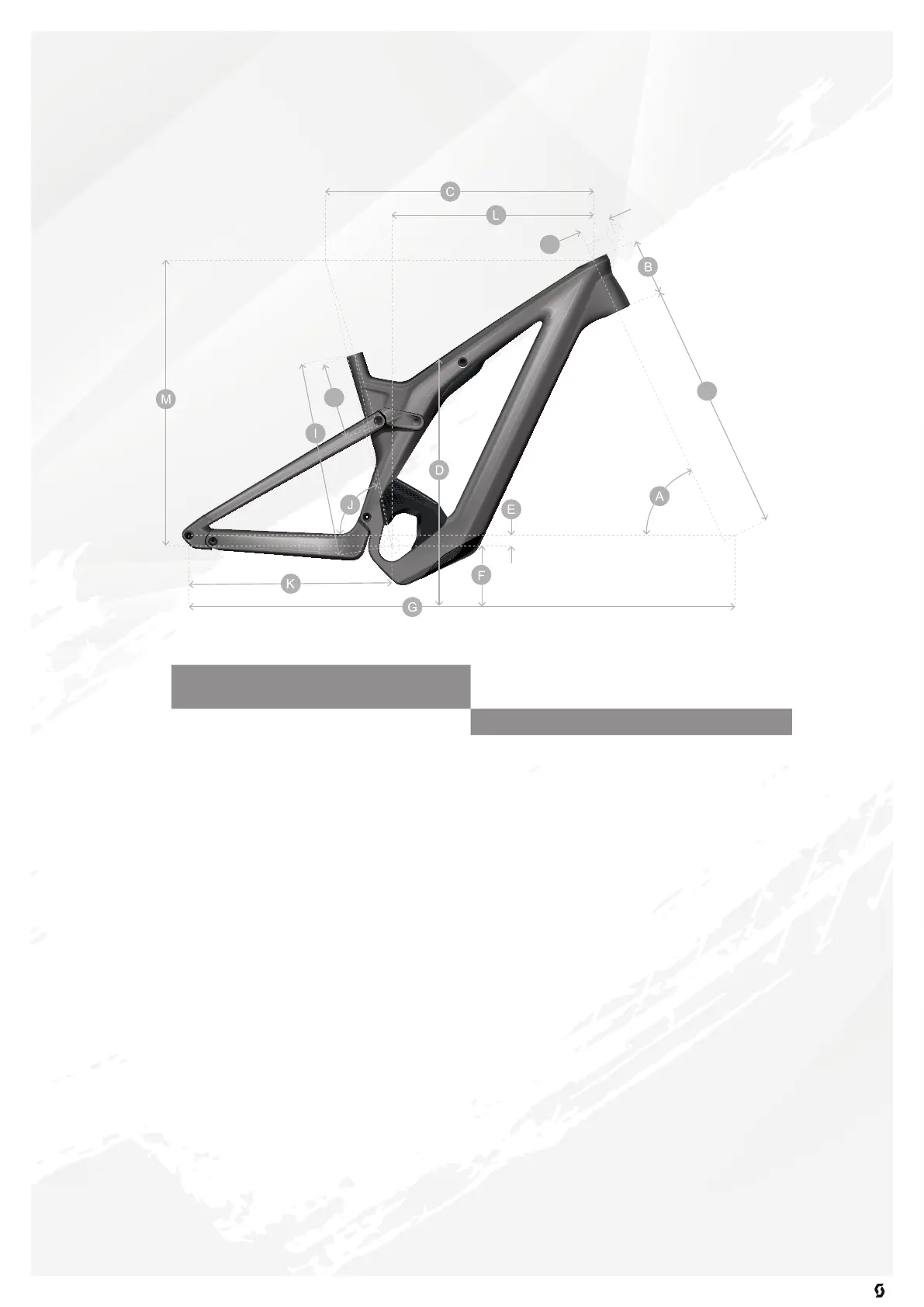

Geometry:
N
Q
P
