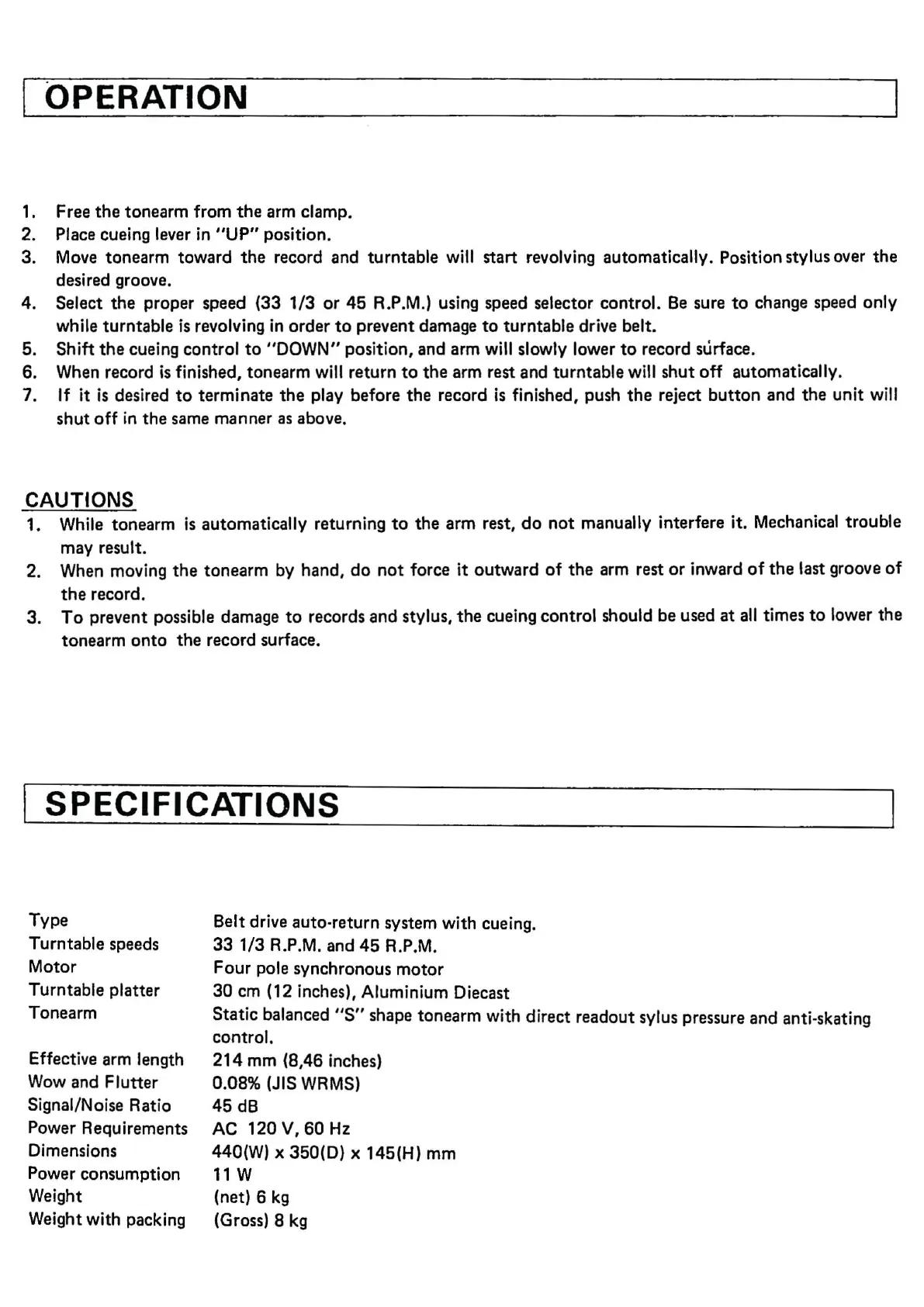

OPERATION
1. Free the tonearm from the arm clamp.
2. Place cueing lever in "UP" position.
3. Move tonearm toward the record and turntable will start revolving automatically. Position stylus over the
desired groove.
4. Select the proper speed (33 1/3 or 45 R.P.M.) using speed selector control. Be sure to change speed only
while turntable is revolving in order to prevent damage to turntable drive belt.
5. Shift the cueing control to "DOWN" position, and arm will slowly lower to record surface.
6. When record is finished, tonearm will return to the arm rest and turntable will shut off automatically.
7. If it is desired to terminate the play before the record is finished, push the reject button and the unit will
shut off in the same manner as above.
CAUTIONS
1. While tonearm is automatically returning to the arm rest, do not manually interfere it. Mechanical trouble
may result.
2. When moving the tonearm by hand, do not force it outward of the arm rest or inward of the last groove of
the record.
3. To prevent possible damage to records and stylus, the cueing control should be used at all times to lower the
tonearm onto the record surface.
SPECIFICATIONS
Type
Turntable speeds
Motor
Turntable platter
Tonearm
Effective arm length
Wow and Flutter
Signal/Noise Ratio
Power Requirements
Dimensions
Power consumption
Weight
Weight with packing
Belt drive auto-return system with cueing.
33 1/3 R.P.M. and 45 R.P. M.
Four pole synchronous motor
30 cm (12 inches), Aluminium Diecast
Static balanced "S" shape tonearm with direct readout sylus pressure and anti-skating
control.
214 mm (8,46 inches)
0.08% (JIS WRMS)
45 dB
AC 120 V, 60 Hz
440(W) x 350(0) x 145(H) mm
11 W
(net) 6 kg
(Gross) 8 kg
