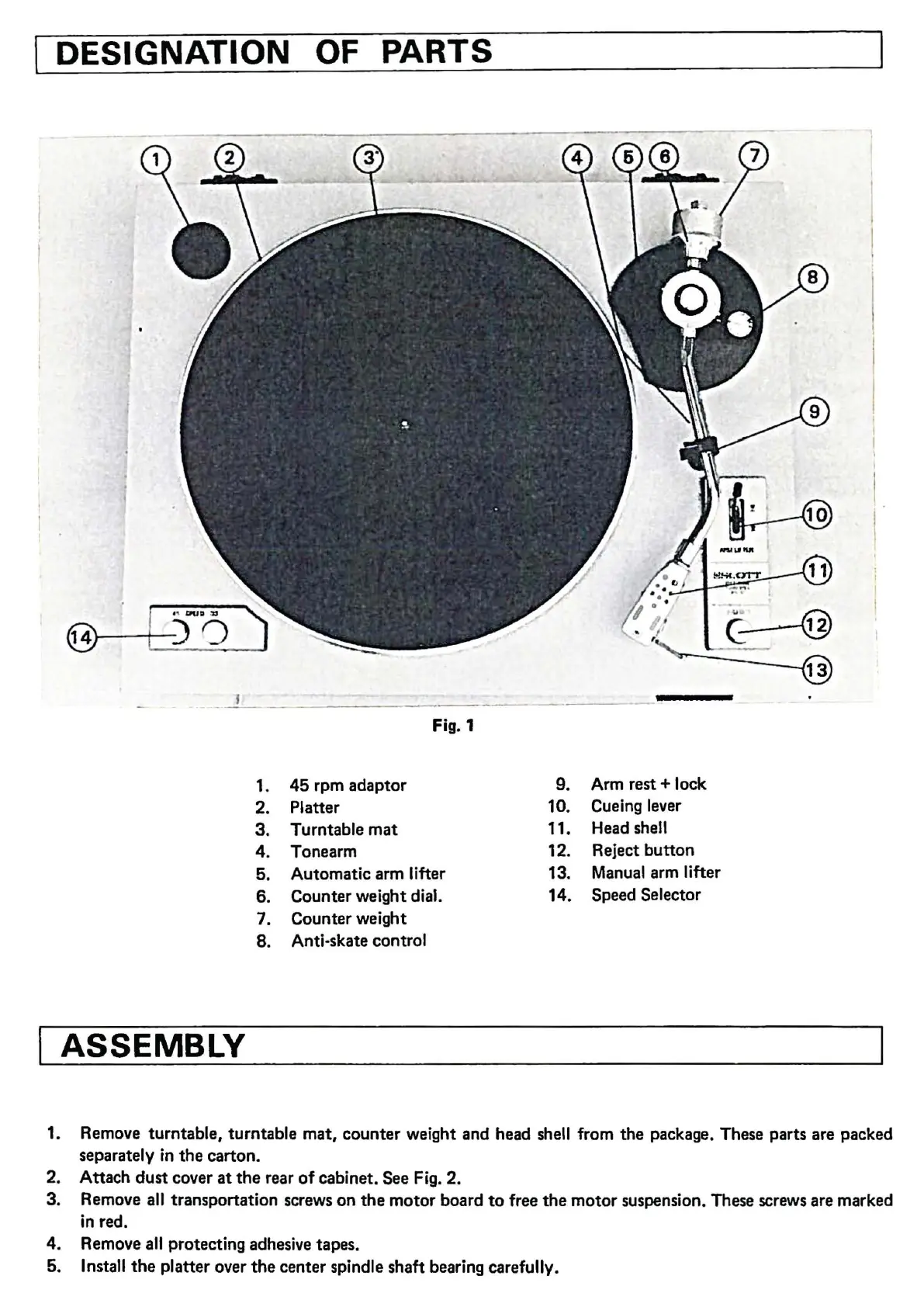

DESIGNATION
OF
PARTS
ASSEMBLY
1.
2.
3.
45
rpm adaptor
Platter
Turntable
mat
4.
Tonearm
fig.
1
5.
Automatic arm lifter
6. Counter weight dial.
7.
Counter weight
8.
Anti-skate control
• •
fJ
. .
• • I
1>
c--©
~
9.
Arm
rest+
lock
10.
Cueing lever
11.
Head shell
12.
Reject button
13.
Manual arm lifter
14.
Speed Selector
1. Remove turntable, turntable mat, counter weight and head shell from
the
package. These parts are packed
separately in
the
carton.
2. Attach
dust
cover
at
the
rear
of
cabinet. See Fig. 2.
3.
Remove all transportation screws
on
the
motor board
to
free
the
motor
suspension. These screws are marked
in red.
4. Remove all protecting adhesive tapes.
5. Install
the
platter over
the
center spindle shaft bearing carefully.
