ENGLISHENGLISH
27 |
ROAD BIKE | OWNER’S MANUAL 2017OWNER’S MANUAL 2017 | ROAD BIKE
| 26
You will feel an increasing resistance at the lever. Only turn the axle until it is
hand-tight.
Make sure the RWS quick-release lever does not stand out to the front (d).
Open the RWS quick-release lever a little (e, position 1) to bring it into a favour-
able position. Turn the RWS quick-release lever then into the desired position (e,
position 2) and re-close it towards the hub (e, position 3).
Actuate the brake lever to make the brake work. Lift the wheel and give it a
strong tap from above. The wheel must be securely fixed and must not rattle.
Wheel removal
Turn the quick-release lever anticlockwise to open the RWS system. Release the
thru axle completely by two and a half turns, hold the wheel in its position and
remove the axle from the hub.
DANGER!
G
Improperly mounted wheels may throw you off your bike or result in
serious accidents! Therefore, if you have the slightest doubt, contact your
SCOTT dealer and ask him to explain the system of your SCOTT bike to you.
DANGER!
G
After wheel mounting test the brakes in stationary. You should reach the
pressure point of the brake before the brake lever reaches the handlebars.
In the case of hydraulic brakes pump them, if necessary, until you reach a pre-
cise pressure point (f).
DANGER!
G
Do not open the red screw to open or close the RWS system.
NOTE!
I
Before mounting or replacing a fork/wheel combination with thru-axle
system, be sure to read first the manuals of the respective fork or wheel
manufacturer on this SCOTT info CD. More information are also provided at
www.dtswiss.com
THRU AXLES ON THE SCOTT BIKE

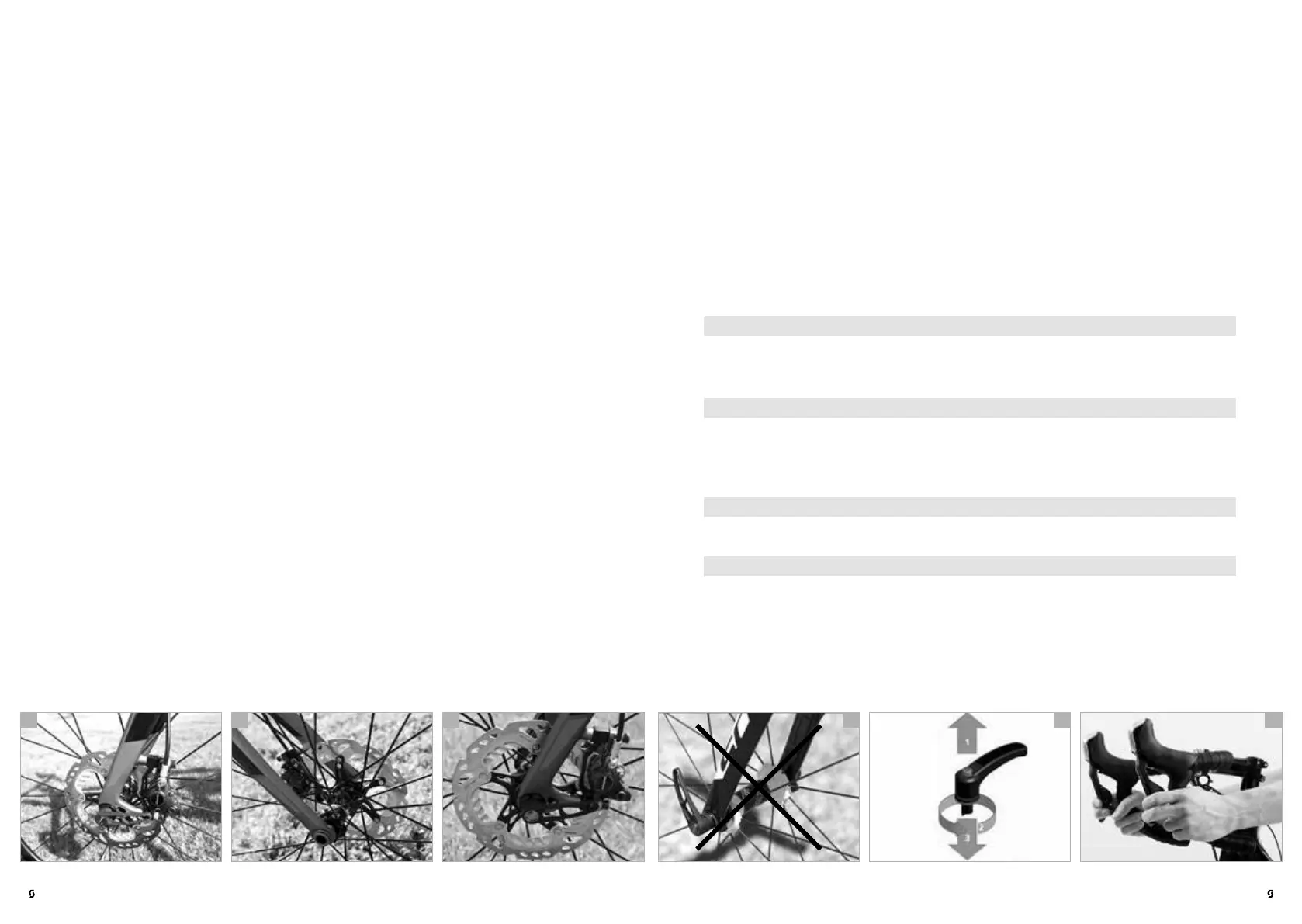

The RWS system from DT Swiss (a-c) for road racing and cyclo-cross racing
bikes used by SCOTT are thru axles which provide the forks and the rear frames
with a higher stiffness. Whenever your SCOTT bike is exposed to high loads, it
remains directionally stable.
In the case of SCOTT road or cyclo-cross bikes with disc brakes the RWS
system is screwed on the right side. The system has a larger thread and can be
released with no more than two and a half turns. Make sure during the assembly
that the thru axles, the drop-outs of the fork and the hubs are clean. Clean the
components with an absorbent cloth, if necessary, by using water and a little
detergent.
In case you do not succeed in adjusting and fixing the wheel, as described, con-
tact your SCOTT dealer.
Safe fastening of components with a quick-release
Wheel mounting
Put the wheel into the fork or the rear frame and mount the rotor simultaneous-
ly, if necessary, in the brake calliper. Make sure that in the area of the rear wheel
the chain runs over the sprockets and over both pulleys of the rear derailleur.
Bring the front wheel into the right position between the drop-outs and slide
the thru axle with open quick-release lever from the left side through the drop-
out and the hub.
As soon as you have reached the opposite side, turn the thru axle clockwise
into the nut on the right side. Do not apply force, but make sure the axle thread
engages properly with the nut on the other side.
During the first turn you should be able to turn the RWS quick-release lever of
the thru axle nearly without resistance. If everything fits, turn the RWS quick-re-
lease lever all in all two and a half turns clockwise to pre-tighten the RWS
system.
b ca e fd
