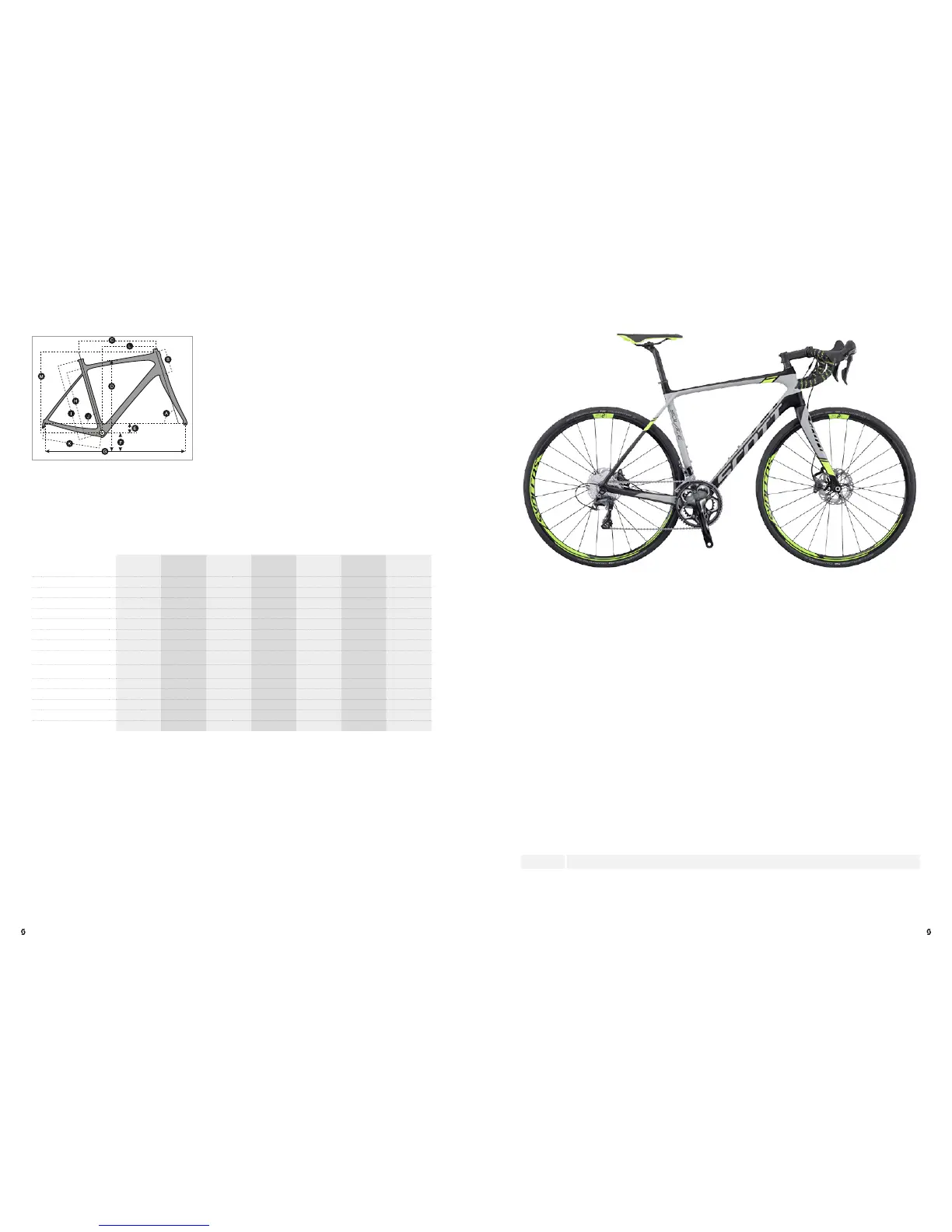

SCOTT Solace Disc User Manual

XXS/47 XS /49 S/52 M/54 L/56 XL/58 XXL/61
A HEAD TUBE ANGLE
70.5 ° 71.0 ° 72.0 ° 72.5 ° 73.0 ° 73.3 ° 73.3 °
B HEAD TUBE LENGTH
115.0 mm 4.5 in 125.0 mm 4.9 in 145.0 mm 5.7 in 165.0 mm 6. 5 in 185.0 mm 7.3 i n 205.0 mm 8.1 in 225.0 mm 8 .9 in
C TOP TUBE HORIZONTAL
505.0 mm 19.9 in 515.0 mm 20.3 in 530.0 mm 20.9 in 545.0 mm 21.5 in 560.0 mm 22.0 in 575.0 mm 22.6 in 590.0 mm 23.2 in
D STANDOVER HEIGHT
725.3 mm 28.6 in 741.1 mm 29.2 in 767. 5 mm 30.2 in 787.5 mm 31.0 in 8 07. 5 mm 31.8 in 827. 1 m m 32.6 in 851.4 mm 33.5 in
E BB OFFSET
-67.0 mm -2.6 in - 6 7.0 m m -2.6 in - 6 7.0 mm -2.6 in - 67.0 mm -2.6 in - 67.0 mm -2.6 in -67. 0 mm -2.6 in - 6 7.0 mm -2.6 in
F BB HEIGHT
272.0 mm 10.7 in 272.0 mm 10.7 in 272.0 mm 10.7 in 272.0 mm 10.7 in 272.0 mm 10.7 in 272.0 mm 10.7 in 272.0 mm 10.7 in
G WHEEL BASE
973.1 mm 38.3 in 979.4 mm 38.6 in 981.2 mm 38.6 in 986.8 mm 38.9 in 991.6 mm 39.0 in 999.0 mm 39.3 in 1’012.7 mm 39.9 in
H
BB CENTER TO TOPTUBE
CENTER
410.0 mm 16.1 in 430.0 mm 16.9 in 460.0 mm 18.1 in 480.0 mm 18.9 in 500.0 mm 19.7 in 520.0 mm 20.5 in 550.0 mm 21.7 in
I
BB CENTER TO TOP OF
SEATTUBE
470.0 mm 18.5 in 490.0 mm 19.3 in 520.0 mm 20.5 in 540.0 mm 21.3 in 560.0 mm 22.0 in 580.0 mm 22.8 in 610.0 mm 24.0 in
J SE AT ANG L E
75.0 ° 75.0 ° 74 .5 ° 74 .0 ° 73.5 ° 73.1 ° 73.0 °
K CH AINSTAY
405.0 mm 15.9 in 405.0 mm 15.9 in 405.0 mm 15.9 in 405.0 mm 15.9 in 405.0 mm 15.9 in 405.0 mm 15.9 in 405.0 mm 15.9 in
L REACH
366.6 mm 14.4 in 373.5 mm 14.7 in 377.3 mm 14.9 in 381.2 mm 15.0 in 384.6 mm 15.1 in 389.0 mm 15.3 in 397.0 mm 15.6 in
M S TACK
516.7 mm 20.3 in 527. 9 mm 20.8 in 550.5 mm 21.7 in 57 1.3 mm 22.5 in 592.3 mm 23.3 in 612.5 mm 24.1 in 631.6 mm 24.9 in
N STEM LENGTH
80.0 mm 3.1 in 90.0 mm 3.5 in 110.0 mm 4.3 in 110.0 mm 4.3 in 110.0 mm 4.3 in 120.0 mm 4.7 in 120.0 mm 4.7 in
ENGLISHENGLISH
•
GEOMETRY/TECHNICAL DATA SOLACE DISC
•
GENERAL FEATURES
The new Solace Disc shares the same general features as the Solace in terms of comfort and
performance on the road. The same technologies used for the Solace frame have been used
to design this new Solace Disc frame for even better braking performance and comfort.
Below are the Solace Disc specifications.
•
DISCS BRAKES SPECIFICATIONS
Solace Disc 2016 frame and fork will be Flat Mount front and rear. Size range for the front
disc is 140mm to 160mm, and the rear 140mm only.
•
CABLE ROUTING
Shifting cable routing is similar to Solace frames. Disc brake Hydraulic hoses routing are
internal for both fork and frame on Solace Disc frames.
Cableguide set SCOTT Part number:
239531 Cableguide set SolDisc >15 mec/Di2
05 |
BIKE USER MANUAL | SOLACE DISCSOLACE DISC | BIKE USER MANUAL
| 04

SCOTT Solace Disc Specifications

General

Wheel Size	700c
Stem	Syncros RR2.0
Frame Material	Carbon
Fork	Carbon
Brakes	Hydraulic Disc
Crankset	Shimano Ultegra, 50/34T
