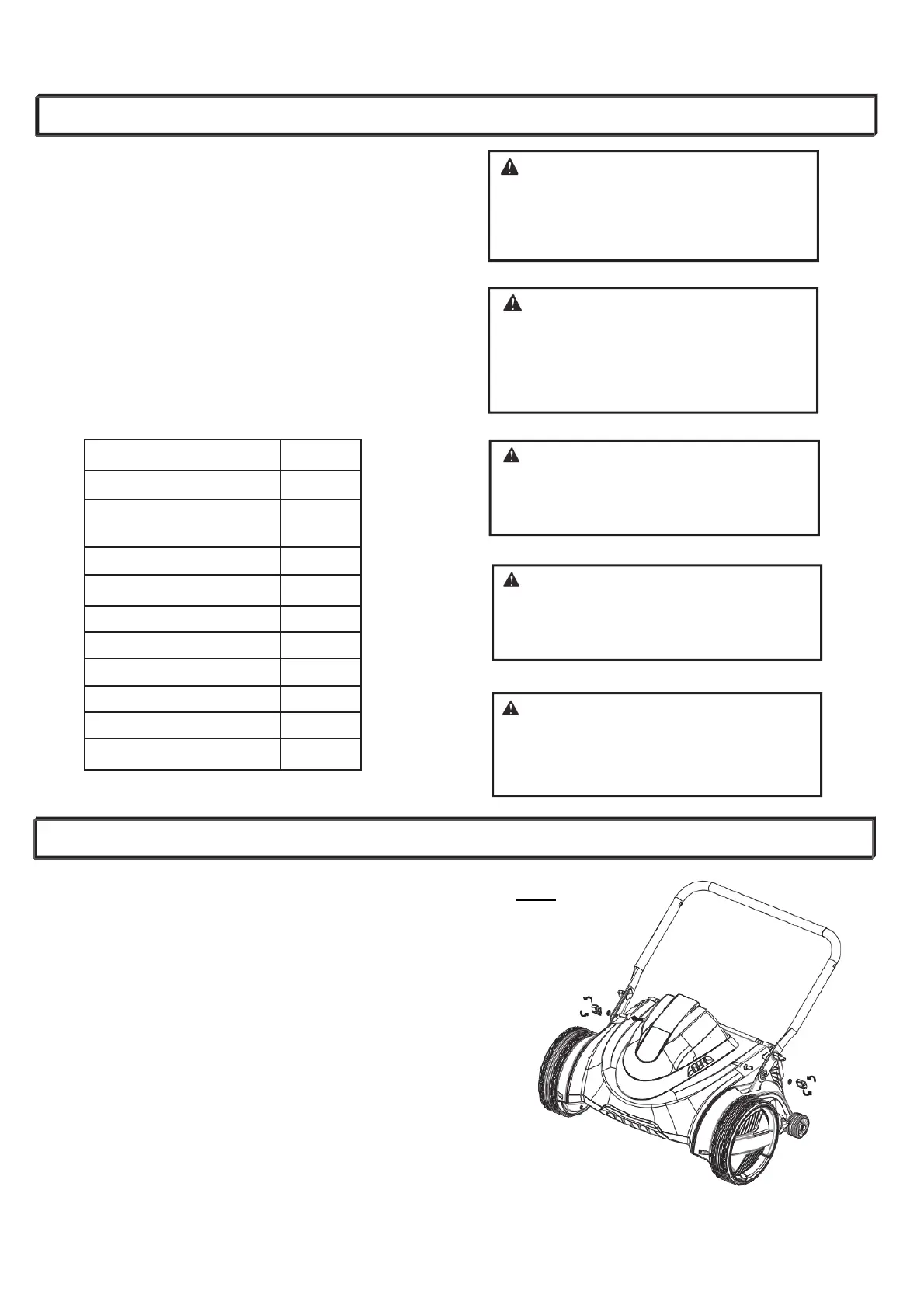

Scotts 2020-16S User Manual

UNPACKING
This product requires assembly.
 Carefully remove the product and any accessories from
the box. Make sure that all items listed in the packing
list are included.
 Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
 Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
 If any parts are damaged or missing, please call
1-800-618-7474 for assistance.
PACKING LIST
WARNING:
Do not insert switch key until assembly is complete.
Failure to comply could result in accidental starting
and possible serious injury.
WARNING:
Do not attempt to modify this product or create
accessories not recommended for use with this
product. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING:
If any parts are damaged or missing do not operate
this product until the parts are replaced. Failure to
heed this warning could result in serious personal
injury.
DANGER:
To prevent accidental starting do not make any
adjustments or installations with the switch key
inserted or batteries installed.
ASSEMBLY
WARNING:
Never operate the mower without the proper safety
devices in place and working. Never operate the
mower with damaged safety devices. Failure to heed
this warning can result in serious personal injury.
Description Quantity
Reel Lawn Mower 1
Switch Key (contained in
Hardware bag)
1
Upper Handle Assembly 1
Center Handle 1
Lower Handle 1
Hardware Bag 1
Grass Catcher 1
20V 2.0Ah Battery 1
20V Charger 1
Owner‘s manual 1
7
Model 2020-16S
ASSEMBLY
INSTALLING AND ADJUSTING HANDLE ASSEMBLY
See Figures 1 - 2
To install lower handle (Fig.1):
 Align the holes on the lower handle with the holes on
the supporting connection standing out of the deck.
Insert the bolts through the holes and secure them with
washers and handle lock knobs.
To install center handle (Fig.2):
 Line up the holes on both center handle and lower han-
dle and thread the bolts into the holes and secure them
by curved washers and handle lock knobs.
Fig. 1
