ASSEMBLY
CUTTING HEIGHT ADJUSTMENT

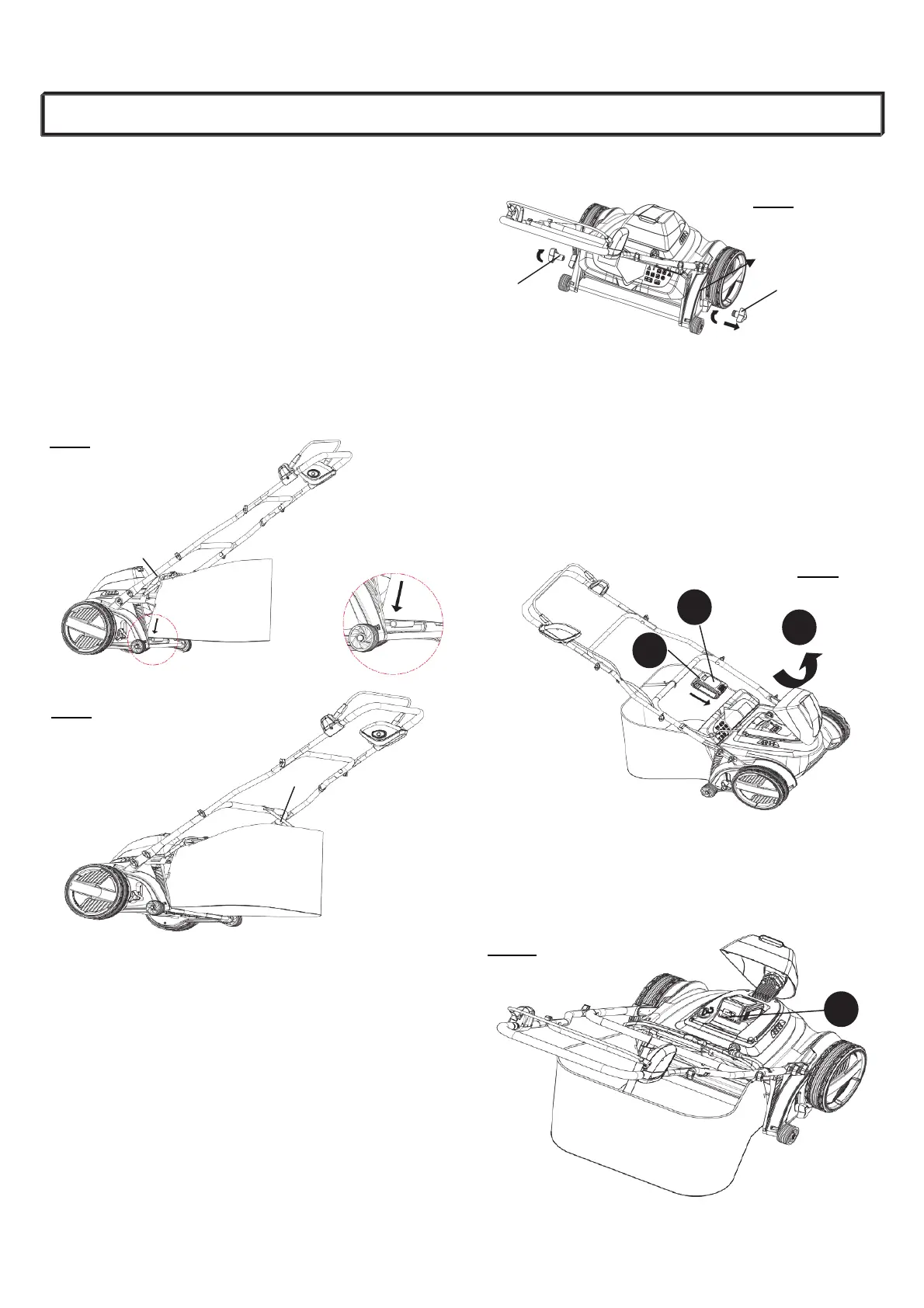

See Figure 8
When shipped, the wheels on the mower are set to a low-cutting
position. Before using the mower for the first time, raise the
cutting position to the height best suited for your lawn. The
average lawn should be between 1-1/2 in. to 2 in. during cool
months and 2 in. or higher during hot months.
To adjust the cutting height:
Remove switch key and battery pack.
To raise or lower the cutting height, loosen the height
adjustment lock knob (A) on the left side and then pull out
the height adjustment knob (B) on the right side. Move it up
and down to best suit your need. Once the best height is
achieved, release the knob on the right and re-tighten
the lock knob on the left. C is the highest blade setting.
INSTALLING THE GRASS CATCHER
(For Rear Bagging Operation)
See figure 6-7
Remove switch key and battery pack.
Lift the rear flap (A).
There are two sections of formed plastic grooves at
the front underside of the catcher. Snap the formed
section over the support tube, between the trailing
wheels of the mower.
Adjust the strap (B) to its appropriate length and then
attach hook to handle to suit your height and technique.
Release the rear flap.
Reinstall switch key and battery pack when you are
ready to mow.
9
Model 2020-16S
INSTALLING/REMOVING BATTERY PACK
See figure 9-10
To Install Battery Pack
Lift and hold up the battery cover (1).
Align the battery (2) with the mower’s battery port.
Make sure the battery release button (3) snaps in
place and that battery is fully seated and secure in
the mower before beginning operation.
If the machine is not going to be used immediately,
remove the battery.
To Remove Battery Pack
Release the bail wire to stop the mower.
Open the battery cover. Press the battery release
button (3) on the battery.
Remove battery from the mower.
A
Fig. 6
Fig. 7
B
A
B
C
Fig. 8
Fig. 9
1
2
3
3
Reinstall switch key and battery pack when you are
ready to mow.
Fig. 10
To Next Page
