Operating - 6
OPERATING

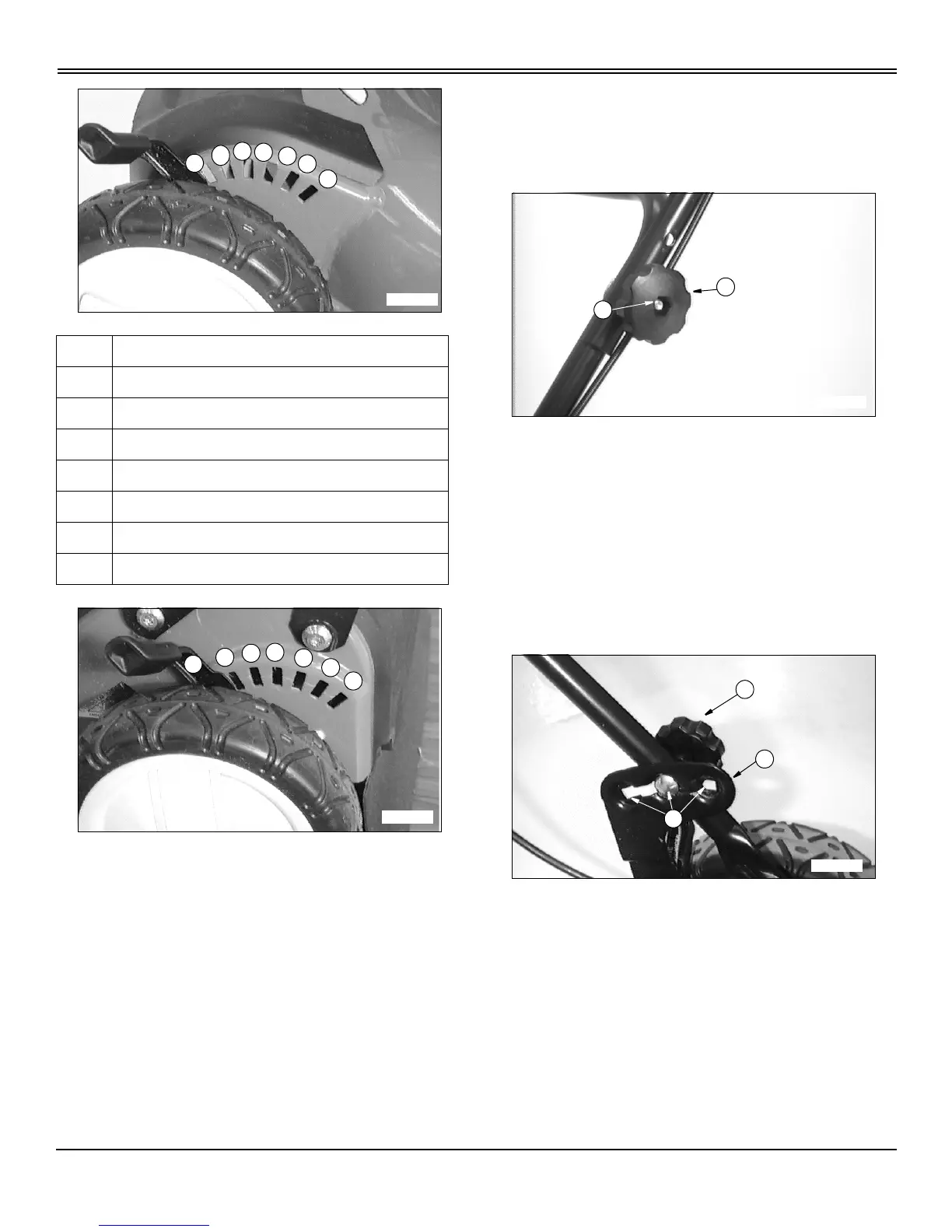

Adjusting Handle Height
Upper Handle:
NOTE: Upper handle height can be independently
adjusted to two positions.
1. Remove knob (A) and bolt (B) from each side of upper
handle.
2. Move handle to desired height.
3. Install bolt through matching holes in upper and lower
handles on each side.
4. Install and tighten knob (A).
Lower Handle:
NOTE: Lower handle height can be independently
adjusted to three positions.
1. Loosen knob (C) approximately 25 mm (1 in.) on each
side of handle.
NOTE: Carriage bolts must travel within slotted
adjustment brackets and come to rest within one of the
three height setting positions (E) before tightening.
2. Pivot handle to a desired height within slotted
adjustment bracket (D).
Key Cutting Height Adjustments In mm (Inches)
(A) 25mm(1in.)
(B) 38 mm (1-1/2 in.)
(C) 50mm(2in.)
(D) 64 mm (2-1/2 in.)
(E) 75mm(3in.)
(F) 90 mm (3-1/2 in.)
(G) 102 mm (4 in.)
A
B
C
D
E
F
G
M87101
A
B
C
D
E
F
G
M87102
A
B
M92146
M88835
C
D
E
