Service - 19
SERVICE
4. Inspect belt (E) for excessive wear or damage.

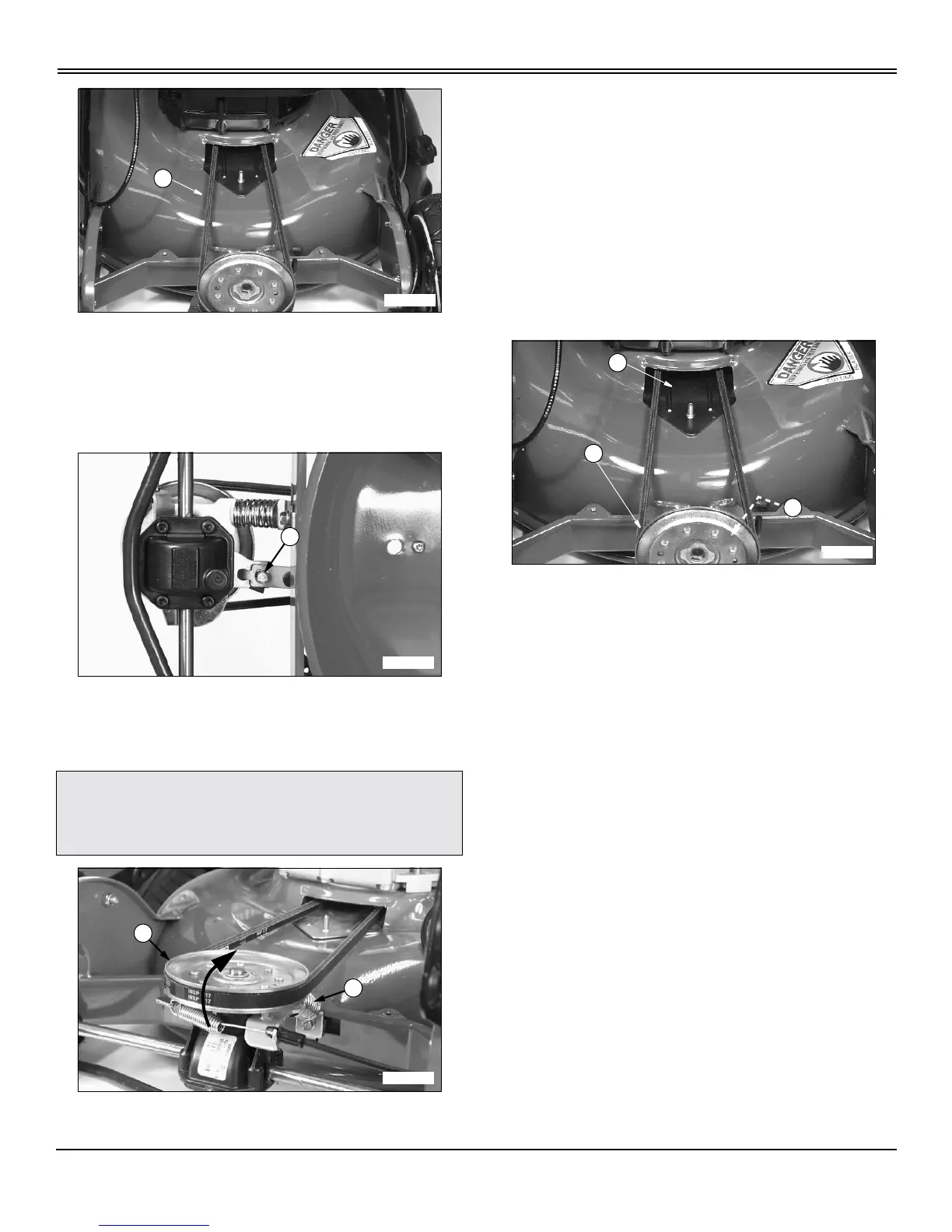

TO REPLACE DRIVE BELT:
NOTE: On model SP6211 only, the anti-rotation bracket
must be removed prior to pushing the drive sheave
forwardtoremovethedrivebelt.
Picture Note: View is from underside of differential.
1. Remove cap screw (F) and anti-rotation bracket.
2. Pushdrivesheave(G)forwardtorelievespringtension
on belt.
NOTE: Tension spring (H) may come loose when belt
is removed.
3. Remove belt from drive sheave.
4. Move belt into underside of mower deck.
5. Turn mower onto its LEFT SIDE.
6. Remove mower blade. (See Check Blade in this
section.)
7. Remove drive belt from blade sheave.
8. Install new drive belt to blade sheave.
9. Insert belt through deck opening (I).
10.Install tension spring (H) if removed.
11.Check that drive belt is installed on engine sheave.
12.Push drive sheave (J) forward and install belt to sheave.
13.Install anti-rotation bracket and secure with cap screw.
14.Install mower blade.
• Tighten mower blade bolt to 75 N•m(55lb-ft).
15.Lower mower.
16.Slide control cables into belt shield notch.
17.Install belt shield and connect spark plug wire.
cCAUTION: Avoid injury! Wear protective
eyewear when removing belt from drive sheave.
Tension spring may come loose.
M96557
E
MX1578
F
MX1576
H
G
M96554
J
H
I
