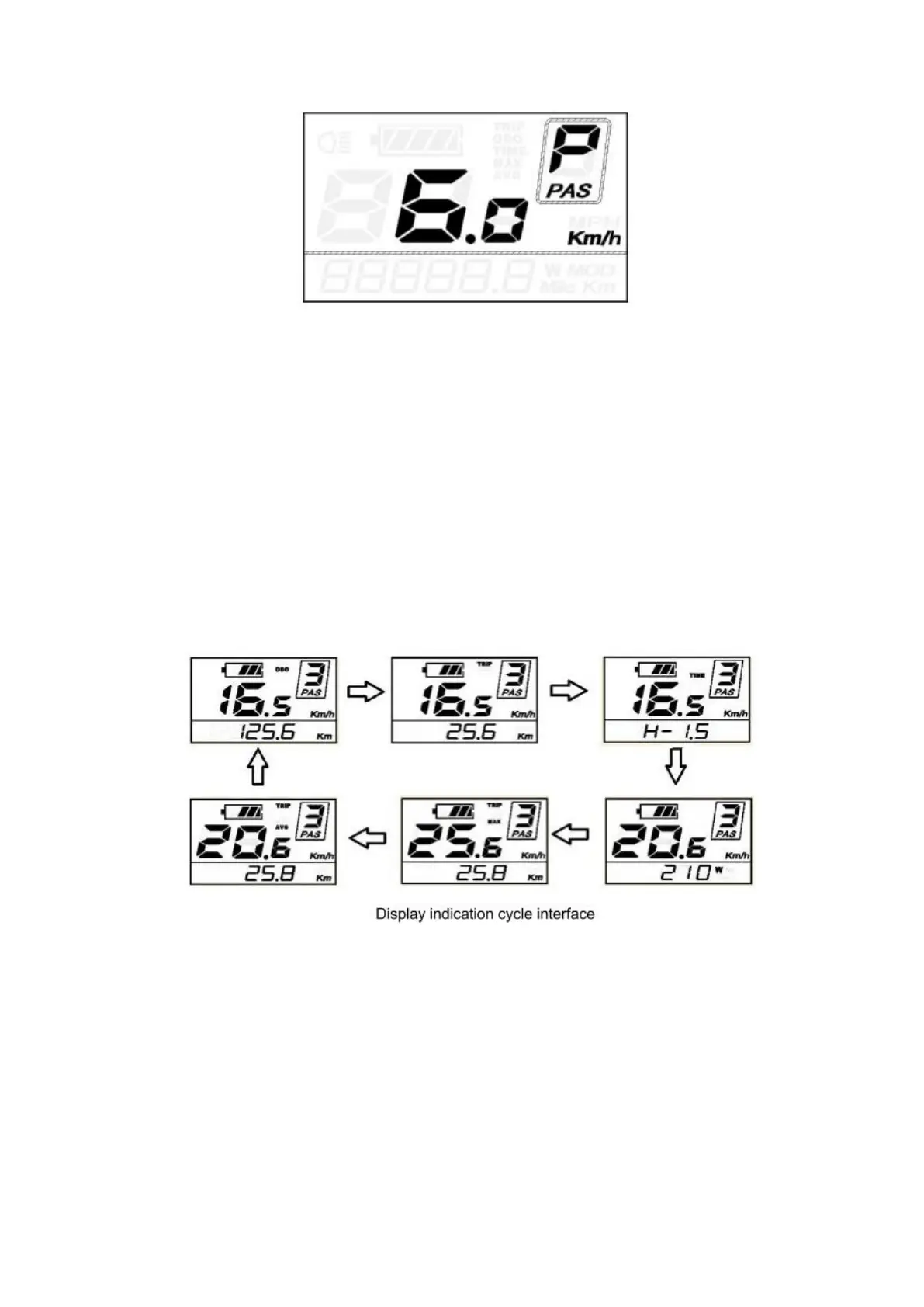

5.6 Display Interface
After switching on the E-bike system, the display shows Current Speed and ODO (total
distance) by default.
Press the ON/OFF button to switch between indication functions below:
ODO (Km)→ Trip (Km) → Trip Time (Hour) → Motor Power (W)→ Max. Speed (Km/h)
→ Avg.
Speed (Km/h) →ODO (Km). Finally, it cycles back to ODO km again.
5.7 Battery Indicator
The five battery power bars represent the capacity of the battery. The five battery bars
are bright when the battery is in full voltage. When the battery is in low voltage, battery
frame will flash at the frequency of 1HZ to give a notice that the battery needs to be
recharged immediately.
