Scully 280B Series User Manual

1-2
General Information Model 285B

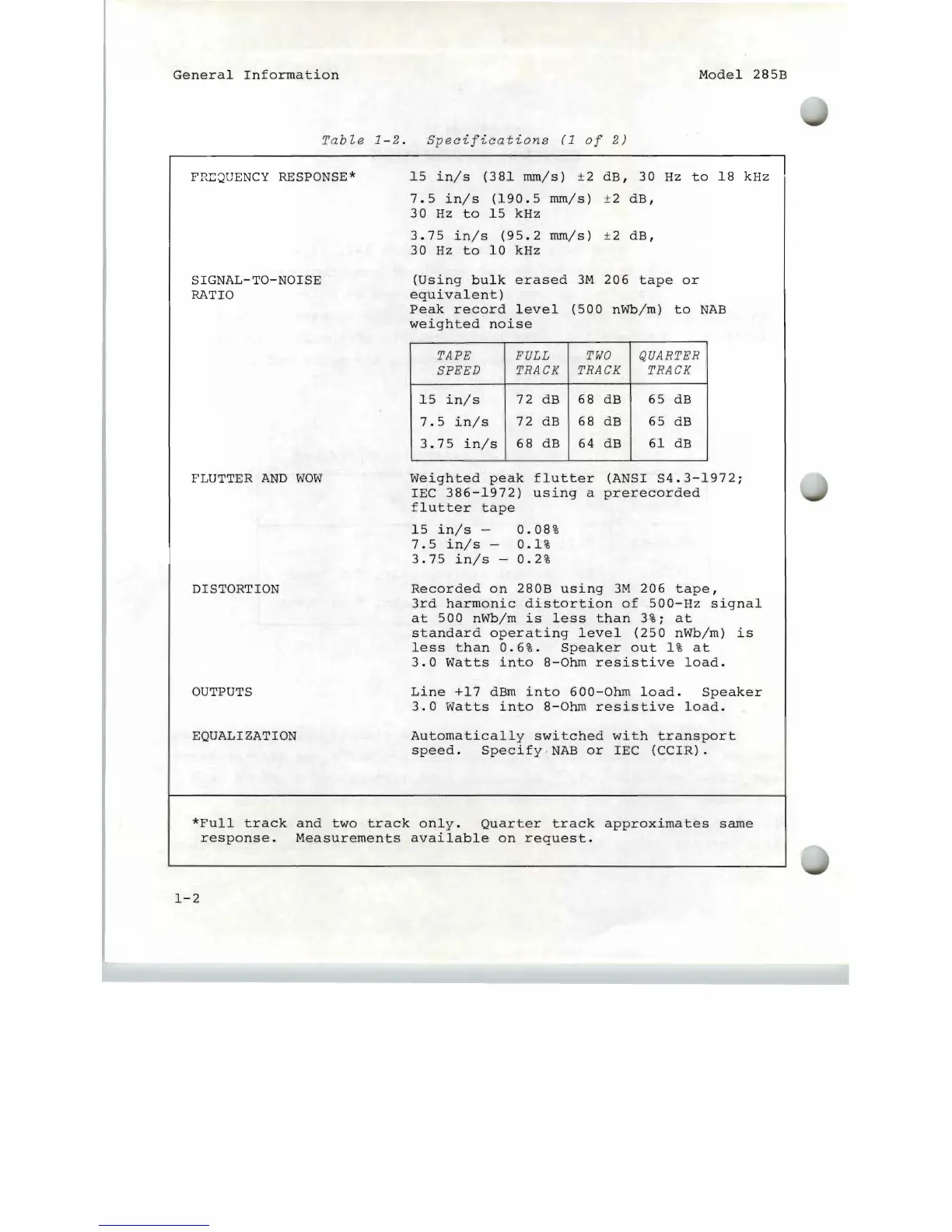

Table 1-2. Specifications (1 of 2)
FR~QUENCY RESPONSE* 15 in/s (381 mm/s) ±2 dB, 30 Hz to 18 kHz
7.5 in/s (190.5 mm/s) ±2 dB,
30 Hz to 15 kHz
3.75 in/s (95.2 mm/s) ±2 dB,
30 Hz to 10 kHz
SIGNAL-TO-NOISE
(Using bulk erased 3M 206
tape or
RATIO
equivalent)
Peak record
level
( 500
nWb/m) to NAB
weighted noise
TAPE
SPEED
FUL L
TRACK
TWO
TRACK
QUARTER I
TRACK
15
in/s
7.5 in/s
3.75
in/s
72
72
68
dB
dB
dB
68
68
64
dB
dB
dB
65
65
61
dB
dB
dB
FLUTTER
AND WOW Weighted peak
IEC 386-1972)
flutter tape
flutter
using a
(ANSI
S4.3-1972;
prerecorded
15 in/s - 0.08%
7.5 in/s - 0.1%
3.75 in/s - 0.2%
DISTORTION
Recorded on 280B using 3M 206 tape,
3rd harmonic distortion of 500-Hz signal
at 500 nWb/m is less than 3%; at
standard operating level (250 nWb/m) is
less than 0.6%. Speaker out 1% at
3.0 Watts into 8-0hm resistive load.
OUTPUTS Line +17 dBm into 600-0hm load. Speaker
3.0 Watts into 8-0hm resistive load.
EQUALIZATION Automatically switched with transport
speed. Specify NAB or IEC (CCIR).
*Full track and two track only. Quarter track approximates same
response. Measurements available on request.
