Scully 280B Series User Manual

Maintenance
Model
280B
* ONLY THE RIGHT·HAND
SCREW IS USED FOR
ADJUSTING
AZIMUTH.
LEGEND
1 ERASE HEAD MATCHING BOARD
8
PLAYBACK HEAD STACK ASSY
2
HEAD BRIDGE MOUNTING SCREWS
9
PLAYBACK HEAD SHIELD
3 HEAD BRIDGE
MOUNTING PLATE
10 SCRAPE FILTER ASSY
4 HEAD
ZENITH ADJUSTMENT ACCESS
11 RECORD HEAD STACK ASSY
5 HEAD
AZIMUTH ADJUSTMENT SCREW
12 ERASE
HEAD STACK ASSY
6 SCRAPE
FILTER ROTATION ADJUSTMENT SCREW
13 TAPE GUIDE
POSTS
7 HEAD ROTATION ADJUSTMENT SCREWS
14 INPUT TAPE GUIDE

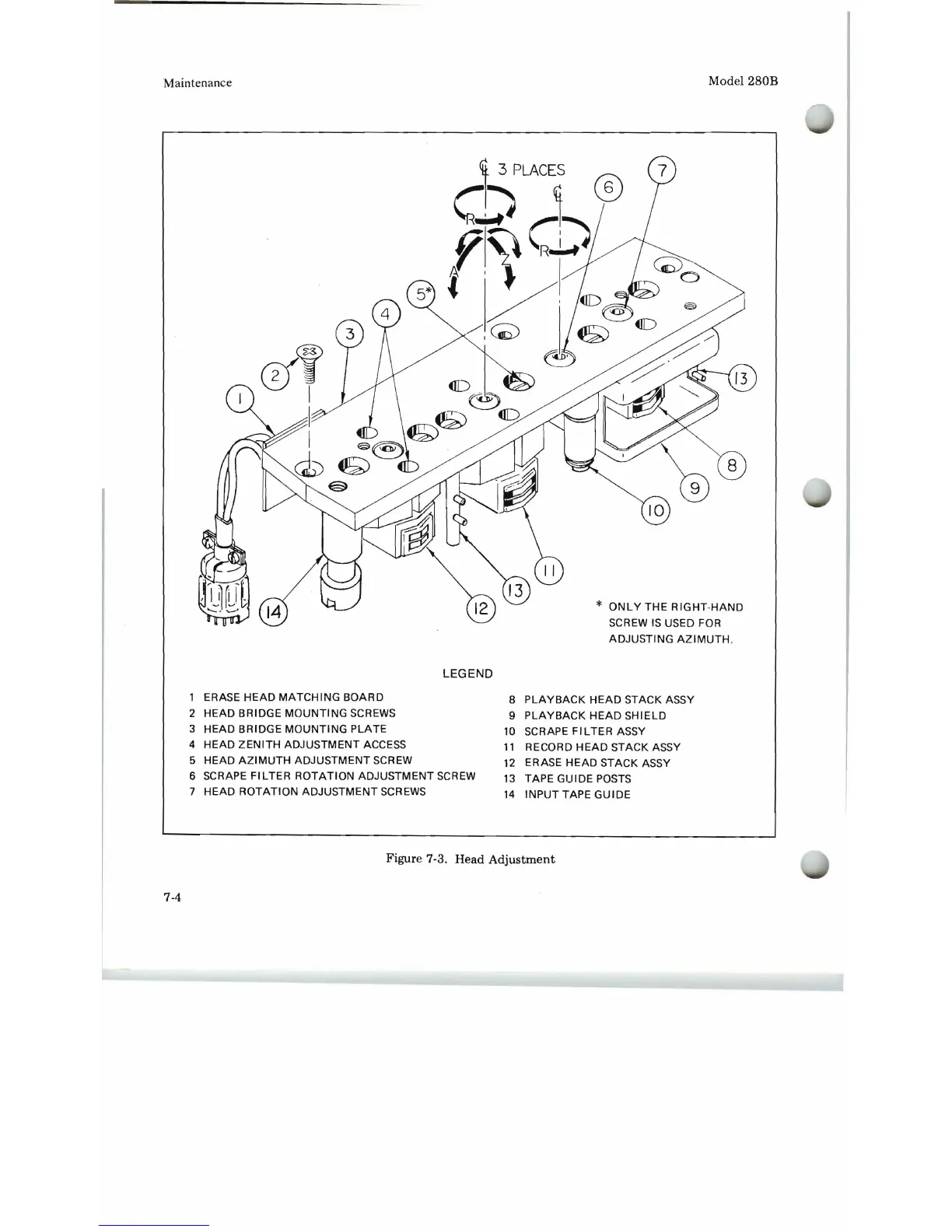

Figure 7-3. Head Adjustment
7-4
