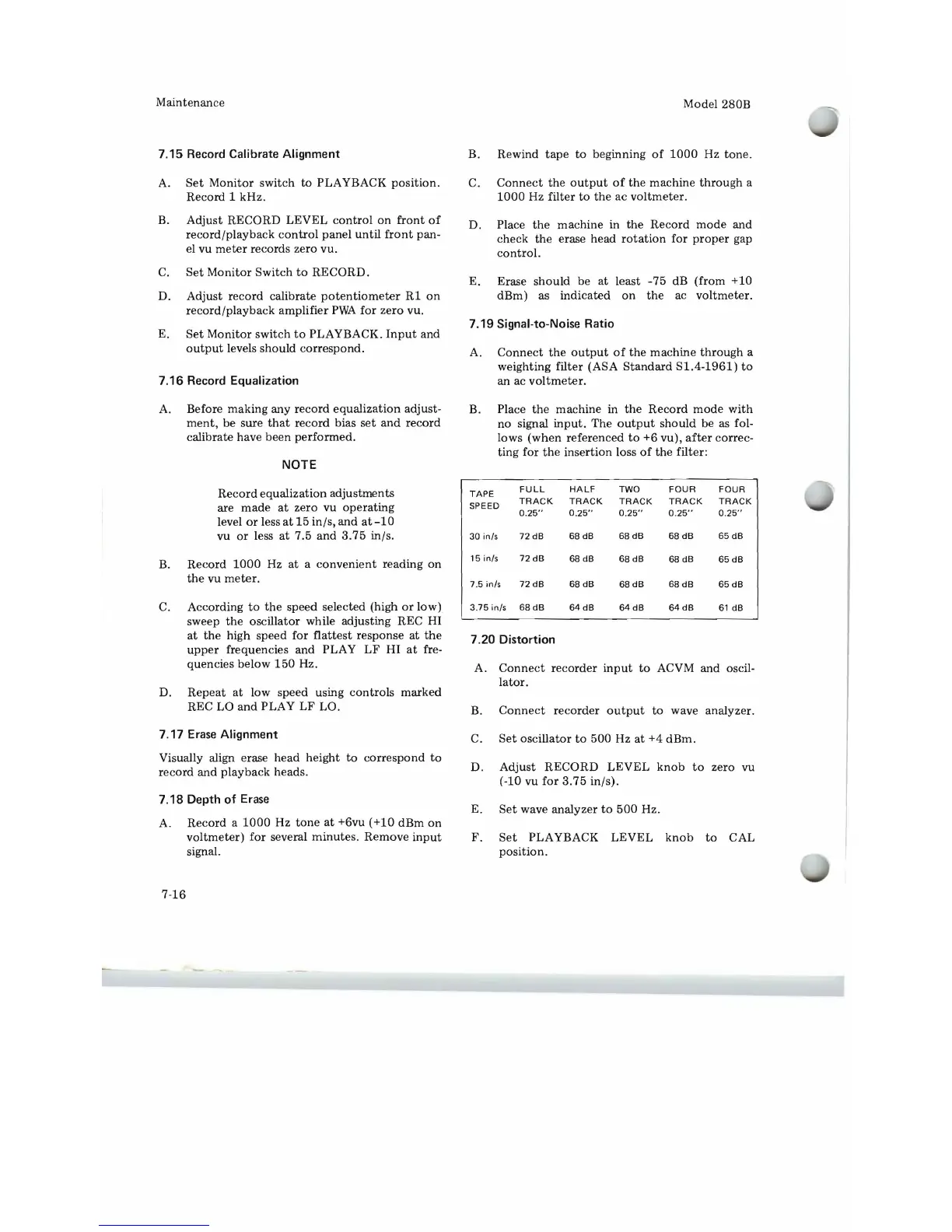

7-16
Maintenance
7.15
Record Calibrate Alignment
A.
Set
Monitor
switch
to
PLAYBACK
position.
Record
1
kHz.
B.
Adjust
RECORD
LEVEL
control
on
front
of
record/playback
control
panel
until
front
pan-
el vu
meter
records
zero
vu.
C.
Set
Monitor
Switch
to
RECORD.
D.
Adjust
record
calibrate
potentiometer
R1
on
record/playback
amplifier
PWA
for
zero
vu.
E.
Set
Monitor
switch
to
PLAYBACK.
Input
and
output
levels should
correspond.
7.16
Record Equalization
A.
Before
making
any
record
equalization
adjust-
ment,
be sure
that
record
bias
set
and
record
calibrate have
been
performed.
NOTE
Record
equalization
adjustments
are
made
at
zero
vu
operating
level
or
less
at
15
in/s,
and
at
-10
vu
or
less
at
7.5
and
3.75
in/s
o
B. Rec
ord
1000
Hz
at
a
convenient
reading
on
the
vu
meter.
C. According
to
the
speed
selected (high
or
low)
sweep
the
oscillator while adjusting REC HI
at
the
high speed
for
flattest
response
at
the
upper
frequencies
and
PLAY
LF
HI
at
fre-
quencies
below
150
Hz.
D.
Repeat
at
low speed using
controls
marked
REC
La
and
PLAY
LF
La.
7.17
Erase
Alignment
Visually align erase
head
height
to
correspond
to
record
and
playback
heads.
7.18
Depth
of
Erase
A.
Record
a
1000
Hz
tone
at
+6vu
(+10
dBm
on
voltmeter)
for
several
minutes.
Remove
input
signal.
Model
280B
B. Rewind
tape
to
beginning
of
1000
Hz
tone
.
C.
Connect
the
output
of
the
machine
through
a
1000
Hz
filter
to
the
ac
voltmeter
.
D. Place
the
machine
in
the
Record
mode
and
check
the
erase
head
rotation
for
proper
gap
control.
E. Erase
should
be
at
least
-75
dB
(from
+10
dBm)
as
indicated
on
the
ac
voltmeter.
7.19
Signal-to-Noise Ratio
A.
Connect
the
output
of
the
machine
through
a
weighting filter (ASA
Standard
S1.4-1961)
to
an
ac
voltmeter.
B. Place
the
machine
in
the
Record
mode
with
no
signal
input. The
output
should
be as fol-
lows
(when
referenced
to
+6
vu),
after
correc-
ting
for
the
insertion
loss
of
the
filter:
TAPE
SPEED
FULL
TRACK
HALF
TRACK
TWO
TRACK
FOUR
TRACK
FOUR
TRACK
0.25"
0.25"
0.25"
0.25"
0.25"
30
in/s
72
dB
68
dB
68
dB
68
dB
65
dB
15 in/s 72
dB
68 dB
68
dB
68
dB
65
dB
7.5 in/s
72
dB
68
dB
68dB
68
dB
65
dB
3.75
in/s
68
dB
64
dB
64
dB
64
dB
61
dB
7.20
Distortion
A.
Connect
recorder
input
to
ACVM
and
oscil-
lator.
B.
Connect
recorder
output
to
wave analyzer.
C.
Set
oscillator
to
500
Hz
at
+4
dBm.
D.
Adjust
RECORD
LEVEL
knob
to
zero
vu
(-10 vu
for
3.75
in/s).
E.
Set
wave
analyzer
to
500
Hz.
F.
Set
PLAYBACK
LEVEL
knob
to
CAL
position.
