Step 6 Install air pipes and cables

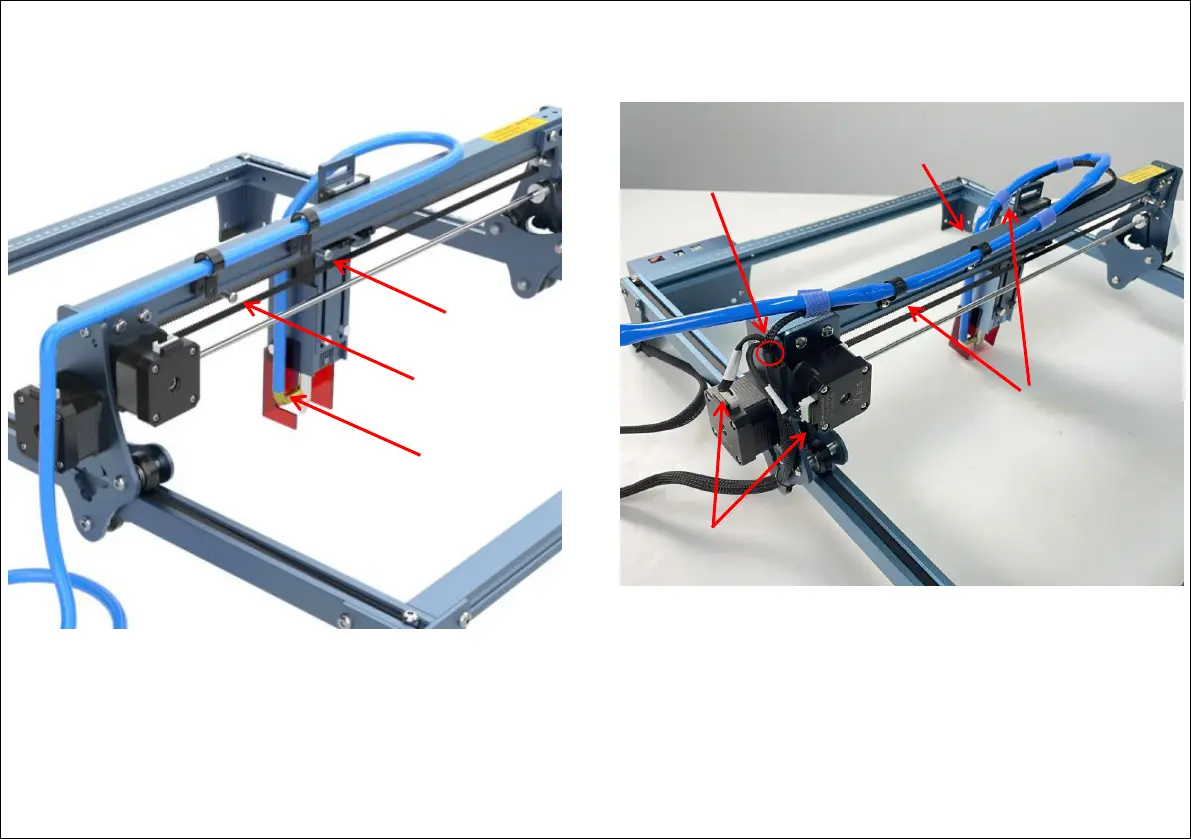

Install the blue air tube on the machine, fix it on
the X beam with screws and brackets, the air tube
is finally inserted on the nozzle, after installation
you need to slide the laser to confirm that the air
tube is in a loose state.
1. Connect the motor and cable, note: the X and Y motor
are marked on the terminals. Install the laser cable.
2. Fix the cable on the machine hole with black cable tie.
Keep cables slack.
3. Fix the air tube and cable with sticky strips to ensure that
they are tied together. Slide the lasers to confirm that they
are in a relaxed state.
1
1
2
3
