Step 3 Install the belt
Installation steps:

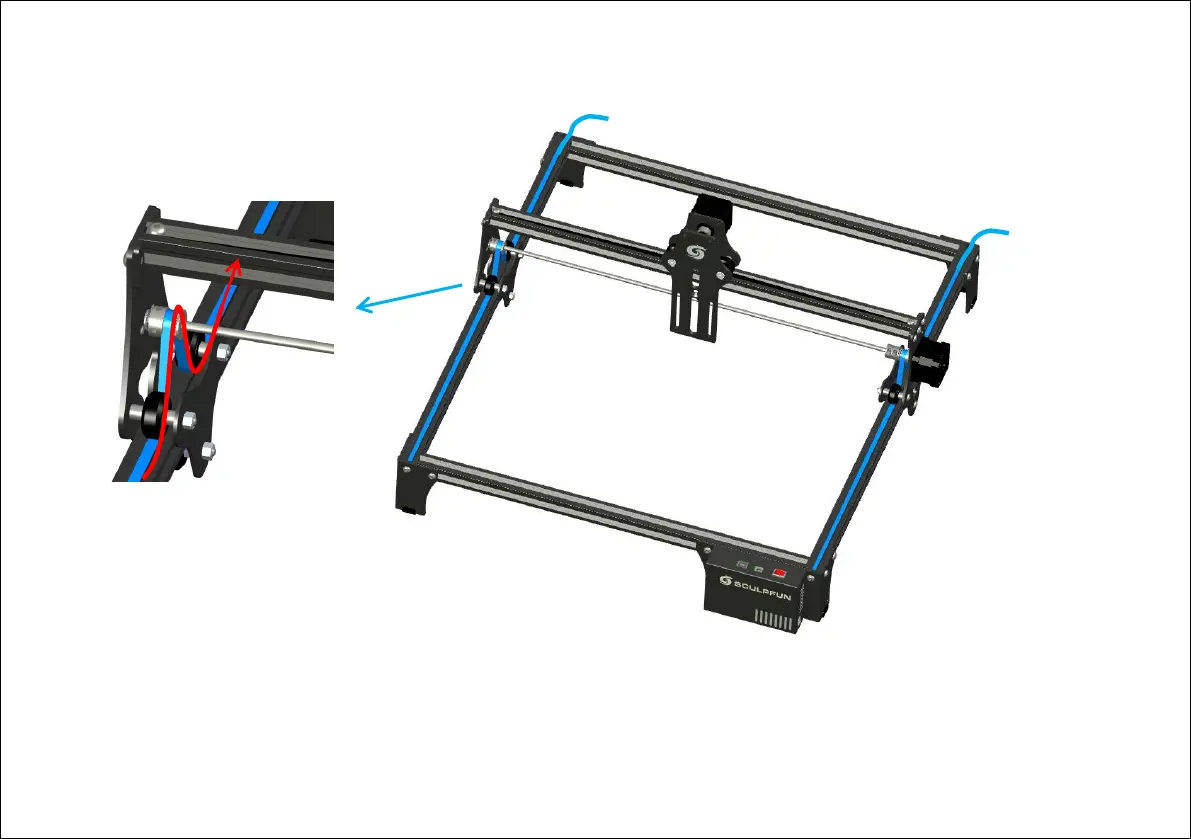

Install the belt to the position shown in the figure,note:
1. The belt should be installed in the direction of the arrow in the figure
above.
2. The tooth pattern of the belt faces downwards and engages with the
gears.
3. There should be an extra part of the belt at one end for easy pulling and
tightening of the belt. The extra belt can be cut off after the T-nut is fixed
in the next step4.
