P:\INSTALLATION INST\Delayed Egress\INST-1511ST\INST-1511ST.vsd Rev G7 02-19 Page 9

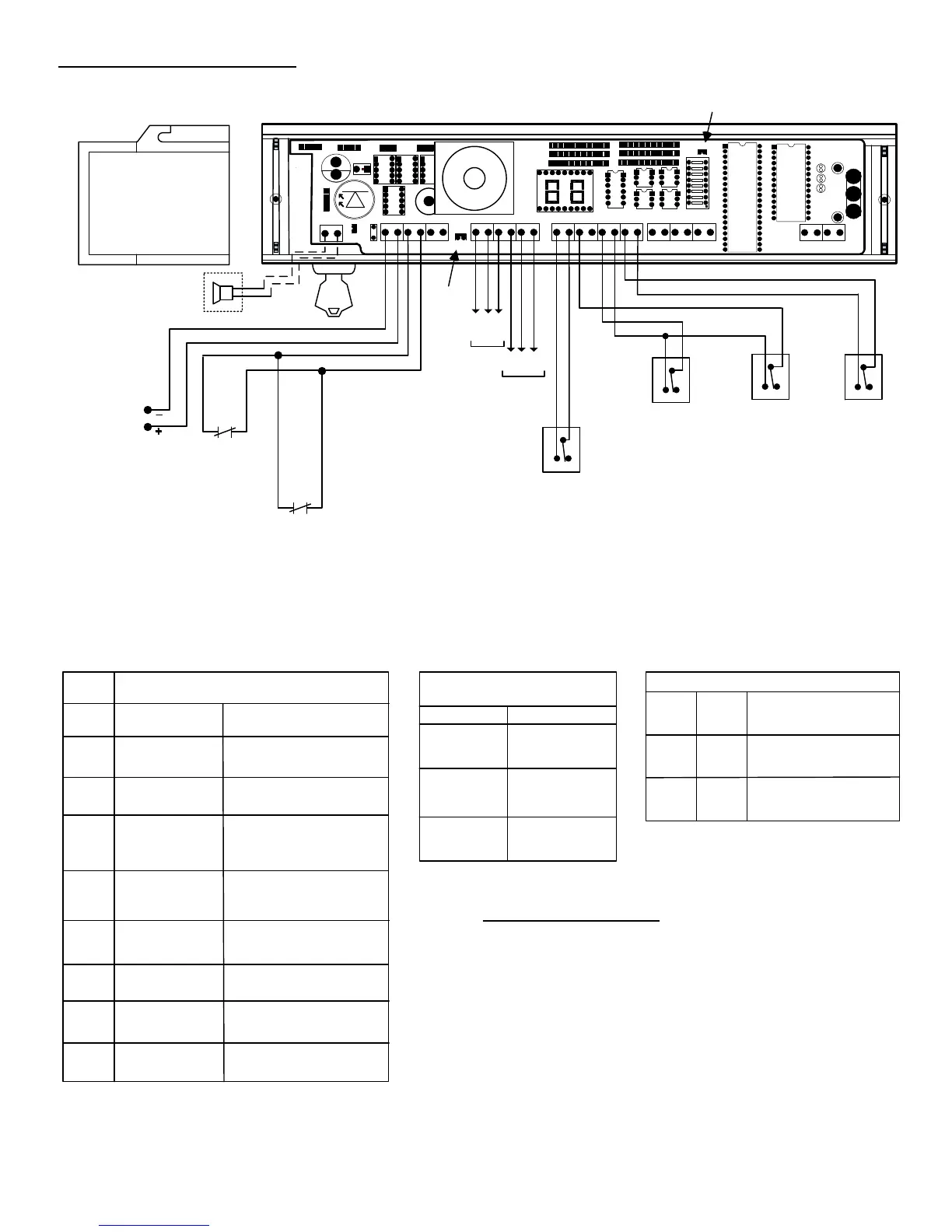

Wiring Details & Functions (ALL OPTIONS SHOWN)
REQUEST TO EXIT
KEY SWITCH OR
ACCESS
CONTROL
SYSTEM
(OPTIONAL)
REMOTE RESET
SWITCH
(OPTIONAL)
MONITOR RELAY
OUTPUTS
(OPTIONAL)
FIRE
ALARM
INPUT
(OPTIONAL)
REGULATED
POWER
SUPPLY
12VDC
OR 24VDC
Dry,
N/C
EXTERNAL
TRIGGER
SWITCH
OR
SDC REX PUSH BAR
(OPTIONAL)
SMOKE DETECTION
SYSTEM INPUT
(OPTIONAL)
Dry,
N/C
INSTANT
BYPASS
OVERRIDE
(OPTIONAL)
TERMINAL BOARD CONNECTIONS
POWER IN -
POWER IN +
COM
N/C
AUX LOCK -
AUX LOCK +
N/O
COM
N/C
N/O
COM
N/C
N/O
COM
N/O
COM
N/O
COM
[PWR]
[FP]
[LOCK]
[GRN
RLY]
[RED
RLY]
[RM
TRIG]
[RESET]
[REX]
12 VDC OR 24 VDC
TO CLOSED FIRE/SMOKE
DETECTOR CONTACT
SLAVE/TANDEM LOCK
POWER TERMINALS
LOCK SECURE
OUTPUT
ALARM OUTPUT
EXTERNAL TRIGGER
SWITCH INPUT
EXTERNAL RESET
SWITCH INPUT
REQUEST TO EXIT
INPUT
[IBO]
INSTANT BYPASS OVERRIDE
INPUT
N/O
COM
JUMPER SETTINGS
JUMPER J6 (Fire Alarm Input) – Factory Installed. Remove
J6 only if a dry, normally closed contact from a fire alarm OR
smoke detector system is connected to the Fire Panel [FP]
terminals.
INSTALLED: The ExitCheck™ will enter the alarm mode if the
door is held open past the request to exit period.
REMOVED: The ExitCheck™ will remain unlocked if the door
is held open past the request to exit period. No alarm will
sound. The ExitCheck™ will relock and rearm upon closure of
the door.
JUMPER J7 (DOOR PROP)
MONITORING OPTIONS
DOOR POSITION
SWITCH
(DPS)
[DPS]
[BAS]
N/O
Com
N/C
[ATS]
ANTI-TAMPER SWITCH
(ATS)
BOND ALERT (BAS)
N/O
Com
N/C
N/O
Com
N/C
JUMPER
J6
C NC
-+ -+
NC NONO C
C NC
NO CNO C
NO C NO C
NO C
NC NO
C NC
[ BAS ]
[ DPS ]
[RESET][RM TRIG]
[REX]
[RED RLY][GRN RLY]
[ LOCK ]
[ FP ]
[ PWR ]
J6
J7
J2
[IBO]
[EXT SPKR]
REMOTE
SPEAKER
(OPTIONAL)
JUMPER
J7
GRN RLY = ON
RED RLY = OFF
ALARMED &
LOCKED
SECURE
MONITOR RELAY OUTPUT
CONFIGURATIONS
LOCK STATUS RELAY STATE
GRN RLY = ON
RED RLY = ON
GRN RLY = OFF
RED RLY = ON
ALARMED &
UNLOCKED
LOCK
SECURE
RLY
ALARM
RLY
To Next Page
