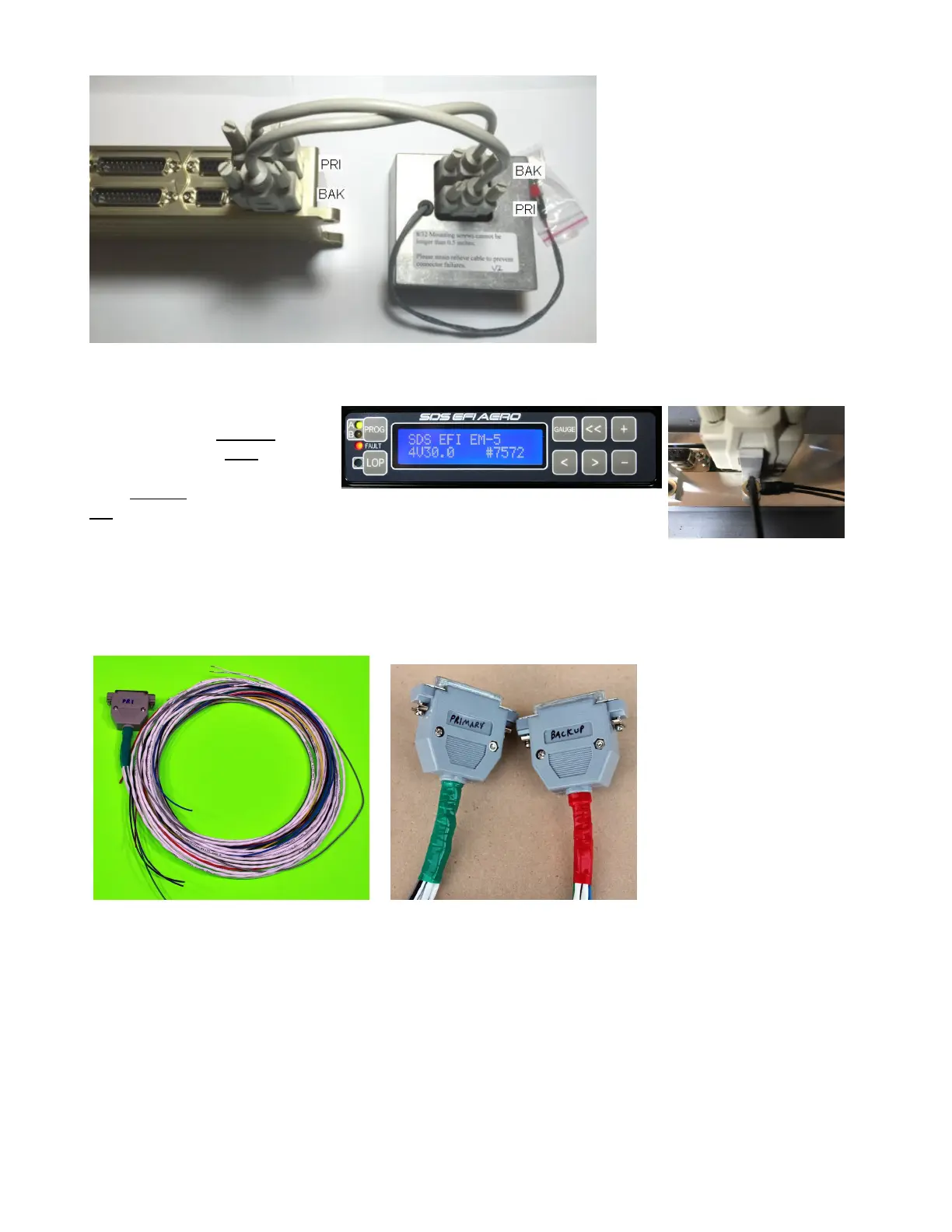

3-1/8” Programmer unit cable connections:
Dual board ECU with dual board programmer box and toggle switch. See end programming section
for details.
New for 2020, SDS EFI AERO
programmer the Primary ecu
cable goes to the right side
connector as viewed from the
rear. Backup ecu goes to the
left connector. The 2ft black wires goes to chassis ground for static
protection. L-brackets are to support the cable weight. Be sure they
contact the cable connector and adjust as needed. The L brackets have slotted holes.
Main Harness
Shown here has a 25 pin connector and connects the ECU to all the sensors. Right photo shows color
coded main harnesses for dual ECU systems. Green for Primary, red for Backup.
