DB25 Main Harness connections for each wire & cable

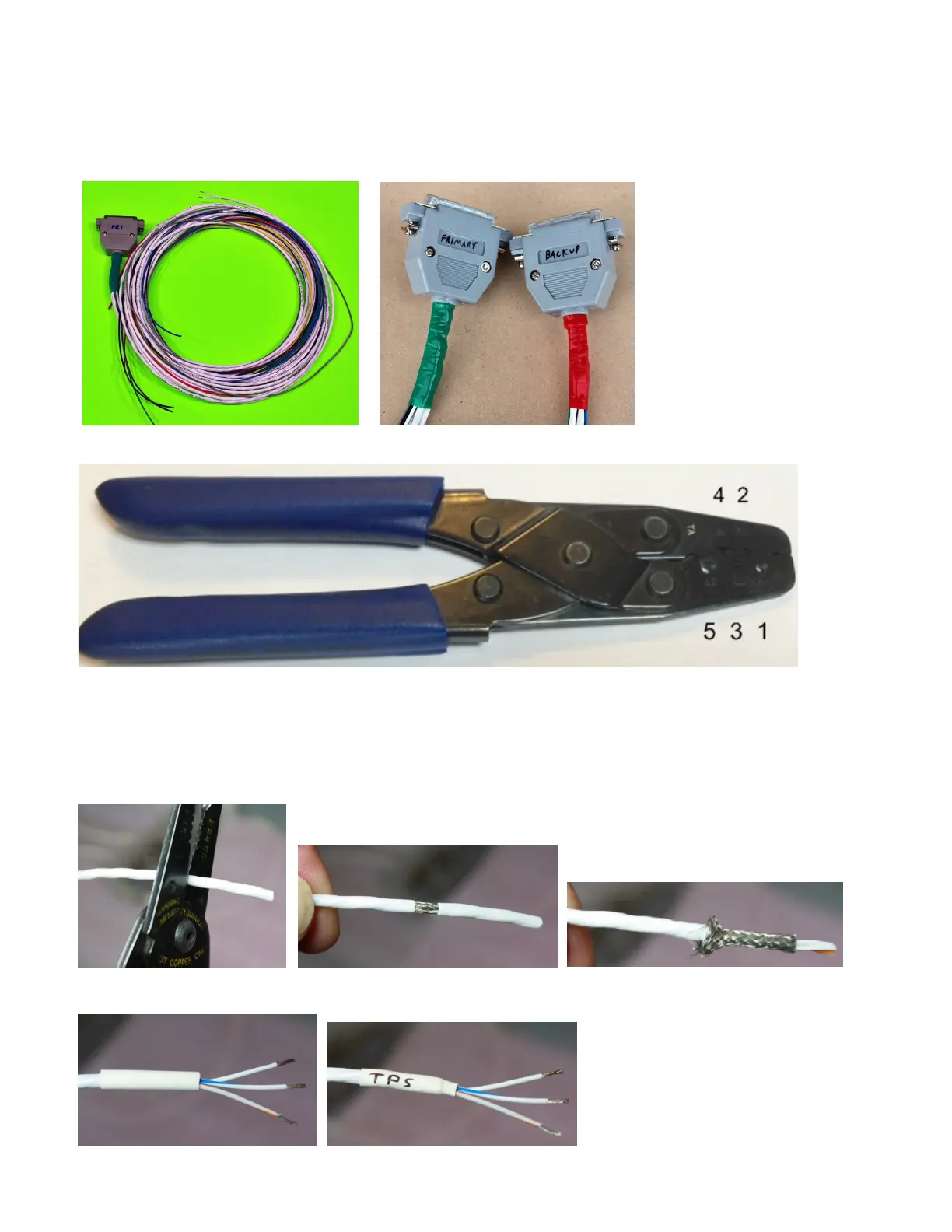

Shown here has a 25 pin connector and connects the ECU to all the sensors. Right photo shows color
coded main harnesses for dual ECU systems. Green for Primary, red for Backup. It is very likely you will
purchase the system with an unterminated DB25 main harness so each wire/cable can be cut to length
then terminals can be crimped onto each wire.
Recommended Crimp Tool for Main Harness terminal crimping
CrimpSupply.com P/N 18910 Designed for Weatherpack also works well for all terminals supplied.
Crimp details below.
Tefzel general wire stripping info
See throughout DB25 harness section for specific cables recommended strip lengths.
Score the outer sheath insulation down to the braid without cutting through the braid.
Pull the insulation forward. Compress braid downwards so it bunches up
Using sharp cutters, cut the braid all around the cable. Remove braid and strip conductor insulation
