26
COIL Cable 4cyl, Coil cable wire colors:
All white to #1 side of the coil pack. Blue stripe to other side of coil pack.
Strip length on wire should be 5/16” and the fold the wire over this helps the crimp hold better.
Crimp using the #3 crimp slot first then #2 to tighten up the crimp.
The Red wire on the coilpack connector needs to be run to your Coil Switch on the instrument panel. If
2
nd
coilpack then its Red wire to a 2
nd
Coil Switch on the instrument panel. Black wire to a grounding
buss in the cockpit, do not ground on the engine due to heat and vibration reasons.

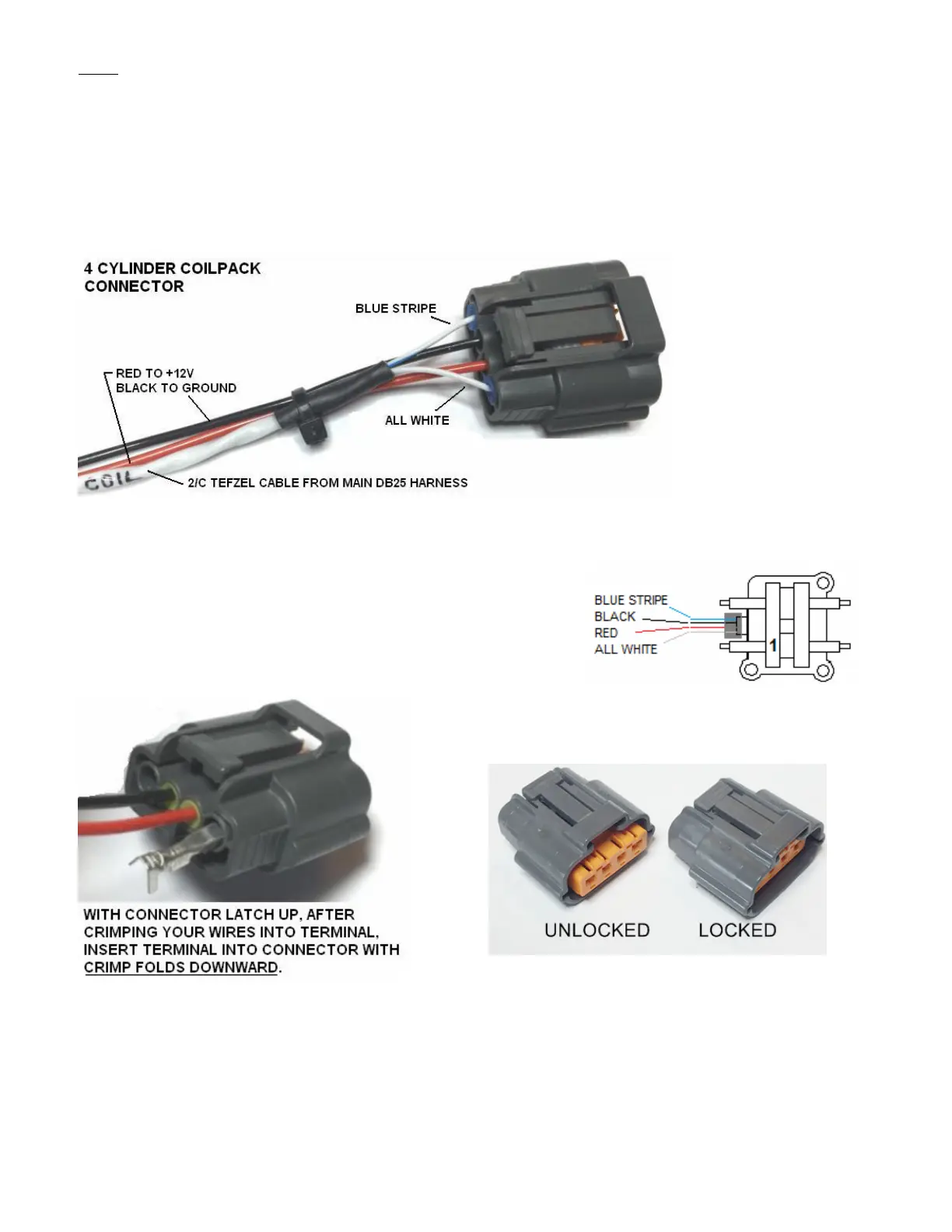

Photos of 4 Cylinder coilpack connector
To insert terminals into this connector make sure the orange retainer lock piece is outward(unlocked). If it
is inward(locked), then you cannot insert the terminals. It Orange retainer snaps out easily by prying on it
with a small screwdriver. With connector latch up, terminals insert with crimp folds downward see photo.
Once all terminals are installed then snap the orange retainer
inward and then the terminals are locked in place. If you need to
remove a wire/terminal then you can pry the orange piece
outward until it comes off completely, then you can access the
latches to pry upward with a small screwdriver to release the
terminal. No special extraction tool is required to extract these
terminals.
